Belimo | SKU: 01DT-5LP

01DT-5LP | Belimo | Temperature Sensors & Transmitters

Name: 01DT-5LP
Brand: Belimo
SKU: BEL-01DT5LP
Price: 21.61 USD
Availability: InStock

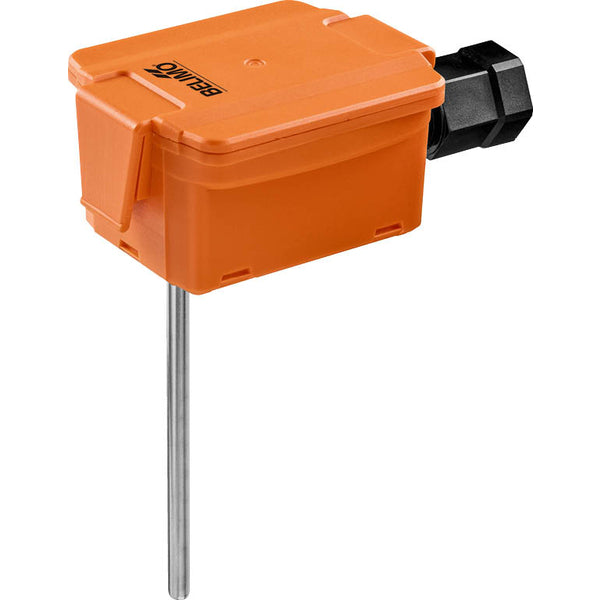

Duct/Immersion Temperature Sensor, Passive, NTC10k (10k2), 8 Inch (200MM) Probe Length, 0.24 Inch (6MM) Probe Diameter

$21.61 $48.00

Shipping calculated at checkout.

In stock (50 units)

Usually ships next day

FREE SHIPPING

Description

Name	Value
Ambient temperature	-35...50°C [-30...122°F]
Application	Duct Sensor
Category	Duct and Immersion
Connection type	Terminals
Data Sheet	Download
Installation Guide	Download
Electrical connection	Pluggable spring-loaded terminal block max
Enclosure nema rating	NEMA 4X
Enclosure type	NEMA 4X/IP65
Height	0.0
Humidity range	Maximum 95% RH, Non-Condensing
Inv mast uid	15552
Length	0.0
Measurement range	-60-300 Deg F.
Output signal	Resistance
Power source	Passive
Probe diameter	1/4 in
Probe length	8 in (200mm)
Probe material	AISI 316L
Product category	Temperature Sensors & Transmitters
Product subcategory	Immersion
Sensor type	10k Ohm Thermistor Type II
Series	Belimo
Short desc	Duct/Immersion Temperature Sensor, Passive, NTC10k (10k2), 8 Inch (200MM) Probe Length, 0.24 Inch (6MM) Probe Diameter
Supplier part number	01DT-5LP
Type	Duct Sensor
Variant weight	0.1
Width	0.0

{'Features_and_Benefits_1': 'Includes: Mounting Clip, Screws, Adhesive Foil, 1/2 Inch NPT Conduit Adapter'}
