ASI | SKU: 3-9540

3-9540 | ASI | BAS Controllers

Name: 3-9540
Brand: ASI
SKU: ASI-39540

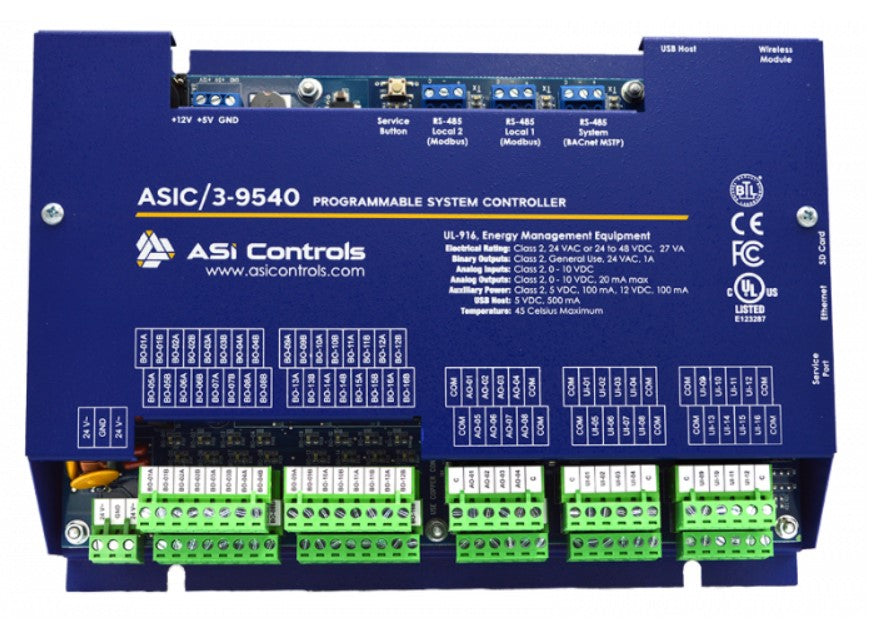

Supervisory Controller (BTL-Bbc), 40 I/O points: 16 universal inputs (0-10 VDC), 16 Form a relay and 8 Analog outputs (0-10 VDC), 3-9540

In stock (16 units)

Usually ships next day

FREE SHIPPING

Account approval required to view pricing and purchase this product

Request access

Already authorized? Sign in to your account.

Description

32-bit CPU, 8MB SDRAM + 4MB Flash memory, battery-backed calendar clock, 3 RS485 ports (System + 2 local buses), supports BACnet IP, BACnet MS/TP, Modbus RTU Master, ASI. 1xEthernet, 1xUSB port for FW upgrade, metal cover. Screw Terminals

Product Specifications

Name	Value
Category	BAS Controllers
Data Sheet	Download
Inv mast uid	244254
Product category	BAS Controllers
Product subcategory	Programmable Controllers
Short desc	Supervisory Controller (BTL-Bbc), 40 I/O points: 16 universal inputs (0-10 VDC), 16 Form a relay and 8 Analog outputs (0-10 VDC), 3-9540
Supplier part number	3-9540
Type	Programmable Controller
Variant weight	0.1

Features and Benefits

{'Features_and_Benefits_1': '100Mb Ethernet And Optional Wireless', 'Features_and_Benefits_2': 'Isolated Switching Power Supply for AC Or DC Operation', 'Features_and_Benefits_3': 'Alarming, Embedded Scheduling, PI Control Loops, Real Time Clock', 'Features_and_Benefits_4': 'BACnet IP With Routing Capabilities', 'Features_and_Benefits_5': 'Compatible With ASI IntelliFRONT And Niagara'}
