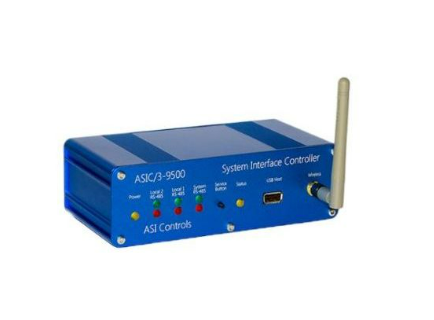

3-9500 | ASI | Network & Wireless

The 3-9500 provides access via USB Device Service port or 100 MB Ethernet, and three RS-485, 1/2 duplex balanced line communication buses. Red and green LEDs indicate receive and transmit status of the System and Local RS-485 communication busses. BACnet-MS/TP communication is supported up to 115,200 baud. RS-485 inputs and outputs are protected by 100 mA poly switches, 24 VAC power input is protected by a 1.35A polyswitch.
