A/CP-DO-6"-120"CL2P-QC | ACI | Temperature Sensors & Transmitters

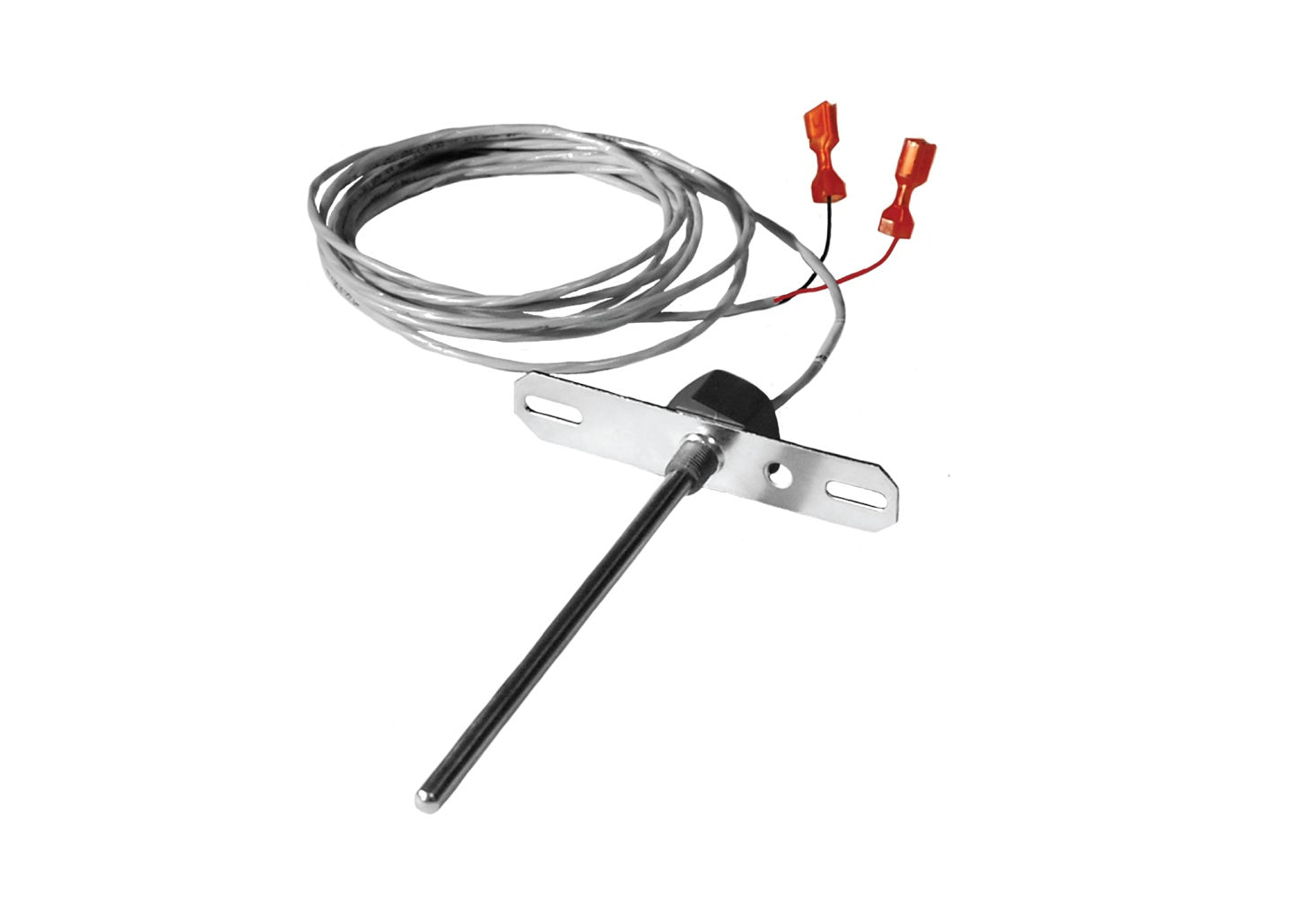

The ACI Thermistor Quick Connect Series features a 1/4" diameter stainless steel probe with a 2 conductor Plenum rated cable and 1/4 inch Female Insulated Spade Connectors (Quick Connects). The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors as well as increased thermal response times using our high quality, thermally conductive epoxy. The duct style sensor is a single point sensor designed to be used in smaller duct applications and includes an insulation pad for properly sealing your duct as well as to dampen vibration. For best results, the sensor length should be determined by the actual width or diameter of your duct such that the tip of the probe is in the approximate center of the duct. On larger ducts, you may want to refer to our Rigid or Bendable Copper Averaging sensor for increased sensing points and better temperature control. The Thermistor Quick Connect Series can be ordered with optional plenum rated cables, jacket materials and standard lead lengths. Please contact ACI for more information regarding this sensor or to discuss whether it will meet your specific requirements.
