ACI | SKU: A/CP-BP-10'CL2P

A/CP-BP-10'CL2P | ACI | Temperature Sensors & Transmitters

Name: A/CP-BP-10'CL2P
Brand: ACI
SKU: A/CP-BP-10'CL2P
Price: 41.73 USD
Availability: InStock

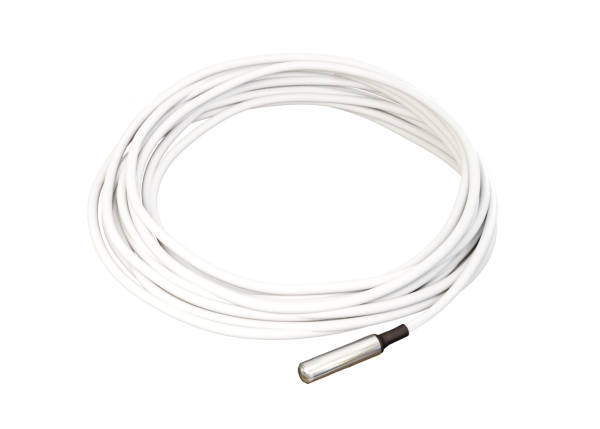

ACI 121947, Bullet Probe Temperature Sensor, 10 kOhm Thermistor (Type II), 1 Inch Stainless Steel Probe Length, 10 Foot Plenum Cable, A/CP-BP-10'CL2P

$41.73 $68.00

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The ACI Thermistor Bullet Probe Series features a 25.4 mm (1 in) stainless steel probe with two, 61 cm (24 in), 0.65 mm (22 AWG) Etched Teflon colored lead wires to differentiate the different NTC sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. The bullet style sensor is designed to monitor air temperatures and should not be fully submerged in water. This series can be ordered with different wire options and NIST certificates.

Product Specifications

Name	Value
Application	Bullet Probe
Cable length	10 Foot
Category	Duct and Immersion
Description	The ACI Thermistor Bullet Probe Series features a 25.4 mm (1 in) stainless steel probe with two, 61 cm (24 in), 0.65 mm (22 AWG) Etched Teflon colored lead wires to differentiate the different NTC sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. The bullet style sensor is designed to monitor air temperatures and should not be fully submerged in water. This series can be ordered with different wire options and NIST certificates.
Data Sheet	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Features and benefits	{'Features_and_Benefits_1': 'Applications: Roof Top Units, Discharge Air/Supply/Return/Mixed Air Duct Temperature, Remote Temperature Sensing'}
Humidity range	10 to 95% RH, Non-Condensing
Measurement range	-40 to 150 Deg C.
Mounting type	Well Mount
Output signal	Resistance
P21 delete flag	false
Probe length	1 Inch
Probe material	Stainless Steel 304
Product category	Temperature Sensors & Transmitters
Product subcategory	Strap On / Pipe
Restricted class id	NULL
Restricted item	false
Sensor type	10k Ohm Thermistor Type II
Series	ACI
Short desc	ACI 121947, Bullet Probe Temperature Sensor, 10 kOhm Thermistor (Type II), 1 Inch Stainless Steel Probe Length, 10 Foot Plenum Cable, A/CP-BP-10'CL2P
Sku	ACI-ACPBP10CL2P
Supplier part number	A/CP-BP-10'CL2P
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	true

Features and Benefits

{'Features_and_Benefits_1': 'Applications: Roof Top Units, Discharge Air/Supply/Return/Mixed Air Duct Temperature, Remote Temperature Sensing'}
