A/1K-3W-LT-BP-8' | ACI | Temperature Sensors & Transmitters

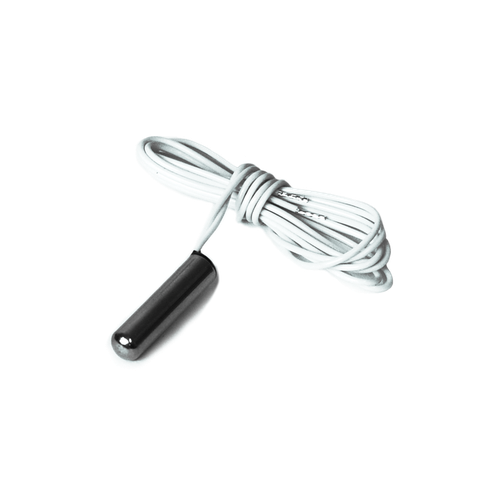

The ACI Platinum Bullet Probe Series features a one inch stainless steel probe with two or three, 61 cm (24 in), 0.65 mm (22 AWG) Etched Teflon colored lead wires to differentiate the different sensor types. For best results, ACI recommends the use of 1.02 mm (18 AWG) lead wires to reduce the external lead wire resistance when using a Platinum RTD. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the response time using our high quality, thermally conductive epoxy. The bullet style sensor is designed to be used to monitor air temperatures and should not be fully submerged in water.
