ACI | SKU: A/0.1CP-BP-10'CL2P

A/0.1CP-BP-10'CL2P | ACI | Temperature Sensors & Transmitters

Name: A/0.1CP-BP-10'CL2P
Brand: ACI
SKU: ACI-A01CPBP10CL2P
Price: 52.77 USD
Availability: InStock

150858, High Accuracy Bullet Probe Sensor, 10 kOhm Thermistor (Type II), 1 Inch Probe Length, 10 Foot Plenum Cable

$52.77 $86.00

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

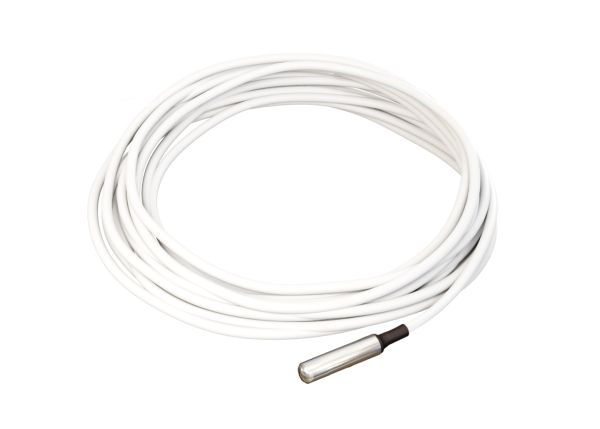

The ACI High Accuracy Thermistor Bullet Probe Series features a 25.4 mm (1 in) stainless steel probe with two, 61 cm (24 in) 0.65 mm (22 AWG) Etched Teflon colored lead wires to differentiate the sensor types. All sensors in this series are manufactured using ACI's proven double encapsulation process to eliminate the effects of moisture upon the sensors as well as to increase the thermal response times using our high quality, thermally conductive epoxy. The bullet style sensor is designed to monitor air temperatures and should not be fully submerged in water.

Product Specifications

Name	Value
Application	Bullet Probe
Cable length	10 Foot
Category	Duct and Immersion
Configuration	High Accuracy
Data Sheet	Download
Humidity range	10 to 95% RH, Non-Condensing
Inv mast uid	280125
Measurement range	0 to 70 Deg C.
Output signal	Resistance
Probe diameter	1/4 in
Probe length	1 in
Probe material	Stainless Steel 304
Product category	Temperature Sensors & Transmitters
Product subcategory	Immersion
Sensor type	10k Ohm Thermistor Type II
Series	ACI
Short desc	150858, High Accuracy Bullet Probe Sensor, 10 kOhm Thermistor (Type II), 1 Inch Probe Length, 10 Foot Plenum Cable
Supplier part number	A/0.1CP-BP-10'CL2P
Variant weight	0.1

Features and Benefits

{'Features_and_Benefits_1': 'Applications: Roof Top Units, Discharge Air/Supply/Return/Mixed Air Duct Temperature, Remote Temperature Sensing'}
