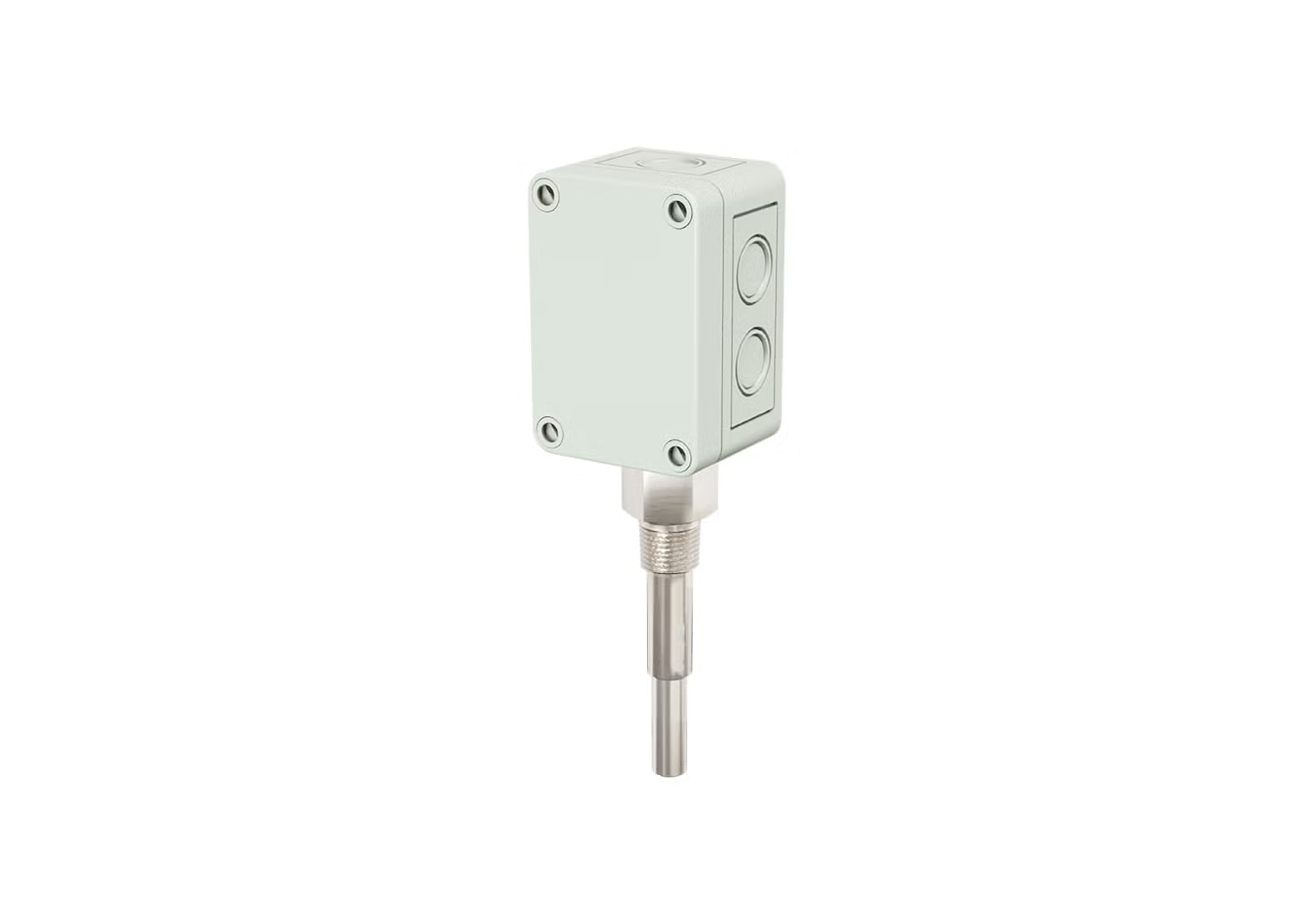

A/0.1AN-IM-4"-4X | ACI | Temperature Sensors & Transmitters

The ACI High accuracy Thermistor Immersion Series features a 1/4" diameter stainless steel probe with two, 14 inch 22 AWG Etched Teflon colored lead wires to differentiate the different sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. The immersion sensors come standard with a welded thermowell “-I” version but can be ordered without the welded thermowell “-INW” version. The “INW” version includes a standard ½” NPS (National Pipe Straight) Male process thread to be used with an optional machined thermowell or in an existing thermowell application.
