Honeywell | SKU: ML7984A4009/U

ML7984A4009/U | Honeywell | Control Valves & Actuators

Name: ML7984A4009/U
Brand: Honeywell
SKU: HWI-ML7984A4009U
Price: 471.39 USD
Availability: InStock

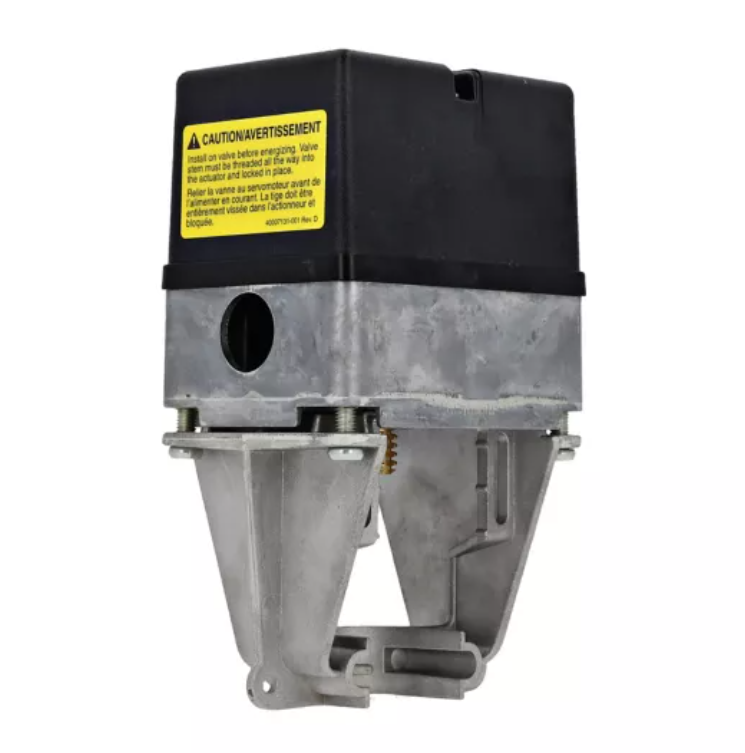

Honeywell, Linear Valve Actuator, Non-Spring Return, Modulating, 2-10 VDC, 4-20 mA, 135 Ohm, 24 VAC, 160 lbf, 710 N ML7984A4009/U

$471.39 $963.85

Shipping calculated at checkout.

In stock (88 units)

Usually ships next day

FREE SHIPPING

Description

The ML7984 is self-contained, self-adjusting, motorized valve actuators that mount directly onto V5011 two way and V5013 three-way globe valves, providing linear stem operation between 1/2 Inch (13mm) and 1 Inch (25mm). ML7984 is for use with Series 70 0-10 VDC, 2-10 VDC, 4-20 mA; electronic Series 90 "SuperMod"; and 135 ohm modulating controllers.

Product Specifications

Name	Value
Category	Valve
Control type	2 to 10 VDC, SuperMod, 135 Ohm Potentiometer; 4 to 20mA
Description	The ML7984 is self-contained, self-adjusting, motorized valve actuators that mount directly onto V5011 two way and V5013 three-way globe valves, providing linear stem operation between 1/2 Inch (13mm) and 1 Inch (25mm). ML7984 is for use with Series 70 0-10 VDC, 2-10 VDC, 4-20 mA; electronic Series 90 "SuperMod"; and 135 ohm modulating controllers.
Data Sheet	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Fail safe	Stays-In-Place
Features and benefits	{'Features_and_Benefits_1': 'Self-Contained, Motorized Globe Valve Linkage', 'Features_and_Benefits_10': 'Usable with Common Transformer Power Supply for Multiple Actuators and Controllers', 'Features_and_Benefits_2': 'Microprocessor-Based Digital Position Sensing and Motor Control for Accurate Positioning', 'Features_and_Benefits_3': 'Compact Size for Easy Installation in Confined Spaces', 'Features_and_Benefits_4': 'NEMA 3R Rain-Proof Cover for Outdoor Installation', 'Features_and_Benefits_5': 'Self-Calibrating for Valve Stroke from 1/2 Inch (13 Mm) to 1 Inch (25 Mm)', 'Features_and_Benefits_6': 'DIP Switch Input Configuration Selection', 'Features_and_Benefits_7': 'LED (Light-Emitting Diode) Status Indication', 'Features_and_Benefits_8': 'Configurable to 3-Wire Mode for Floating Models', 'Features_and_Benefits_9': '710 N 160 Lbf (712 N) Valve Closing Force'}
Most popular	Yes
P21 delete flag	false
Power supply	24 VAC
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Actuators
Restricted class id	NULL
Restricted item	false
Rotation	1/2 - 1 Inch Stroke (13 - 25mm)
Series	Honeywell
Short desc	Honeywell, Linear Valve Actuator, Non-Spring Return, Modulating, 2-10 VDC, 4-20 mA, 135 Ohm, 24 VAC, 160 lbf, 710 N ML7984A4009/U
Sku	HWI-ML7984A4009U
Supplier part number	ML7984A4009/U
Torque	160 in-lbs (710 Nm)
Type	Linear Electric Valve Actuator
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	Y
Yorkland id	ML7984A4009/U

Features and Benefits

{'Features_and_Benefits_1': 'Self-Contained, Motorized Globe Valve Linkage', 'Features_and_Benefits_10': 'Usable with Common Transformer Power Supply for Multiple Actuators and Controllers', 'Features_and_Benefits_2': 'Microprocessor-Based Digital Position Sensing and Motor Control for Accurate Positioning', 'Features_and_Benefits_3': 'Compact Size for Easy Installation in Confined Spaces', 'Features_and_Benefits_4': 'NEMA 3R Rain-Proof Cover for Outdoor Installation', 'Features_and_Benefits_5': 'Self-Calibrating for Valve Stroke from 1/2 Inch (13 Mm) to 1 Inch (25 Mm)', 'Features_and_Benefits_6': 'DIP Switch Input Configuration Selection', 'Features_and_Benefits_7': 'LED (Light-Emitting Diode) Status Indication', 'Features_and_Benefits_8': 'Configurable to 3-Wire Mode for Floating Models', 'Features_and_Benefits_9': '710 N 160 Lbf (712 N) Valve Closing Force'}
