Combustion & Flame Safety  | SKU: VR8300C4035/U

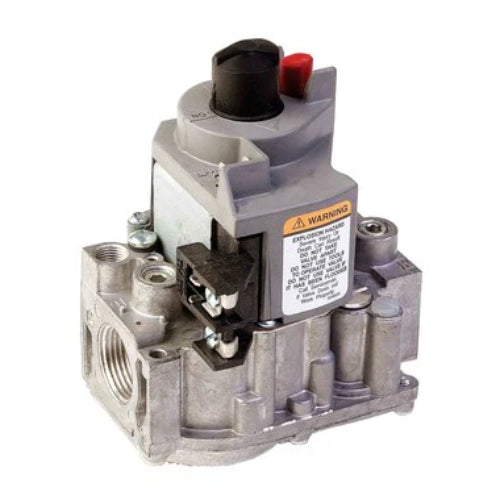

VR8300C4035/U | Resideo | Combustion & Flame Safety

Single Stage, 24 VAC, Step Opening, Dual Standing Pilot Gas Valve, 3/4 x 3/4 Inch, Step Rate 2.5 Inch WC, Full Rate 10 Inch WC
$574.43 $825.75
Shipping calculated at checkout.

VR8300C4035/U is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

Combination gas control for use in 24 VAC gas-fired, standing pilot appliances with capacities from 30 to 300 cf/Hour.

Product Specifications

Name Value
Capacity At 1 Inch WC p.d. - 200,000 BTU/Hour: 30,000 BTU/Hour Minimum
Category Gas Valves
Configuration Step Opening
Data Sheet Download
Enclosure nema rating 24 VAC 50/60 Hz
Height 0.0
Length 0.0
Pressure regulator setting Full Rate: 10 Inch WC; Step Setting: 2.5 Inch WC (Full Rate: 2.49 kPa; Step Setting: 0.62 kPa)
Product category Combustion & Flame Safety
Product subcategory Gas Valves & Actuators
Series Resideo
Short desc Single Stage, 24 VAC, Step Opening, Dual Standing Pilot Gas Valve, 3/4 x 3/4 Inch, Step Rate 2.5 Inch WC, Full Rate 10 Inch WC
Size 3/4 x 3/4 Inch
Supplier part number VR8300C4035/U
Type Standing Pilot Combination Gas Control
Variant weight 0.1
Width 0.0

Features and Benefits

{'Features_and_Benefits_1': 'Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure under Wide Fluctuations in Gas Supply Pressure', 'Features_and_Benefits_2': 'Compatible with ECO Connector', 'Features_and_Benefits_3': 'All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control', 'Features_and_Benefits_4': 'Meets Codes Requiring Dual Safety Shut-Off', 'Features_and_Benefits_5': 'Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat, Closes when Call for Heat Ends', 'Features_and_Benefits_6': 'Application: Single Stage', 'Features_and_Benefits_7': 'LITE-RITE (OFF-PILOT-ON) Lighting Sequence', 'Features_and_Benefits_8': 'Diaphragm-Operated Second Automatic Valve Opens Under Control of Regulator; Closes If Gas or Power Supply is Interrupted', 'Features_and_Benefits_9': 'Control Includes Safety Shutoff, Manual Valve, Two Automatic Operators, Pressure Regulator and Pilot Adjustment'}
