Combustion & Flame Safety | SKU: VR8215S1248T/U

VR8215S1248T/U | Resideo | Combustion & Flame Safety

Name: VR8215S1248T/U
Brand: Resideo
SKU: RES-VR8215S1248TU
Price: 167.00 USD
Availability: InStock

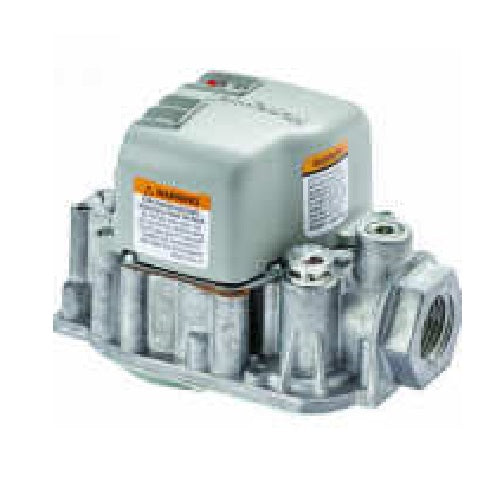

Single Stage, 24 VAC, Standard Opening, Dual Direct Ignition Gas Valve, 1/2 x 1/2 Inch, Setpoint 3.5 Inch WC

$167.00 $240.07

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

Combination gas controls for use with hot surface/direct spark systems in 24 VAC, gas-fired appliances with capacities from 30 to 415 cf/Hour. The VR8215 valve can be mounted in any orientation and the reduced installation turning radius makes it much easier to install.

Product Specifications

Name	Value
Capacity	At 1 Inch WC p.d. - 150,000 BTU/Hour: 15,000 BTU/Hour (Natural) Minimum, 200,000 BTU/Hour Maximum
Category	Gas Valves
Configuration	Single Stage, Standard Opening
Data Sheet	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Enclosure nema rating	24 VAC 50/60 Hz
Features and benefits	All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control \| ON-OFF Lighting Sequence \| Natural to LP and LP to Natural Conversion Kits Available for Standard and Slow Opening Gas Valves \| Meet Codes Requiring Dual Safety Shutoff \| Diaphragm Operated Second Automatic Valve Opens Under Control of the Regulator; Closes If Gas or Power Supply is Interrupted \| Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat; Closes when Call for Heat Ends \| Provide Two Automatic Valves that Function Independently, Allowing One to Act as a Failsafe for the Other \| Controls Include Manual Valve, Two Automatic Operators and Pressure Regulator
In_stock	false
P21 delete flag	false
Pressure regulator setting	3.5 Inch WC (0.87 kPa)
Product category	Combustion & Flame Safety
Product subcategory	Gas Valves & Actuators
Restricted class id	NULL
Restricted item	false
Series	Resideo
Short desc	Single Stage, 24 VAC, Standard Opening, Dual Direct Ignition Gas Valve, 1/2 x 1/2 Inch, Setpoint 3.5 Inch WC
Size	1/2 x 1/2 Inch
Strategic_value	0
Supplier part number	VR8215S1248T/U
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	Y

Features and Benefits

All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control | ON-OFF Lighting Sequence | Natural to LP and LP to Natural Conversion Kits Available for Standard and Slow Opening Gas Valves | Meet Codes Requiring Dual Safety Shutoff | Diaphragm Operated Second Automatic Valve Opens Under Control of the Regulator; Closes If Gas or Power Supply is Interrupted | Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat; Closes when Call for Heat Ends | Provide Two Automatic Valves that Function Independently, Allowing One to Act as a Failsafe for the Other | Controls Include Manual Valve, Two Automatic Operators and Pressure Regulator
