Data Center Products | SKU: 840-2220

840-2220 | Lumen Radio | Network & Wireless

Name: 840-2220
Brand: Lumen Radio
SKU: LUM-8402220
Price: 350.00 USD
Availability: InStock

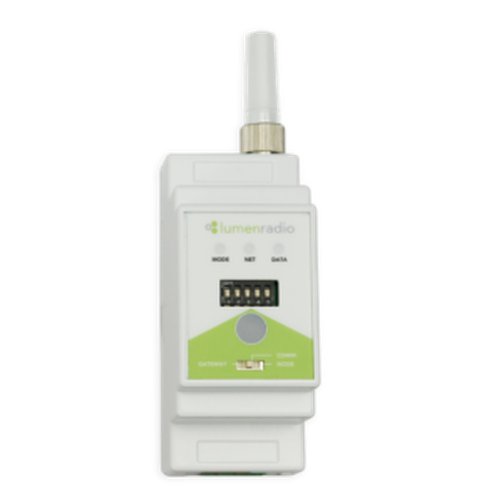

W-BACnet DIN rail, Wireless Mesh Router, BACnet MS/TP Connects 1 Device. DIN Rail Mounted

$350.00

Shipping calculated at checkout.

In stock (40 units)

Usually ships next day

FREE SHIPPING

Description

W-BACnet replaces the cabling with a reliable wireless mesh eliminating the time-consuming installation planning, cabling, daisy-chaining and troubleshooting. With W-BACnet, it is easy to retrofit connectivity to already installed devices, instantaneously converting individually siloed devices to a wireless network. The product enables flexibility, saving time and costs, including during installation and steady-state operation.

Product Specifications

Name	Value
Category	Network and Communication Devices
Communication protocol	W-BACnet MS/TP
Configuration	Connects: 1 Device
Data Sheet	Download
Power supply	24 VAC, 12-24 VDC
Product category	Network & Wireless
Product subcategory	Switches
Series	LumenRadio
Short desc	W-BACnet DIN rail, Wireless Mesh Router, BACnet MS/TP Connects 1 Device. DIN Rail Mounted
Supplier part number	840-2220
Type	Wireless Mesh Router
Variant weight	0.1

Features and Benefits

{'Features_and_Benefits_1': 'Modular configuration – no need for the same baud rate across all devices, W-BACnet supports individual settings.', 'Features_and_Benefits_2': 'Range – 700 meters (line-of-sight) per hop in the mesh network (approximately 50- 70 m indoors with walls)', 'Features_and_Benefits_3': 'Self-optimizing network – the mesh network will always find the best way to send messages through the network between devices.', 'Features_and_Benefits_4': 'Cognitive Coexistence – LumenRadio’s patented technology provides industrial-grade reliability and immunity to interference.', 'Features_and_Benefits_5': 'Mesh network - cover an entire building, utilizing the mesh network as your infrastructure.', 'Features_and_Benefits_6': 'Instant commissioning – 3 simple steps, commission the W-BACnet network in minutes.'}
