Belimo | SKU: TFB24-MFT-S

TFB24-MFT-S | Belimo | Dampers & Actuators

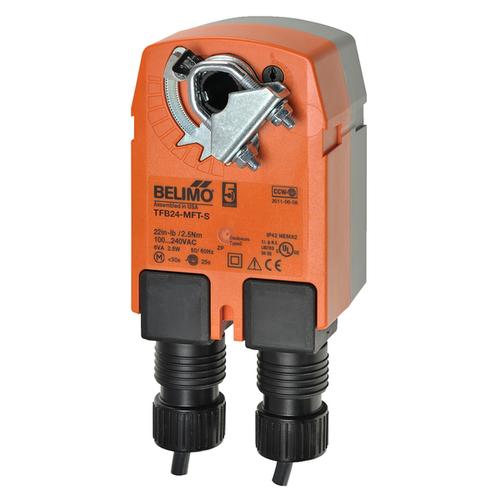

Name: TFB24-MFT-S
Brand: Belimo
SKU: BEL-TFB24MFTS
Price: 396.46 USD
Availability: InStock

Damper Actuator, 22 Inch-lb (2.5 Nm), Spring Return, AC/DC 24 V, 2...10 V, 1 x SPDT, MFT/programmable

$396.46 $881.00

Shipping calculated at checkout.

In stock (2 units)

Usually ships next day

FREE SHIPPING

Description

The upgraded TF Series meets challenges of smaller damper applications, up to 5.5 sq ft, so common in todayâ€™s HVAC systems and equipment, including rooftop units, fan shutters, unit ventilators, and fan coil units. Installers like its simplicity, while owners like its reliability

Product Specifications

Name	Value
Ambient temperature	-22...122°F [-30...50°C]
Category	Damper
Configuration	1 SPDT Aux Switch
Control input	Modulating (0–10V / 4–20mA / Configurable)
Control type	Modulating (0–10V / 4–20mA / Configurable)
Data Sheet	Download
Installation Guide	Download
Electrical connection	Cable
Enclosure nema rating	NEMA 2
Enclosure type	NEMA 2
Fail safe	Spring Return
Output signal	2...10 V
Power consumption holding	1 W
Power consumption running	2.5 W
Power source	24 VAC/VDC
Power supply	24 VAC/VDC
Product category	Dampers & Actuators
Product subcategory	Spring Return Damper Actuators
Rotation	Selectable with switch
Running time	150 Second
Running time fail safe	25 s
Shaft diameter	1/4...1/2" round, centers on 1/2"
Short desc	Damper Actuator, 22 Inch-lb (2.5 Nm), Spring Return, AC/DC 24 V, 2...10 V, 1 x SPDT, MFT/programmable
Supplier part number	TFB24-MFT-S
Torque	22 in-lbs
Type	Rotary Damper Actuator - Fail-Safe
Va rating	4 VA
Variant weight	1.8

Features and Benefits

{'Features_and_Benefits_1': 'Position Feedback: 2 to 10 VDC, 0.5 mA max, VDC variable', 'Features_and_Benefits_2': '(2) 3 ft, 18 GA appliance cables with 1/2" conduit connectors', 'Features_and_Benefits_3': '4 VA (class 2 power source)', 'Features_and_Benefits_4': 'TFB24-MFT-S'}
