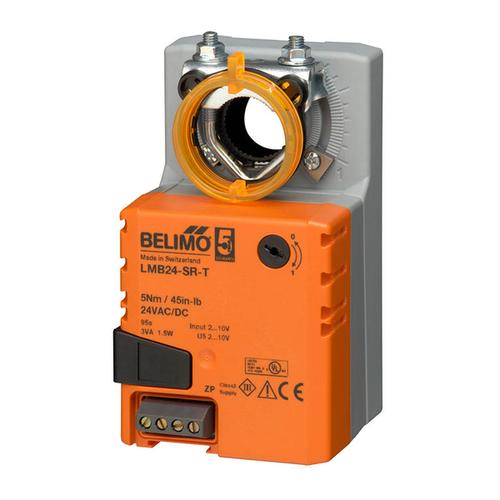

LMB24-SR-T | Belimo | Dampers & Actuators

The LMB24-SR-T actuator uses a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator €™s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode. The LMB series provides 95 degree of rotation and a visual indicator indicates position of the actuator and terminals for wire termination. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover.
