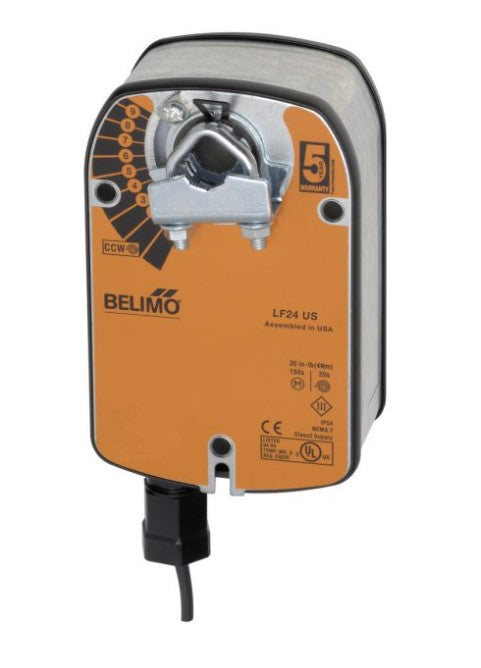

Belimo  | SKU: LF24 US

LF24 US | Belimo | Dampers & Actuators

Damper Actuator, 35 Inch-lb (4 Nm), Spring Return, AC/DC 24 V, On/Off
$261.46 $581.00
Shipping calculated at checkout.

Delivery

In stock (212 units)

Usually ships next day

FREE SHIPPING

Description

The LF24 US is a Spring return 24 V AC Damper Actuator. It has 35 in-lb of torque and is controlled with an On/Off signal. The angle of rotation is 95 degree and it has a running time of 75 seconds.

Product Specifications

Name Value
Ambient temperature -22...122°F [-30...50°C]
Category Damper
Control input On/Off
Control type On/Off
Data Sheet Download
Installation Guide Download
Electrical connection Cable
Enclosure nema rating NEMA 2
Enclosure type NEMA 2
Fail safe Spring Return
Power consumption holding 2.5 W
Power consumption running 5 W
Power source 24 VAC/VDC
Power supply 24 VAC/VDC
Product category Dampers & Actuators
Product subcategory Spring Return Damper Actuators
Rotation Reversible with cw/ccw mounting | 95 Deg
Running time Less Than 75 Second
Running time fail safe <25 s
Shaft diameter 3/8...1/2" round, centers on 1/2"
Short desc Damper Actuator, 35 Inch-lb (4 Nm), Spring Return, AC/DC 24 V, On/Off
Supplier part number LF24 US
Torque 35 in-lbs
Type Rotary Damper Actuator - Fail-Safe
Va rating 7 VA
Variant weight 3.8

Features and Benefits

{'Features_and_Benefits_1': '95 degree angle of rotation', 'Features_and_Benefits_2': '35 in-lb of torque', 'Features_and_Benefits_3': '3 ft, 18 GA appliance cable, 1/2" conduit connector', 'Features_and_Benefits_4': 'running time of 75 seconds', 'Features_and_Benefits_5': 'Spring return actuator'}
