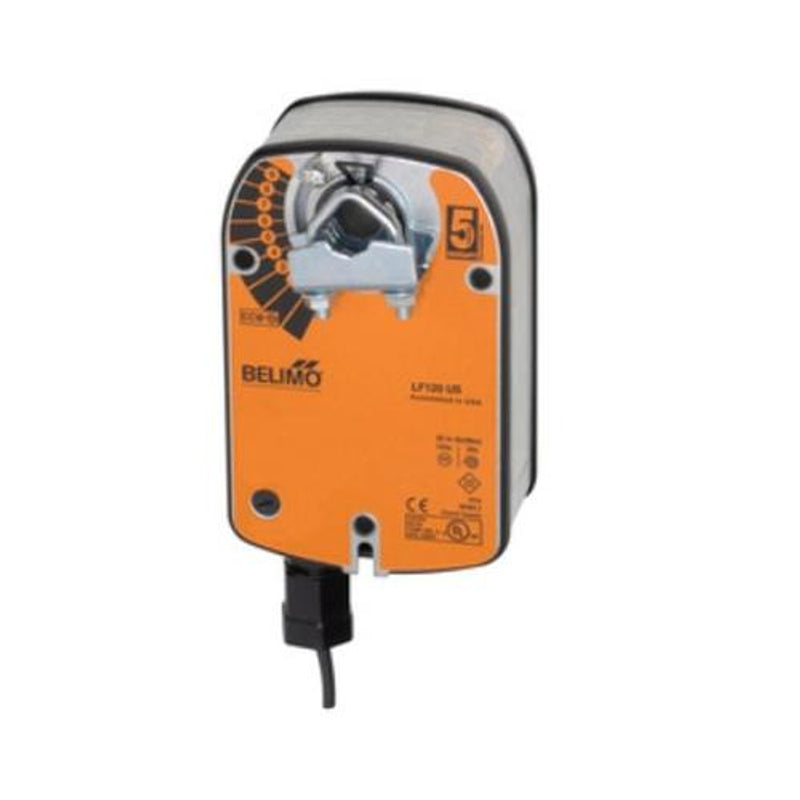

Belimo  | SKU: LF120 US

LF120 US | Belimo | Dampers & Actuators

Damper Actuator, 35 Inch-lb (4 Nm), Spring Return, AC 120 V, On/Off
$289.35 $643.00
Shipping calculated at checkout.

Delivery

In stock (93 units)

Usually ships next day

FREE SHIPPING

Description

The LF120 US is a Spring return 120 V AC Damper Actuator.It has 35 in-lb of torque and is controlled with an On/Off signal. The angle of rotation is 90 degree and it has a running time of 75 seconds.

Product Specifications

Name Value
Ambient temperature -22...122°F [-30...50°C]
Category Damper
Control input On/Off (2-Position)
Control type On/Off (2-Position)
Data Sheet Download
Installation Guide Download
Electrical connection Cable
Enclosure nema rating NEMA 2
Enclosure type NEMA 2
Fail safe Spring Return
Height 4.0
Length 9.0
Power consumption holding 3.5 W
Power consumption running 5.5 W
Power source 100...240 VAC
Power supply 120 VAC
Product category Dampers & Actuators
Product subcategory Spring Return Damper Actuators
Rotation Reversible with cw/ccw mounting
Running time MFT (20 to 300 Second)
Running time fail safe <25 s
Shaft diameter 3/8...1/2" round, centers on 1/2"
Short desc Damper Actuator, 35 Inch-lb (4 Nm), Spring Return, AC 120 V, On/Off
Supplier part number LF120 US
Torque 35 in-lbs
Type Rotary Damper Actuator - Fail-Safe
Va rating 6.5 VA
Variant weight 4.0
Width 4.0

Features and Benefits

{'Features_and_Benefits_1': 'Spring return actuator', 'Features_and_Benefits_2': '3 ft, 18 GA appliance cable, 1/2" conduit connector', 'Features_and_Benefits_3': '35 in-lb of torque', 'Features_and_Benefits_4': 'running time of 75 seconds', 'Features_and_Benefits_5': '90 degree angle of rotation'}
