BASRT-B | Contemporary Controls | Network & Wireless

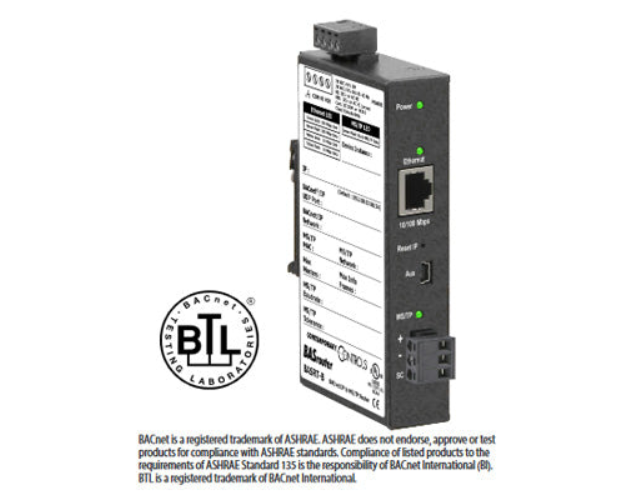

The BASrouter is a BTL Listed compact BACnet multi-network router which provides versatile stand-alone routing between BACnet/IP, BACnet Ethernet (ISO 8802-3), and BACnet MS/TP networks. The BACnet router is web page configurable and it is powered by 24 VAC/VDC. The BASrouter has a number of troubleshooting/diagnostic capabilities. The BACnet MS/TP ""Status"" webpage contains a graphical table of all of the MS/TP devices on the network and their status. Also provided are network statistics, in addition to a BACnet/IP ""Routing"" webpage with a discoverable routing table which is useful when setting up or troubleshooting a BACnet network. Wide temperature operation makes it suitable for indoor or outdoor use.
