SCE-47VR2414

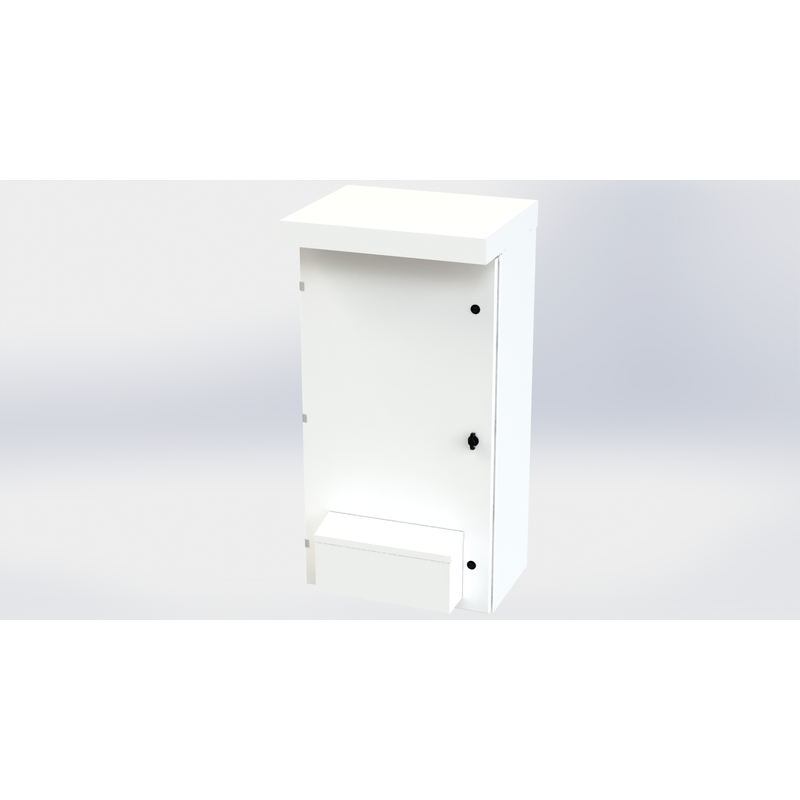

Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 47 Inch [H] x 24 Inch [W] x 14 Inch [D], White, Galvannealed Steel, SCE-47VR2414
Mfr. Model: SCE-47VR2414
Related Documents
Description
Saginaw, Metallic Enclosure, Concealed Hinge, 3R, 47 Inch [H] x 24 Inch [W] x 14 Inch [D], White, Galvannealed Steel, SCE-47VR2414
Designed to house electrical controls, drives, instruments and components used in an outdoor environment to provide a degree of protection for the equipment inside the enclosure against ingress of solid foreign objects [falling dirt]; and provide a degree of protection with respect to the harmful effects on the equipment due to the ingress of water [rain, sleet, snow].
Features & Benefits
- 0.075 Inch. Galvannealed Steel.
- Black Quarter Turn Latches and Padlock Wing Knob.
- Collar Studs 3/8-16 Provided for Mounting Optional Panels.
- Concealed Hinges.
- Din Rail Mounting Provisions Inside Top for Installation of Thermostat and Terminals.
- Doors Open 180 Degrees.
- Ground Studs on Door and Body.
- Mounting Holes for Optional Mounting Straps.
- Oil Resistant Gasket.
- 3/8-16 Grounding Kit.
Specifications
| Manufacturer | Saginaw Control and Engineering |
| Brand/Series | Saginaw Control and Engineering |
| MFR. Model | SCE-47VR2414 |
| Country of Origin | US |
| Color | White |
| Enclosure Depth | 14 Inch |
| Enclosure Height | 47 Inch |
| Enclosure Rating | IP 32, IEC 60529, 3R |
| Enclosure Width | 24 Inch |
| Finish | White powder coating inside and out. |
| Material | Galvannealed Steel |
| Mounting Type | Wall Mount |
