MS8109F1010/U

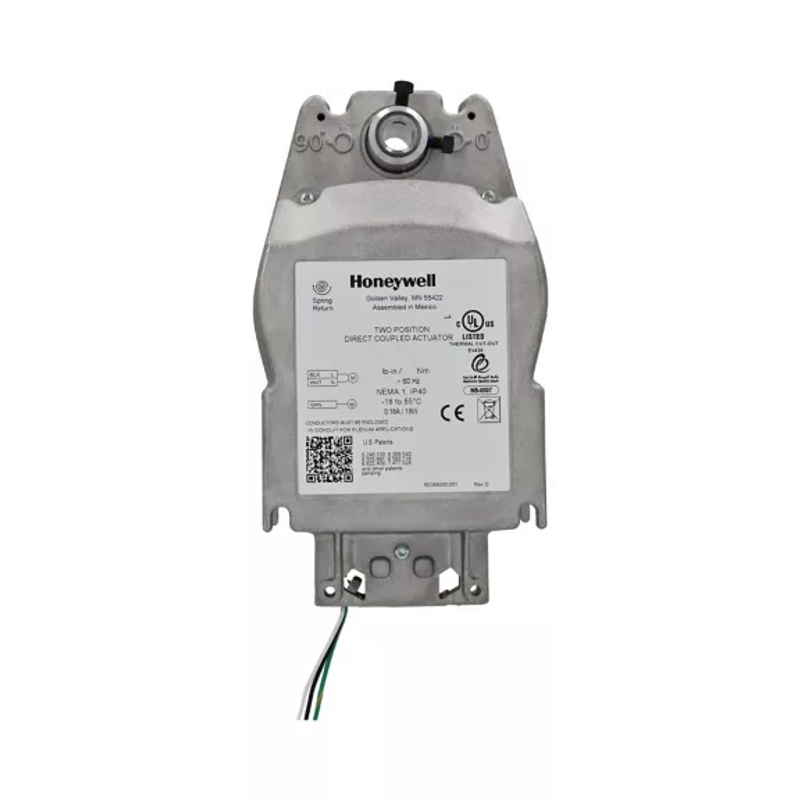

Honeywell, Fire and Smoke Actuator, Spring Return, 80 lbs-Inch, 24 VAC, 2-Position [SPST] MS8109F1010/U
Mfr. Model: MS8109F1010/U
Related Documents
Description
Honeywell, Fire and Smoke Actuator, Spring Return, 80 lbs-Inch, 24 VAC, 2-Position [SPST] MS8109F1010/U
The MS8109 Fast-Acting, Two-Position Actuators are spring return direct coupled actuators [DCA] for Fire and Smoke dampers [on/off control]. The actuator accepts an on/off signal from a single-pole, single-throw [SPST] controller. Reversible mounting allows actuator to be used for either clockwise [cw] or counterclockwise [ccw] spring rotation.
Features & Benefits
- Reversible Mounting Facilitates Use in either Clockwise [cw] or Counter Clockwise [ccw] Spring Rotation
- Integral Spring Return Ensures Level of Return Torque
- 15-Second Spring Return Timing
- No Special Cycling Required During Long-Term Holding
- No Audible Noise During Holding
- Actuator Holds Rated Torque at Reduced Power Level
- Die-Cast Aluminum Housing
- Housing Design Allows Flush Mounting to Damper
- Certifications: Designed to Operate Reliably in Smoke Control Systems Requiring Underwriter's Laboratories Inc UL555S Ratings up to 350 deg F; Non-UL Marked Models Available
- Certifications: Designed to Operate Reliably in Smoke Control Systems Requiring Underwriter's Laboratories Inc UL555S Ratings up to 350 deg F; Non-UL Marked Models Available
Specifications
| Manufacturer | Honeywell |
| MFR. Model | MS8109F1010/U |
| Angle of Rotation | 95 Deg |
| Configuration | No Aux Switches |
| Control Type | On/Off [2-Position] |
| Enclosure Type | NEMA 1 |
| Fail Safe | Spring Return |
| Power Supply | 24 VAC |
| Running Time [Motor] | 15 Second |
| Torque | 80 in-lbs |
| Type | Rotary Damper Actuator - Fail-Safe |
