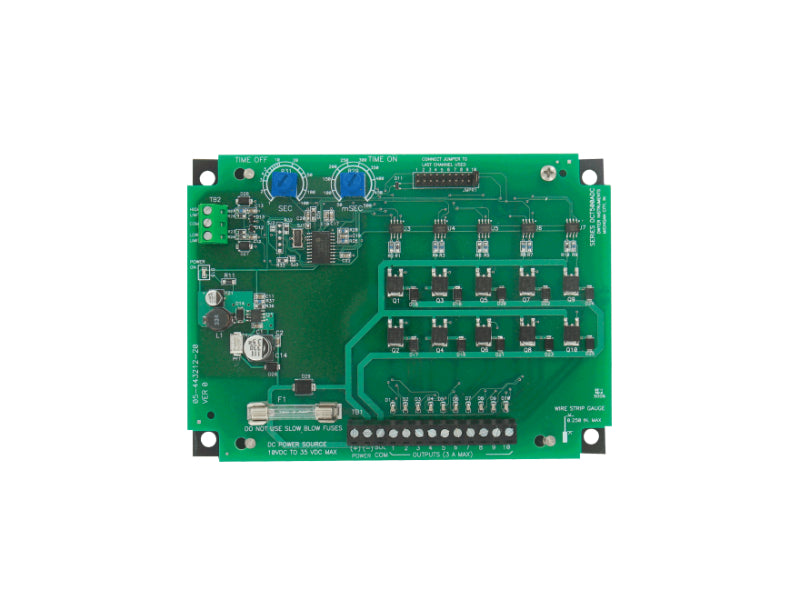

DCT510ADC | Dwyer | Tools & Test Equipment

Ideal for pneumatic conveying systems, the Series DCT500ADC Low Cost Timer Controller is designed to provide continuous or on-demand cleaning for 10-35 volt powered receivers and pulse jet systems. Available in either 4, 6 or 10 channels, each unit is the same size, minimizing enclosure space and reducing overall system installation cost. The DCT500ADC is simple and easy to use. Time-On and Time-Off settings are selected using two potentiometers. High Limit and Low Limit control inputs are provided for use with on demand systems. For added safety, the control circuitry including the control inputs are isolated from the line voltage. To meet your system requirements, an optional weatherproof enclosure is available. For on demand systems, a Dwyer Series A3000 Photohelic gage or Series 1800 Pressure Switch may be used with the DCT500ADC.
