Temperature Sensors & Transmitters | SKU: RHP-2O22

RHP-2O22 | Dwyer | Temperature Sensors & Transmitters

Name: RHP-2O22
Brand: Dwyer
SKU: RHP-2O22
Price: 241.25 USD
Availability: InStock

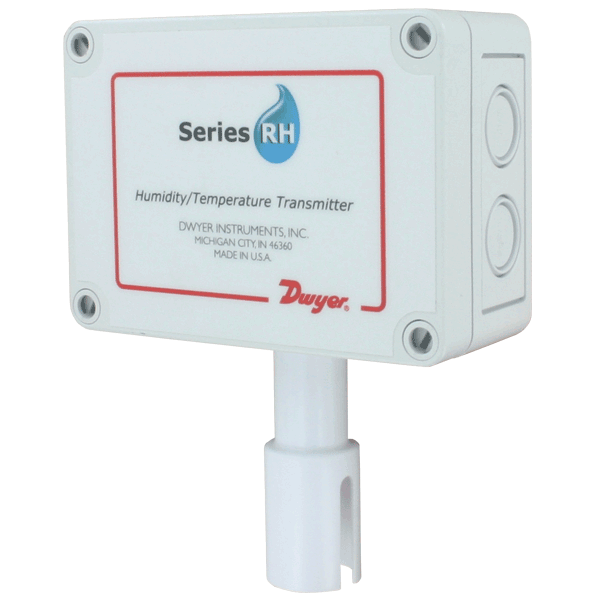

Dwyer OSA Mount 2 Percentage RH/Temperature Transmitter with 0-10 VDC RH Output and 0-10 VDC Temperature Output RHP-2O22

$241.25

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The Series RHP Humidity and Temperature Transmitter combine the voltage or current humidity transmitter output with a passive temperature thermistor or RTD output. Featuring polymer capacitance humidity sensors, models are available in 2 Percentage, 3 Percentage or 5 Percentage accuracies. Duct mounted transmitters are available with an optional two-line alpha numeric LCD display.

Product Specifications

Name	Value
Application	Humidity Temperature Transmitters
Category	Dwyer
Data Sheet	Download
Installation Guide	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Features and benefits	Accuracy, RTD Temp Sensor: DIN Class B; ±0.3 deg C @ 0 deg C (±0.54 deg F @ 32 deg F) \| Accuracy, RH: RHP-2XXX ±2 Percentage 10 to 90 Percentage RH @ 25 deg C \| Accuracy, Thermistor Temp Sensor: ±0.2 deg C @ 25 deg C (±0.36 deg F @ 77 deg F) \| Relative Humidity Range: 0 to 100 Percentage RH \| Application: Air Economizers, Outdoor Temperature and Relative Humidity Reference, Pool Room Humidity Monitoring \| Reduced System Operating Costs with Radiation Shield Protecting the Sensor From Radiant Heat \| Temperature Range: -40 to 140 deg F (-40 to 60 deg C) \| Wide Application Environment From a Large Selection of Temperature Sensors and 2 Percentage, 3 Percentage and 5 Percentage Accuracies \| Accuracy, Solid State Band Gap: ±0.9 deg F @ 77 deg F (±0.5 deg C @ 25 deg C)
P21 delete flag	false
Product category	Temperature Sensors & Transmitters
Product subcategory	Outdoor
Restricted class id	NULL
Restricted item	false
Short desc	Dwyer OSA Mount 2 Percentage RH/Temperature Transmitter with 0-10 VDC RH Output and 0-10 VDC Temperature Output RHP-2O22
Supplier part number	RHP-2O22
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	true

Features and Benefits

Accuracy, RTD Temp Sensor: DIN Class B; ±0.3 deg C @ 0 deg C (±0.54 deg F @ 32 deg F) | Accuracy, RH: RHP-2XXX ±2 Percentage 10 to 90 Percentage RH @ 25 deg C | Accuracy, Thermistor Temp Sensor: ±0.2 deg C @ 25 deg C (±0.36 deg F @ 77 deg F) | Relative Humidity Range: 0 to 100 Percentage RH | Application: Air Economizers, Outdoor Temperature and Relative Humidity Reference, Pool Room Humidity Monitoring | Reduced System Operating Costs with Radiation Shield Protecting the Sensor From Radiant Heat | Temperature Range: -40 to 140 deg F (-40 to 60 deg C) | Wide Application Environment From a Large Selection of Temperature Sensors and 2 Percentage, 3 Percentage and 5 Percentage Accuracies | Accuracy, Solid State Band Gap: ±0.9 deg F @ 77 deg F (±0.5 deg C @ 25 deg C)
