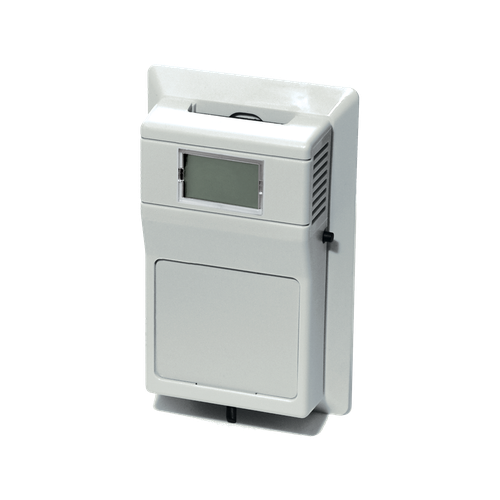

A/LCD-RSO-420 | ACI | Temperature Sensors & Transmitters

The A/LCD-R-4-20MA is a low power, high accuracy, 3.5 digit LCD display module that is available in an attractive wall mount enclosure. The A/LCD-R-4-20MA may be used with any 4 to 20 mA loop powered Temperature, Relative Humidity, Current, and Differential or Gage Pressure transmitter. The display can be calibrated for any range between (-) 1999 and 1999 and has factory set descriptors which include C, F, and a decimal point. A great solution for remote monitoring of any 4-20 mA loop powered device, these units are designed to be mounted over a single gang junction box or hole in the wall using drywall anchors. Screw terminal blocks are available for making all connections to your building management system (network). An optional 1/8” Black foam pad with pressure sensitive adhesive is available to insulate the sensor from thermal drafts within the wall or wall surface. A 1/16” Hex driver is needed to secure the cover from being easily removed.
