A/1K-2W-R2S-A10-C5 | ACI | Temperature Sensors & Transmitters

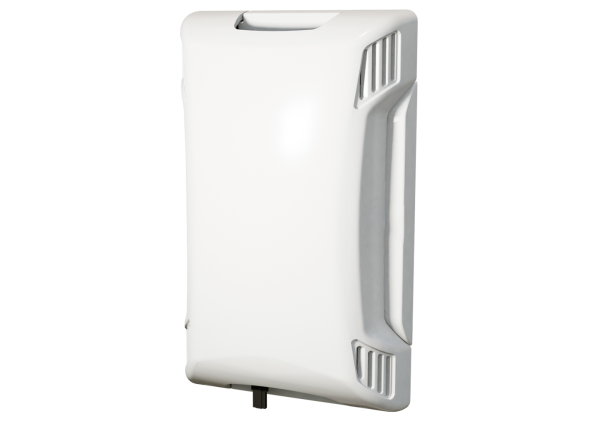

The ACI Platinum Room Series combines flexibility with attractive styling in our R2 or R style enclosures which include four-way air flow design to minimize self-heating to the sensor. These enclosures are offered in a White R2 or Beige R color depending on enclosure style and designed to be mounted over a single gang junction box or hole in the wall using drywall anchors. An optional LCD Display is available in the Beige “-R” style enclosure. Screw terminal blocks are provided for making connections to your building management system. An optional 3.175 mm (1/8 in) Black foam pad with pressure sensitive adhesive is available to insulate the sensor from thermal drafts within the wall or wall surface temperature. A 1/16 in Hex driver can be used to secure the cover from being easily removed. The LCD option uses two temperature sensors to monitor the ambient air temperature in the space and is factory calibrated at a single point.
