A/0.1CP-R | ACI | Temperature Sensors & Transmitters

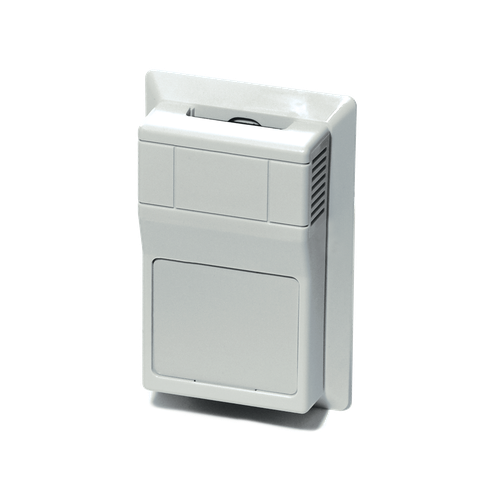

The ACI High Accuracy Thermistor Room Series combines option flexibility with attractive styling in our “-R2” or “-R” style enclosures which both include Four-way air flow design to minimize the amount of self-heating to the sensor. Enclosures are offered in a White “-R2” or Beige “-R” color and are designed to be mounted over a single gang junction box or hole in the wall with the use of drywall anchors. Screw terminal blocks are available for making all connections to the temperature sensor, Set Point, “After Hours” Override, and Communication Jacks for easy access to your building management system (network). An optional 3.175 mm (1/8 in) Black foam pad with pressure sensitive adhesive are available to insulate the sensor from thermal drafts from within the wall or wall surface. The enclosure covers are secured using a 1/16 in Hex driver to secure the cover from being easily removed. An optional company logo is available for an additional charge and must be ordered as a separate line item underneath the Thermistor Room Series model number.
