Pressure | SKU: PHX07S

PHX07S | Veris Industries | Pressure

Name: PHX07S
Brand: Veris Industries
SKU: PHX07S
Price: 712.27 USD
Availability: InStock

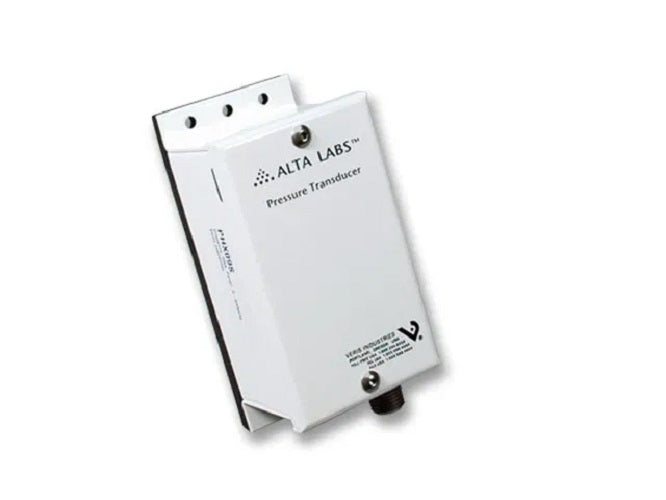

Veris, PH Series Static Pressure Transducer, 1 Percentage Accuracy Digitally Controlled Gauge, 0 to 100 PSIG PHX07S

$712.27 $1,632.15

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The PH Series Pressure Transducers are Designed for Steam, Air, Gas and Liquid Pressure Measurement in All Media Compatible with 17-4PH N8 Stainless Steel. They Utilize a Microprocessor Controlled Sensor Profiled for Exceptional Accuracy and Reliability. All Models Feature Three Switch Selectable Ranges and a Test Mode to Verify Wiring and Panel Input Scaling. A Pushbutton and Digital Input Terminal is Used to Automatically Zero the Output, and The Microprocessor Guards Against Accidental Zero Adjustment During Operation. Jumper Controlled Surge Damping is Provided on All Models to Reduce False Alarms.

Product Specifications

Name	Value
Category	Pressure Gauges
Configuration	4 to 20mA/0-5 V/0-10 V Output
Connection type	Screw Terminal
Description	The PH Series Pressure Transducers are Designed for Steam, Air, Gas and Liquid Pressure Measurement in All Media Compatible with 17-4PH N8 Stainless Steel. They Utilize a Microprocessor Controlled Sensor Profiled for Exceptional Accuracy and Reliability. All Models Feature Three Switch Selectable Ranges and a Test Mode to Verify Wiring and Panel Input Scaling. A Pushbutton and Digital Input Terminal is Used to Automatically Zero the Output, and The Microprocessor Guards Against Accidental Zero Adjustment During Operation. Jumper Controlled Surge Damping is Provided on All Models to Reduce False Alarms.
Data Sheet	Download
Display name 1	Data Sheet
Features and benefits	{'Features_and_Benefits_1': 'Micromachined Silicon Sensor Design, Improves Overpressure Capacity and Reduces Failures, Electronic Surge Damping for High Stability', 'Features_and_Benefits_10': 'Dimension - 2.2 H x 5.1 H x 2.5 W inch, 24 VAC Supply Voltage, 5 Years Warranty', 'Features_and_Benefits_2': 'Pushbutton Zero Calibration, No Trim Pots to Adjust, Saves Installation Time, Pushbutton and Remote Zero Adjustment, Maintain Accuracy and Prevent Callbacks with Automatic Zero Calibration', 'Features_and_Benefits_3': 'Microprocessor Controlled Signal Conditioning, Electronic, 5 s Averaging Surge Damping, Overrides Output to Full Scale (20 mA, 5 V, 10 V) Test Mode', 'Features_and_Benefits_4': 'Pushbutton Auto-Zero and Digital Input (2-Position Terminal Block) Zero Adjust, Dual Color LED - Green = Normal, Red = Over Range, Flashing Red = Fault', 'Features_and_Benefits_5': 'Media Compatible with 17 to 4 PH Stainless Steel, Maximum 2x Full Scale Range Proof Pressure, Maximum 5x Full Scale Range Burst Pressure, 17 to 4 PH Stainless Fittings, 25/50/100 PSIG Switch Selectable', 'Features_and_Benefits_6': 'Application Zone - Plant Room, Application - Pump and Compressor Monitoring, Gas Pressure, Energy and Water Management, Refrigerant Equipment Monitoring', 'Features_and_Benefits_7': 'Burst Pressure - 500 PSIG (34 Bar), No Calibration Certificate, Electrical Wiring - 3-Wire, Enclosure Material - Powder Coated Steel', 'Features_and_Benefits_8': 'Fitting Material - Stainless Steel, 1/4 Inch NPT Fitting Size, Male Fitting Type, Gauge Pressure Measurement, Medium - Water', 'Features_and_Benefits_9': 'Panel Mount, 0 - 90 Percentage RH, Non-Condensing Operating Humidity, 14 - 130 deg F (-10 - 55 deg C) Operating Temperature, 4 - 20 mA, 0 - 5 V, 0 - 10 V Analog Output'}
P21 delete flag	false
Pressure range	0 to 100 PSI (0 - 7 Bar)
Product category	Pressure
Product subcategory	Pressure Gauges
Restricted class id	NULL
Restricted item	false
Series	PH Series
Short desc	Veris, PH Series Static Pressure Transducer, 1 Percentage Accuracy Digitally Controlled Gauge, 0 to 100 PSIG PHX07S
Sku	SCH-PHX07S
Supplier part number	PHX07S
Type	Pressure Transducer
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	true

Features and Benefits

{'Features_and_Benefits_1': 'Micromachined Silicon Sensor Design, Improves Overpressure Capacity and Reduces Failures, Electronic Surge Damping for High Stability', 'Features_and_Benefits_10': 'Dimension - 2.2 H x 5.1 H x 2.5 W inch, 24 VAC Supply Voltage, 5 Years Warranty', 'Features_and_Benefits_2': 'Pushbutton Zero Calibration, No Trim Pots to Adjust, Saves Installation Time, Pushbutton and Remote Zero Adjustment, Maintain Accuracy and Prevent Callbacks with Automatic Zero Calibration', 'Features_and_Benefits_3': 'Microprocessor Controlled Signal Conditioning, Electronic, 5 s Averaging Surge Damping, Overrides Output to Full Scale (20 mA, 5 V, 10 V) Test Mode', 'Features_and_Benefits_4': 'Pushbutton Auto-Zero and Digital Input (2-Position Terminal Block) Zero Adjust, Dual Color LED - Green = Normal, Red = Over Range, Flashing Red = Fault', 'Features_and_Benefits_5': 'Media Compatible with 17 to 4 PH Stainless Steel, Maximum 2x Full Scale Range Proof Pressure, Maximum 5x Full Scale Range Burst Pressure, 17 to 4 PH Stainless Fittings, 25/50/100 PSIG Switch Selectable', 'Features_and_Benefits_6': 'Application Zone - Plant Room, Application - Pump and Compressor Monitoring, Gas Pressure, Energy and Water Management, Refrigerant Equipment Monitoring', 'Features_and_Benefits_7': 'Burst Pressure - 500 PSIG (34 Bar), No Calibration Certificate, Electrical Wiring - 3-Wire, Enclosure Material - Powder Coated Steel', 'Features_and_Benefits_8': 'Fitting Material - Stainless Steel, 1/4 Inch NPT Fitting Size, Male Fitting Type, Gauge Pressure Measurement, Medium - Water', 'Features_and_Benefits_9': 'Panel Mount, 0 - 90 Percentage RH, Non-Condensing Operating Humidity, 14 - 130 deg F (-10 - 55 deg C) Operating Temperature, 4 - 20 mA, 0 - 5 V, 0 - 10 V Analog Output'}
