Pressure | SKU: 685-08

685-08 | Dwyer | Pressure

Name: 685-08
Brand: Dwyer
SKU: 685-08
Price: 196.93 USD
Availability: InStock

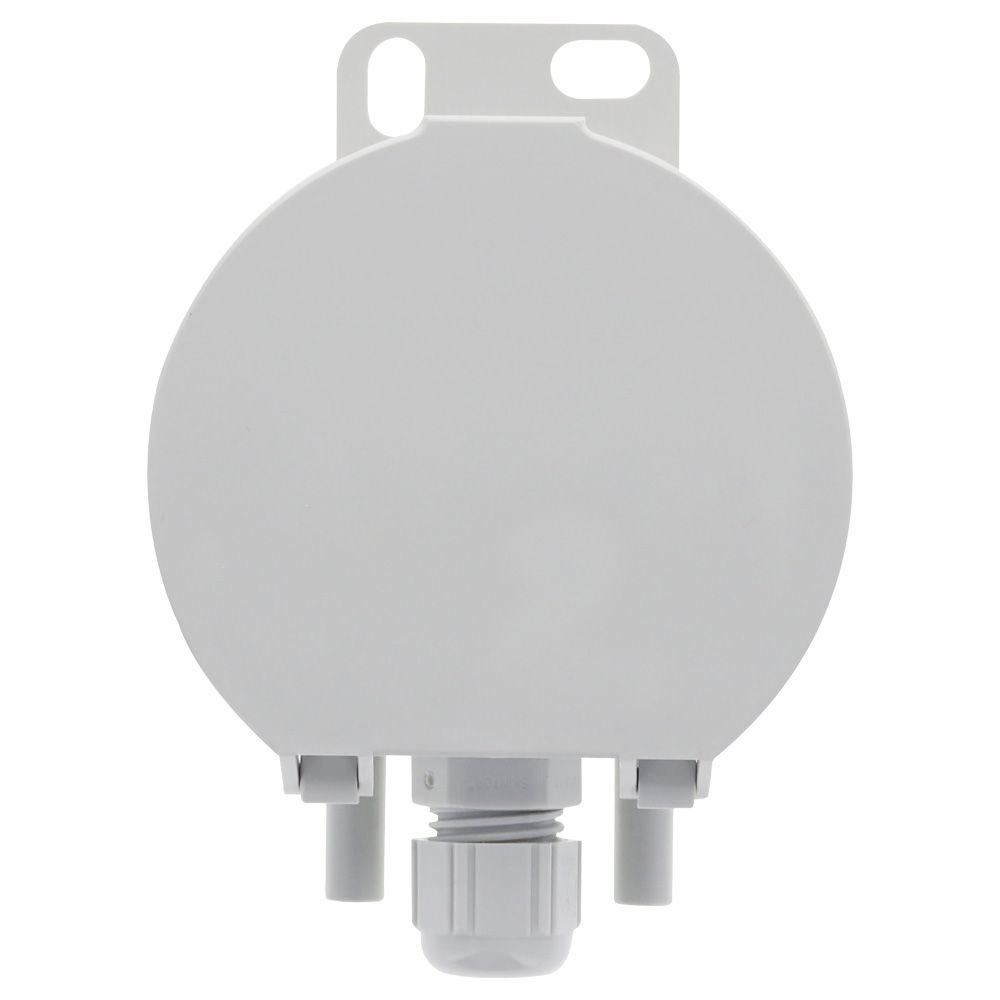

Dwyer, Differential Pressure Transmitter, 0-40 Inch w.c., 4-20mA Output 685-08

$196.93

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The Series 685 Differential Pressure Transmitter is used to measure differential pressure and vacuum. The adjustable pressure range and output signal make it the ideal choice for installers and maintenance professionals. It has a user-configurable response time via a jumper and can be mounted in any orientation. Applications include building automation systems, clean room monitoring, valve and flap control, filter monitoring, and air flow control. It has an adjustable pressure range, a single button to zero, and can be reset to factory settings with a long button press. No additional reference pressure sources or separate calibration devices are necessary.

Product Specifications

Name	Value
Accuracy	Less Than or Equal +/- 0.5% RSS
Category	Pressure
Data Sheet	Download
Installation Guide	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Display type	No Display
Features and benefits	Sensor Type: Piezoresistive Pressure Sensor \| Service: Air and Non-Corrosive Gases \| Application: Building Automation, Air-Conditioning and Clean Room Technology, Valve and Shutter Control, Filter, Ventilator and Fan Monitoring, Air-Flow Control \| Factory Restore to Defaults with a Long Button Press \| Single Button to Zero Saves Maintenance Time \| Long-Term Stability: ? ±1 Percentage RSS Per Year \| User-Adjustable Response Time Provides Versatility for Many Applications \| Supply Voltage: 2-Wire: 18-30 VDC \| Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key
Mount type	Surface Mount
Output	4 to 20 mA
P21 delete flag	false
Product category	Pressure
Product subcategory	Dry Differential Pressure Transmitters
Range	0-40 Inch w.c.
Restricted class id	NULL
Restricted item	false
Series	Dwyer
Short desc	Dwyer, Differential Pressure Transmitter, 0-40 Inch w.c., 4-20mA Output 685-08
Supplier part number	685-08
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	true

Features and Benefits

Sensor Type: Piezoresistive Pressure Sensor | Service: Air and Non-Corrosive Gases | Application: Building Automation, Air-Conditioning and Clean Room Technology, Valve and Shutter Control, Filter, Ventilator and Fan Monitoring, Air-Flow Control | Factory Restore to Defaults with a Long Button Press | Single Button to Zero Saves Maintenance Time | Long-Term Stability: ? ±1 Percentage RSS Per Year | User-Adjustable Response Time Provides Versatility for Many Applications | Supply Voltage: 2-Wire: 18-30 VDC | Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key
