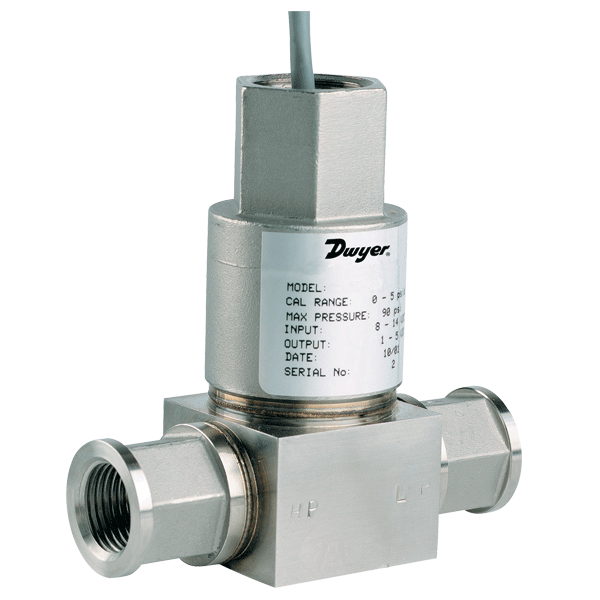

Dwyer, Fixed Range Differential Pressure Transmitter, Range 0-15 psid 636D-1

$3,665.42

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

Series 636D Differential Pressure Transmitter can be used for measuring pressures of liquids, gases and vapors. All available ranges have an excellent 0.5 Percentage F.S. accuracy with a 4-20 mA Output standard or optional 1-5 VDC output. The NEMA 4 housing is an all 316 welded construction that is designed to withstand the harshest environmental conditions. With all 316L wetted materials, this transmitter is compatible with most media. These units are CSA approved explosion-proof for use in specified hazardous locations.

Product Specifications

Name	Value
Accuracy	+/-5% F.S.
Category	Pressure
Data Sheet	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Display type	No Display
Features and benefits	Stability: ±1.0 Percentage F.S./Year \| Pressure Limits: 3 x Full Scale Differential Pressure; Burst: 2500 psig \| Wetted Materials: Types 316L SS \| Service: Compatible Gases, Liquids or Vapors \| Versatile, High-Accuracy Device for Liquid or Gas Supports Designs Requiring More Precise Measurements in Support of Application \| Explosion-Proof Device for Use in Hazardous Areas \| Application: Monitoring Differential Pressure for; Level Measurements in Non-Vented Liquid Tanks, Filtration Systems, Compressor Control, Process Control \| Power Requirements: 12-30 VDC for 4-20 mA Outputs with Reverse Polarity Protection \| NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Mount type	Process Connection
Output	4 to 20 mA
P21 delete flag	false
Product category	Pressure
Product subcategory	Dry Differential Pressure Transmitters
Range	0-15 psid
Restricted class id	NULL
Restricted item	false
Series	Dwyer
Short desc	Dwyer, Fixed Range Differential Pressure Transmitter, Range 0-15 psid 636D-1
Supplier part number	636D-1
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	true
Yorkland id	636D-1

Features and Benefits

Stability: ±1.0 Percentage F.S./Year | Pressure Limits: 3 x Full Scale Differential Pressure; Burst: 2500 psig | Wetted Materials: Types 316L SS | Service: Compatible Gases, Liquids or Vapors | Versatile, High-Accuracy Device for Liquid or Gas Supports Designs Requiring More Precise Measurements in Support of Application | Explosion-Proof Device for Use in Hazardous Areas | Application: Monitoring Differential Pressure for; Level Measurements in Non-Vented Liquid Tanks, Filtration Systems, Compressor Control, Process Control | Power Requirements: 12-30 VDC for 4-20 mA Outputs with Reverse Polarity Protection | NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
