Pressure | SKU: GP(0-100G)-20-P

GP(0-100G)-20-P

Name: GP(0-100G)-20-P
Brand: ACI
SKU: ACI-GP0100G20P
Price: 352.61 USD
Availability: InStock

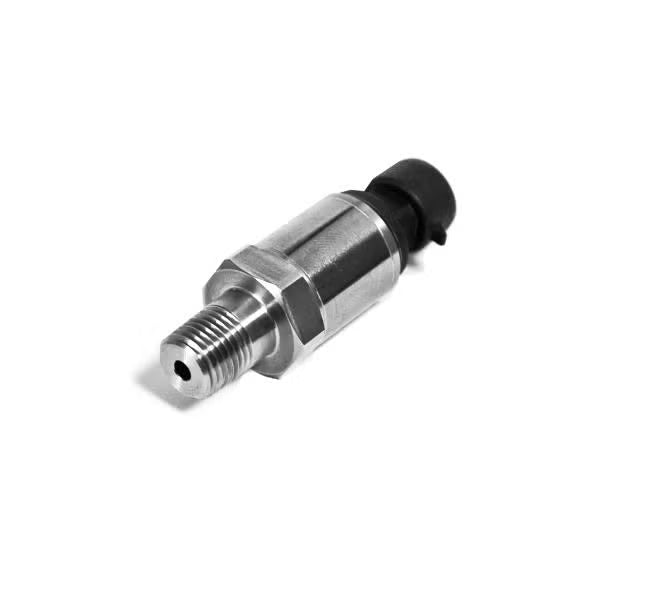

ACI, GP Series Gage Pressure Transducer with Packard Connector, 0 to 100 PSIG, 4-20 mA, 1/4 Inch-18 NPT Fitting GP0-100G-20-P

$352.61 $535.00

Shipping calculated at checkout.

In stock (15 units)

Usually ships next day

Shipping calculated at checkout

Description

The GP Series is designed to provide excellent accuracy and reliability in commercial, industrial, and process control applications where performance is critical. The bulk micro-machined transducer features a stainless steel diaphragm with welded construction that contains no O-rings, which makes them compatible with any gas or liquid compatible with 304L stainless steel. Some of the compatible gases and liquids include refrigerants, glycol, motor oil, diesel, hydraulic fluid, brake fluid, water, waste water, Hydrogen, Nitrogen and air.

Product Specifications

Name	Value
Category	Pressure Gauges
Configuration	No Enclosure
Connection type	1/4-18 NPT
Data Sheet	Download
Display name 1	Data Sheet
Features and benefits	Operating Temperature Range: -40 to 257 deg F (-40 to 125 deg C), Operating Humidity Range: 0 to 95 Percentage RH, Non-Condensing, Storage Temperature Range: -40 to 176 deg F (-40 to 80 deg C), Media Types: Any Gas or Liquid Compatible with 304L Stainless Steel, Housing Material: Stainless Steel \| Thermal Shock - 50 Cycles (105 deg C to -40 deg C, 0.5 Hour Soaks, Temperature (10s Transfer)), Vibration (100 to 2000 Hz, 20 Gram Sinusoidal, 3 Axes) - 300 Cycles (105 deg C to -40 deg C, 0.5 Hour Soaks, Temperature (2s Transfer)) \| EMC Compatibility: 150 Volt/Meter, Product Dimensions: 2.60 Inch (66.6 Millimeter) x 0.87 Inch (22.23 Millimeter), Product Weight - 0.13 Kilogram, 18 AWG Conductor, Tinned Plated Copper Conductor, Lead Wire Insulation: Plenum Polyvinylchloride \| Output Signal - 4 to 20 mA (2-Wire, Loop Powered), Response Time - < 1 Millisecond \| Accuracy 22 deg C (71.6 deg F): 15 to 60 PSIG: < +/- 1.0 Percentage FS, 75 to 300 PSIG: < +/- 0.5 Percentage FS, 500 PSIS3: < +/- 0.5 Percentage FS, Stability - +/- 0.03 Percentage FS, 0 PSIG; +/- 0.12 Percentage FS, 1000 PSIG, Proof and Burst Pressure - 3x FS \| Maximum Load Resistance - 800 Ohms, 24 VDC, Formula: (Supply VDC - 8 VDC)/0.020 A, Supply Current - 25 mA Minimum \| Application - Refrigeration, Fuel Cells, Pumps, Hydraulics, Compressors, Robotics, Pneumatics, Agriculture, Spraying Systems, Process Control, Flow, Hydrogen Storage, Steam Lines, Boilers and Chillers \| Supply Voltage - Plus 13 to 30 VDC (250 Ohm Load); Plus 18 to 30 VDC (500 Ohm Load), Reverse Polarity Protection - +/- 16 V over 5 minutes \| Process Fitting Material: 304L Stainless Steel, Recommend Torque Specification: 150 Inch-lbs (16.95 Nano Meter), Wiring Connections: Packard Connector, Agency Approvals: RoHS2, WEEE, ISO 9001 \| Jacket Color: Black, 0 deg C (32 deg F) to 75 deg C (137 deg F) Cable Operating Temperature Range
Most popular	Yes
P21 delete flag	false
Pressure range	0 to 100 PSIG
Product category	Pressure
Product subcategory	Pressure Gauges
Restricted class id	NULL
Restricted item	false
Series	GP Series
Short desc	ACI, GP Series Gage Pressure Transducer with Packard Connector, 0 to 100 PSIG, 4-20 mA, 1/4 Inch-18 NPT Fitting GP0-100G-20-P
Supplier part number	GP(0-100G)-20-P
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	true

Features and Benefits

Operating Temperature Range: -40 to 257 deg F (-40 to 125 deg C), Operating Humidity Range: 0 to 95 Percentage RH, Non-Condensing, Storage Temperature Range: -40 to 176 deg F (-40 to 80 deg C), Media Types: Any Gas or Liquid Compatible with 304L Stainless Steel, Housing Material: Stainless Steel | Thermal Shock - 50 Cycles (105 deg C to -40 deg C, 0.5 Hour Soaks, Temperature (10s Transfer)), Vibration (100 to 2000 Hz, 20 Gram Sinusoidal, 3 Axes) - 300 Cycles (105 deg C to -40 deg C, 0.5 Hour Soaks, Temperature (2s Transfer)) | EMC Compatibility: 150 Volt/Meter, Product Dimensions: 2.60 Inch (66.6 Millimeter) x 0.87 Inch (22.23 Millimeter), Product Weight - 0.13 Kilogram, 18 AWG Conductor, Tinned Plated Copper Conductor, Lead Wire Insulation: Plenum Polyvinylchloride | Output Signal - 4 to 20 mA (2-Wire, Loop Powered), Response Time - < 1 Millisecond | Accuracy 22 deg C (71.6 deg F): 15 to 60 PSIG: < +/- 1.0 Percentage FS, 75 to 300 PSIG: < +/- 0.5 Percentage FS, 500 PSIS3: < +/- 0.5 Percentage FS, Stability - +/- 0.03 Percentage FS, 0 PSIG; +/- 0.12 Percentage FS, 1000 PSIG, Proof and Burst Pressure - 3x FS | Maximum Load Resistance - 800 Ohms, 24 VDC, Formula: (Supply VDC - 8 VDC)/0.020 A, Supply Current - 25 mA Minimum | Application - Refrigeration, Fuel Cells, Pumps, Hydraulics, Compressors, Robotics, Pneumatics, Agriculture, Spraying Systems, Process Control, Flow, Hydrogen Storage, Steam Lines, Boilers and Chillers | Supply Voltage - Plus 13 to 30 VDC (250 Ohm Load); Plus 18 to 30 VDC (500 Ohm Load), Reverse Polarity Protection - +/- 16 V over 5 minutes | Process Fitting Material: 304L Stainless Steel, Recommend Torque Specification: 150 Inch-lbs (16.95 Nano Meter), Wiring Connections: Packard Connector, Agency Approvals: RoHS2, WEEE, ISO 9001 | Jacket Color: Black, 0 deg C (32 deg F) to 75 deg C (137 deg F) Cable Operating Temperature Range
