Power Monitoring & Protection | SKU: H934

H934 | Veris Industries | Power Monitoring & Protection

Name: H934
Brand: Veris Industries
SKU: SCH-H934
Price: 208.87 USD
Availability: InStock

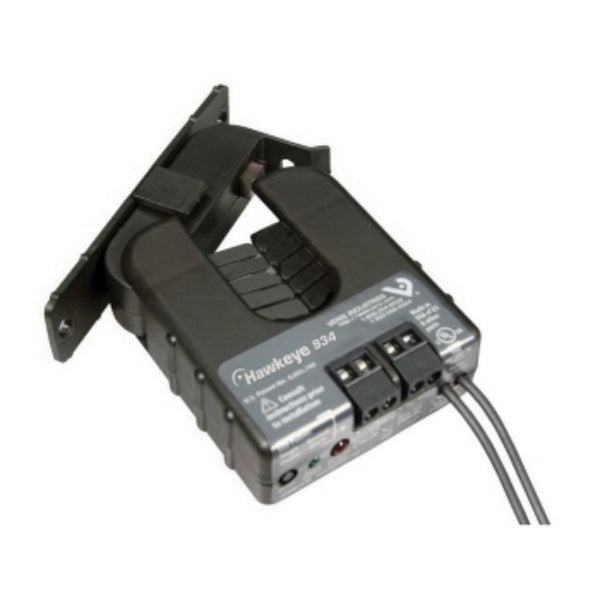

Veris, Hawkeye Current Switch, 0.1 A at 30 VAC/VDC, Normally Open, Split-Core Vfd Current Sensor, SPST

$208.87 $388.95

Shipping calculated at checkout.

In stock (5 units)

Usually ships next day

FREE SHIPPING

Description

Hawkeye 934 current monitoring devices provide unique solutions for accurately monitoring status of motors controlled by variable frequency drives. The microprocessor based H934 store the sensed amperage values for normal operation at various frequency ranges in non-volatile memory. This information allows the device to distinguish between a reduced amp draw due to normal changes in the frequency and an abnormal amp drop due to belt loss or other mechanical failures. The relay on the H934 is isolated from the current switch, and all relay connections are externally accessible on the device.

Product Specifications

Name	Value
Category	Current Switches
Contact form	SPST N.O.
Description	Hawkeye 934 current monitoring devices provide unique solutions for accurately monitoring status of motors controlled by variable frequency drives. The microprocessor based H934 store the sensed amperage values for normal operation at various frequency ranges in non-volatile memory. This information allows the device to distinguish between a reduced amp draw due to normal changes in the frequency and an abnormal amp drop due to belt loss or other mechanical failures. The relay on the H934 is isolated from the current switch, and all relay connections are externally accessible on the device.
Data Sheet	Download
Display name 1	Data Sheet
Features and benefits	{'Features_and_Benefits_1': 'Automatically Compensates for the Effects of Frequency and Amperage Changes in Monitored Conductor Associated with VFDs', 'Features_and_Benefits_2': 'Nuisance Reduction - Provides a Secondary Setpoint Option of 50 Percentage of the Originally Measured Current', 'Features_and_Benefits_3': 'Rapid Troubleshooting - LED Indicates Normal and Alarm Conditions', 'Features_and_Benefits_4': 'Induced from Monitored Conductor Sensor Power', 'Features_and_Benefits_5': 'LED Status, LED Relay Power', 'Features_and_Benefits_6': 'Certification: UL, CE', 'Features_and_Benefits_7': 'Warnings: Prop 65'}
In_stock	true
Margin	42
P21 delete flag	false
Product category	Power Monitoring & Protection
Product subcategory	Current Switches
Restricted class id	NULL
Restricted item	false
Sensing range	Lower limit: 0 Amp, Upper limit: 20-200 Amp
Series	Veris
Short desc	Veris, Hawkeye Current Switch, 0.1 A at 30 VAC/VDC, Normally Open, Split-Core Vfd Current Sensor, SPST
Sku	SCH-H934
Strategic_value	9
Supplier part number	H934
Type	Split-Core Current Switch
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	Y
Window size	0.8 Inch

Features and Benefits

{'Features_and_Benefits_1': 'Automatically Compensates for the Effects of Frequency and Amperage Changes in Monitored Conductor Associated with VFDs', 'Features_and_Benefits_2': 'Nuisance Reduction - Provides a Secondary Setpoint Option of 50 Percentage of the Originally Measured Current', 'Features_and_Benefits_3': 'Rapid Troubleshooting - LED Indicates Normal and Alarm Conditions', 'Features_and_Benefits_4': 'Induced from Monitored Conductor Sensor Power', 'Features_and_Benefits_5': 'LED Status, LED Relay Power', 'Features_and_Benefits_6': 'Certification: UL, CE', 'Features_and_Benefits_7': 'Warnings: Prop 65'}
