Power Monitoring & Protection  | SKU: E50-208200-R03KIT

E50-208200-R03KIT | Honeywell | Power Monitoring & Protection

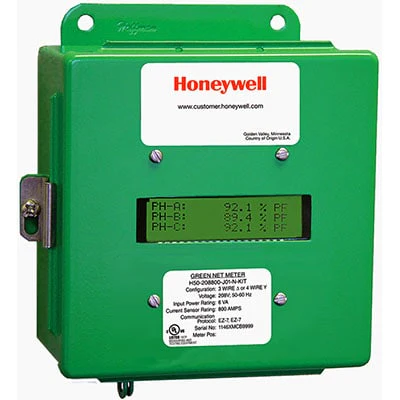

Honeywell E-Mon Class 5000 Advanced kWh Demand Meter, Split-Core: Current Sensors, 200 A, 208 VAC, 3-Phase, NEMA 4X Raintight Enclosure, BACnet MSTP: EZ7 Ethernet E50-208200-R03KIT
$1,786.74 $4,252.45
Shipping calculated at checkout.

E50-208200-R03KIT is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

In Addition to Advanced Display Features and on-Board Set up Options, the Class 5000 Meter Offers Users the Option of Dual-Protocol Communication Capabilities Via RS-485 and Ethernet (Optional Telephone Modem Available). Users can Choose from a Variety of Industry-Standard Communication Protocols Including- EZ7 E-Mon Energy, Modbus RTU, Modbus TCP/IP, BACnet MS/TP, BACnet IP or Lonworks TP/FT-10. Meters are Available in Either NEMA 4X Outdoor Enclosures or Indoor JIC Steel Enclosures. Class 5000 Meters Also Provide Two Pulse Outputs and Two External Meter Inputs for Water, Gas, BTU, Steam, Etc. Meters Readable Via E-Mon Energy Software and Phase Loss Alarming.

Product Specifications

Name Value
Amp rating 200 A
Application 3-Phase kWh/Demand Meter
Category Power Meters
Description In Addition to Advanced Display Features and on-Board Set up Options, the Class 5000 Meter Offers Users the Option of Dual-Protocol Communication Capabilities Via RS-485 and Ethernet (Optional Telephone Modem Available). Users can Choose from a Variety of Industry-Standard Communication Protocols Including- EZ7 E-Mon Energy, Modbus RTU, Modbus TCP/IP, BACnet MS/TP, BACnet IP or Lonworks TP/FT-10. Meters are Available in Either NEMA 4X Outdoor Enclosures or Indoor JIC Steel Enclosures. Class 5000 Meters Also Provide Two Pulse Outputs and Two External Meter Inputs for Water, Gas, BTU, Steam, Etc. Meters Readable Via E-Mon Energy Software and Phase Loss Alarming.
Data Sheet Download
Display name 1 Data Sheet
Enclosure type NEMA 4X Polycarbonate Raintight Outdoor
Features and benefits {'Features_and_Benefits_1': 'Advanced 4-Line Display Showing', 'Features_and_Benefits_10': 'Built-In RS-485 - Ethernet Communications, Optional Telephone Modem Available', 'Features_and_Benefits_2': 'On-Board Set-up Option for: IP Address, Meter Date/Time, ID Codes for EZ7, Modbus and BACnet', 'Features_and_Benefits_3': 'Protocols - BACnet MSTP: EZ7 Ethernet', 'Features_and_Benefits_4': '0-2 Volt Output Split-Core Current Sensors Allow for Enhanced Safety and Accurate Remote Mounting of Sensors up to 500 Feet from Meter without Power Interruption', 'Features_and_Benefits_5': 'Onboard Diagnostics and Verification System', 'Features_and_Benefits_6': 'Two Pulse Outputs - Two External Meter Inputs (Water, Gas, BTU, Etc.) (Channels 5 and 6 available via E-Mon Energy only)', 'Features_and_Benefits_7': 'Phase Loss Alarm (N.O. Contact)', 'Features_and_Benefits_8': 'Built-in RS-485 Communications Capability Supports up to 52 Class 5000 Meters and/or IDR Interval Recorders(or Combinations Not to Exceed 52 Devices Per Channel)', 'Features_and_Benefits_9': 'Cabling can be Either Daisy-Chain or Star Configuration, 3-Conductor, 18-22 AWG, up to 4,000 Feet Cable Total Per Channel'}
Includes Split-Core: Current Sensors
P21 delete flag false
Product category Power Monitoring & Protection
Product subcategory Power & Energy Meters
Restricted class id NULL
Restricted item false
Series E-Mon Class 5000
Short desc Honeywell E-Mon Class 5000 Advanced kWh Demand Meter, Split-Core: Current Sensors, 200 A, 208 VAC, 3-Phase, NEMA 4X Raintight Enclosure, BACnet MSTP: EZ7 Ethernet E50-208200-R03KIT
Sku HWI-E50208200R03KIT
Supplier part number E50-208200-R03KIT
Type RS485 IP Smart Meter
Ultra store sync us Yes
Vendor active Y
Vendor enabled true
Voltage 208 VAC

Features and Benefits

{'Features_and_Benefits_1': 'Advanced 4-Line Display Showing', 'Features_and_Benefits_10': 'Built-In RS-485 - Ethernet Communications, Optional Telephone Modem Available', 'Features_and_Benefits_2': 'On-Board Set-up Option for: IP Address, Meter Date/Time, ID Codes for EZ7, Modbus and BACnet', 'Features_and_Benefits_3': 'Protocols - BACnet MSTP: EZ7 Ethernet', 'Features_and_Benefits_4': '0-2 Volt Output Split-Core Current Sensors Allow for Enhanced Safety and Accurate Remote Mounting of Sensors up to 500 Feet from Meter without Power Interruption', 'Features_and_Benefits_5': 'Onboard Diagnostics and Verification System', 'Features_and_Benefits_6': 'Two Pulse Outputs - Two External Meter Inputs (Water, Gas, BTU, Etc.) (Channels 5 and 6 available via E-Mon Energy only)', 'Features_and_Benefits_7': 'Phase Loss Alarm (N.O. Contact)', 'Features_and_Benefits_8': 'Built-in RS-485 Communications Capability Supports up to 52 Class 5000 Meters and/or IDR Interval Recorders(or Combinations Not to Exceed 52 Devices Per Channel)', 'Features_and_Benefits_9': 'Cabling can be Either Daisy-Chain or Star Configuration, 3-Conductor, 18-22 AWG, up to 4,000 Feet Cable Total Per Channel'}
