Power Monitoring & Protection  | SKU: E34-4803200J02KIT

E34-4803200J02KIT | Honeywell | Power Monitoring & Protection

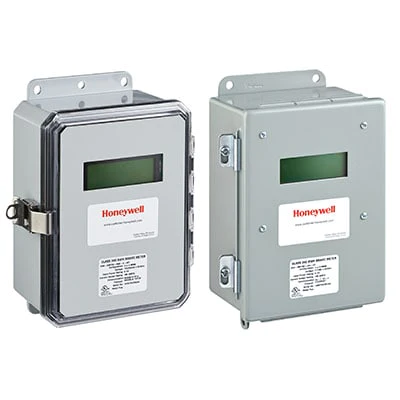

Honeywell E-Mon Class 3400 Advanced kWh Demand Meter with Communication, Split-Core: Current Sensors, 3200 A, 480 VAC, 3-Phase, JIC Steel Enclosure, Modbus RTU: EZ7 Ethernet E34-4803200J02KIT
$3,138.37 $6,224.44
Shipping calculated at checkout.

E34-4803200J02KIT is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

The E-Mon Class 3400 Meter is a 3-Element Meter with Communications. The Device is Used to Monitor Electric Power Usage of Individual Loads After the Utility Meter and Store kW and kVAr Data for Automatic Meter Reading. The Class 3400 Meter is Dual Protocol Capable and Provides Both RS485 and Ethernet Communications. Installation Must Only be Performed by Qualified Personnel and in Accordance with These Instructions and All Applicable Local and National Electrical Codes. Honeywell and its Representatives Assume No Responsibility for Damages or Injury Resulting from the Improper Installation of This Meter.

Product Specifications

Name Value
Amp rating 3200 A
Application 3 Phase kWh/Demand Meter
Category Power Meters
Description The E-Mon Class 3400 Meter is a 3-Element Meter with Communications. The Device is Used to Monitor Electric Power Usage of Individual Loads After the Utility Meter and Store kW and kVAr Data for Automatic Meter Reading. The Class 3400 Meter is Dual Protocol Capable and Provides Both RS485 and Ethernet Communications. Installation Must Only be Performed by Qualified Personnel and in Accordance with These Instructions and All Applicable Local and National Electrical Codes. Honeywell and its Representatives Assume No Responsibility for Damages or Injury Resulting from the Improper Installation of This Meter.
Data Sheet Download
Display name 1 Data Sheet
Enclosure type Industrial Grade JIC Steel
Features and benefits {'Features_and_Benefits_1': 'Advanced 4-Line Display', 'Features_and_Benefits_10': 'Records kWh and kVArh Delivered, kWh and kVArh Received in First 4 Channels', 'Features_and_Benefits_2': 'On-Board Set-up Option for IP Address, Meter Date/Time, Load Control Settings - ID Codes for EZ7, Modbus and BACnet', 'Features_and_Benefits_3': 'Protocols - Modbus RTU: EZ7 Ethernet', 'Features_and_Benefits_4': 'Two Pulse Outputs (One kWh and One kVArh)', 'Features_and_Benefits_5': '0-2 Volt Output Split-Core Current Sensors Allow for Enhanced Safety and Accurate Remote Mounting of Sensors up to 500 Feet from Meter without Power Interruption', 'Features_and_Benefits_6': 'Onboard Diagnostics and Verification System', 'Features_and_Benefits_7': 'Built-in RS-485 Communications Capability Supports up to 52 Class 3400 Meters and/or IDR Interval Recorders (or Combinations Not to Exceed 52 Devices Per Channel', 'Features_and_Benefits_8': 'Cabling can be Either Daisy-Chain or Star Configuration, 3-Conductor, 18-22 AWG, up to 4,000 Feet Cable Total Per Channel', 'Features_and_Benefits_9': 'Built-in Communications - RS-485 and Ethernet'}
Includes Split-Core Current Sensors
P21 delete flag false
Product category Power Monitoring & Protection
Product subcategory Power & Energy Meters
Restricted class id NULL
Restricted item false
Series E-Mon Class 3400
Short desc Honeywell E-Mon Class 3400 Advanced kWh Demand Meter with Communication, Split-Core: Current Sensors, 3200 A, 480 VAC, 3-Phase, JIC Steel Enclosure, Modbus RTU: EZ7 Ethernet E34-4803200J02KIT
Sku HWI-E344803200J02KIT
Supplier part number E34-4803200J02KIT
Type RS485 IP Smart Meter
Ultra store sync us Yes
Vendor active Y
Vendor enabled true
Voltage 480 VAC

Features and Benefits

{'Features_and_Benefits_1': 'Advanced 4-Line Display', 'Features_and_Benefits_10': 'Records kWh and kVArh Delivered, kWh and kVArh Received in First 4 Channels', 'Features_and_Benefits_2': 'On-Board Set-up Option for IP Address, Meter Date/Time, Load Control Settings - ID Codes for EZ7, Modbus and BACnet', 'Features_and_Benefits_3': 'Protocols - Modbus RTU: EZ7 Ethernet', 'Features_and_Benefits_4': 'Two Pulse Outputs (One kWh and One kVArh)', 'Features_and_Benefits_5': '0-2 Volt Output Split-Core Current Sensors Allow for Enhanced Safety and Accurate Remote Mounting of Sensors up to 500 Feet from Meter without Power Interruption', 'Features_and_Benefits_6': 'Onboard Diagnostics and Verification System', 'Features_and_Benefits_7': 'Built-in RS-485 Communications Capability Supports up to 52 Class 3400 Meters and/or IDR Interval Recorders (or Combinations Not to Exceed 52 Devices Per Channel', 'Features_and_Benefits_8': 'Cabling can be Either Daisy-Chain or Star Configuration, 3-Conductor, 18-22 AWG, up to 4,000 Feet Cable Total Per Channel', 'Features_and_Benefits_9': 'Built-in Communications - RS-485 and Ethernet'}
