Level  | SKU: PBLT2-5-60

PBLT2-5-60

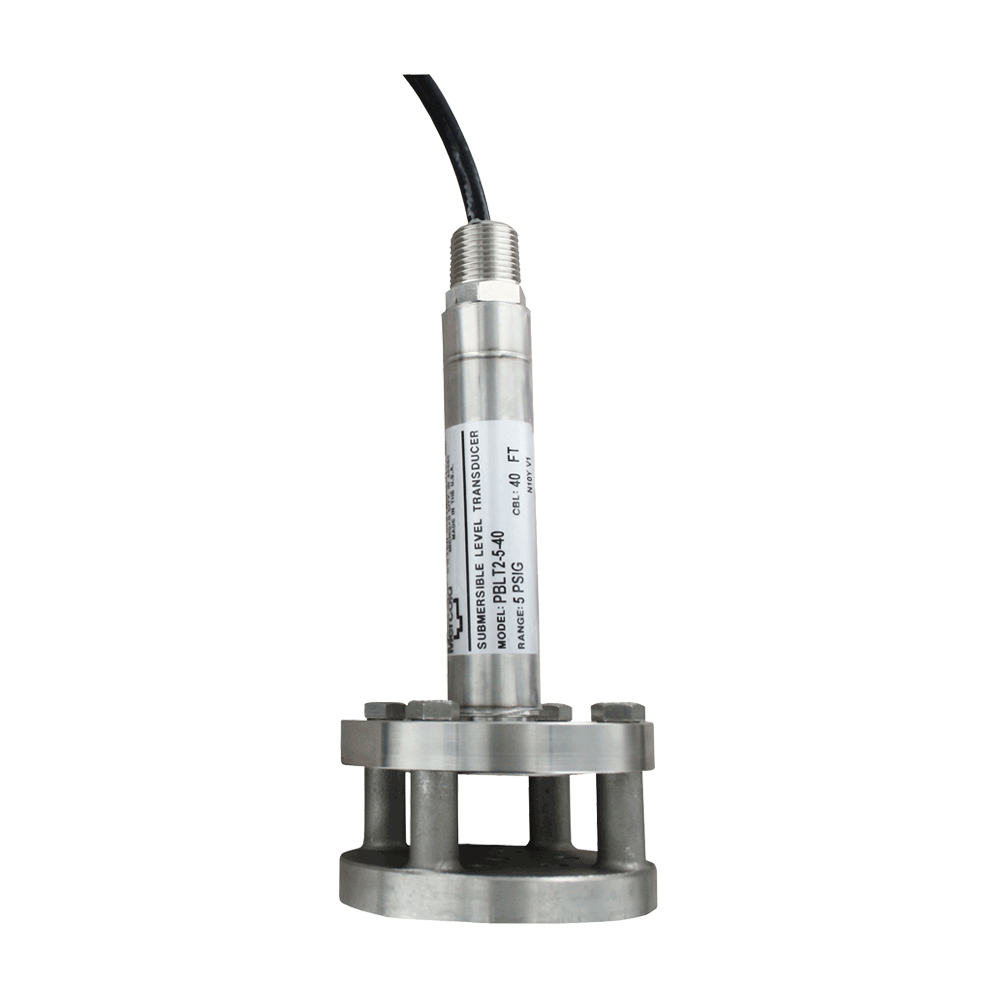

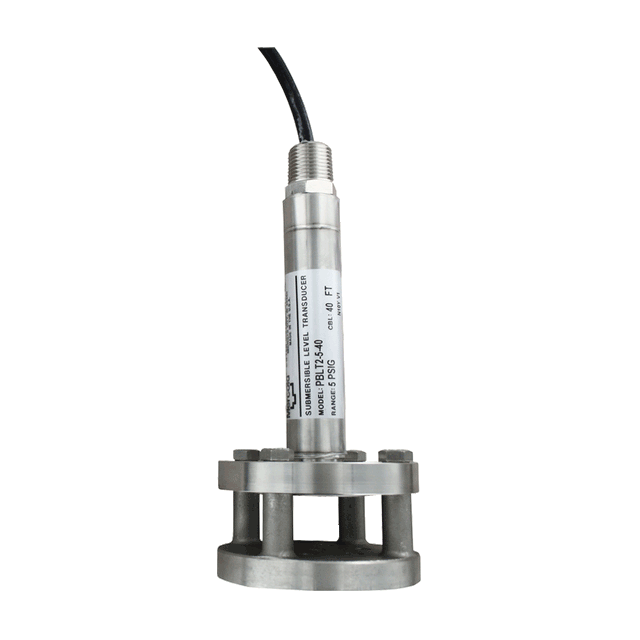

Dwyer, Submersible Level Transmitter, Range 5 psi (11.54 Feet w.c.) [3.52 Meter w.c.], 60 Feet (18.3 Meter) ETFE Cable PBLT2-5-60
$1,858.97
Shipping calculated at checkout.

PBLT2-5-60 is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
Shipping calculated at checkout

Description

PBLT2 Submersible Level Transmitters are manufactured for years of trouble free service in the harshest applications. Both measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing. Perfect for wastewater and slurry applications with features to protect the unit from these demanding applications. Large diameter 316 SS diaphragm seal is non-clogging and damage resistant to floating solids. The PBLT2 incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty).

Product Specifications

Name Value
Cable type 60 Feet (18.3 Meter) ETFE Cable
Category Level Transmitters
Data Sheet Download
Installation Guide Download
Display name 1 Data Sheet
Display name 2 Data Sheet
Features and benefits Application: Wastewater, Sludge Pits, Clarifiers, Digesters, Alum Tanks, Chemical Storage Tanks, Oil Tanks, Lime Slurry, Sumps, Reservoirs | Wetted Materials: Body: 316 SS, 316L SS; Cable: Polyether Polyurethane or ETFE; Seals: Fluoroelastomer | Decrease Ownership Cost with Durable, 270 lb Tensile Strength Shielded and Vented Cable and Excellent Chemical Compatibility | Flexible Installation Options with NPT Connection to Rigidly Install in a Pipe/Conduit or Use a A-625 Hanging Loop to Attach a Chain to Remove From the Installation | Accuracy: ±0.25 Percentage FS (Includes Linearity, Hysteresis, and Repeatability) | Service: Compatible Liquids | Eliminates Particulate or Water Droplets From Entering the Transducer Using Maintenance-Free Filter | Increased Life with Lightning and Surge Protection Utilizing Dual Arrestor Technology, Grounded to Case, Eliminating Both Power Supply Surges and Lightning Ground Strike Transients (Surge Protection is Not Guaranteed and is Not Covered by Warranty) on PBLT2 Models | Meet Application Requirements with Durable Cage Design with Large Diameter 316 SS Diaphragm Seal That is Non-Clogging and Damage Resistant to Floating Solids
P21 delete flag false
Product category Level
Product subcategory Level Transmitters
Range 5 psi (11.54 Feet w.c.) [3.52 Meter w.c.]
Restricted class id NULL
Restricted item false
Series Dwyer
Short desc Dwyer, Submersible Level Transmitter, Range 5 psi (11.54 Feet w.c.) [3.52 Meter w.c.], 60 Feet (18.3 Meter) ETFE Cable PBLT2-5-60
Supplier part number PBLT2-5-60
Ultra store sync us Yes
Vendor active Y

Features and Benefits

Application: Wastewater, Sludge Pits, Clarifiers, Digesters, Alum Tanks, Chemical Storage Tanks, Oil Tanks, Lime Slurry, Sumps, Reservoirs | Wetted Materials: Body: 316 SS, 316L SS; Cable: Polyether Polyurethane or ETFE; Seals: Fluoroelastomer | Decrease Ownership Cost with Durable, 270 lb Tensile Strength Shielded and Vented Cable and Excellent Chemical Compatibility | Flexible Installation Options with NPT Connection to Rigidly Install in a Pipe/Conduit or Use a A-625 Hanging Loop to Attach a Chain to Remove From the Installation | Accuracy: ±0.25 Percentage FS (Includes Linearity, Hysteresis, and Repeatability) | Service: Compatible Liquids | Eliminates Particulate or Water Droplets From Entering the Transducer Using Maintenance-Free Filter | Increased Life with Lightning and Surge Protection Utilizing Dual Arrestor Technology, Grounded to Case, Eliminating Both Power Supply Surges and Lightning Ground Strike Transients (Surge Protection is Not Guaranteed and is Not Covered by Warranty) on PBLT2 Models | Meet Application Requirements with Durable Cage Design with Large Diameter 316 SS Diaphragm Seal That is Non-Clogging and Damage Resistant to Floating Solids
