Johnson Controls  | SKU: VA9203-GGA-2Z

VA9203-GGA-2Z | Johnson Controls | Control Valves & Actuators

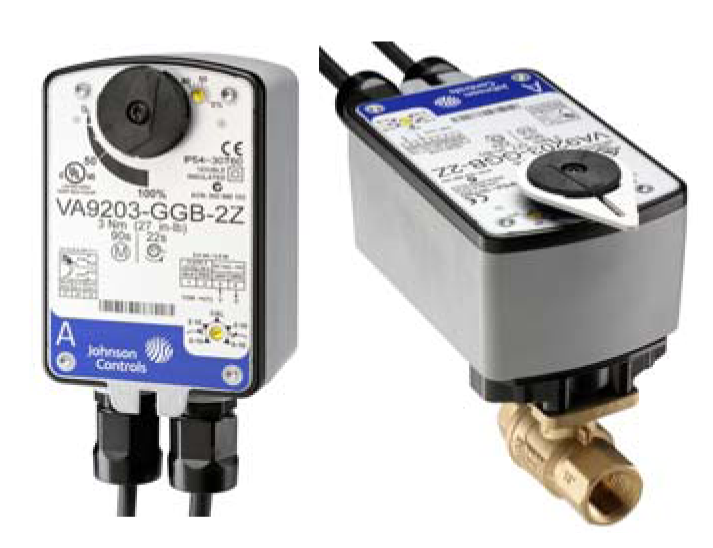

VA9203 Series Electric Actuator, Proportional, Spring Return, 24 VAC/VDC, 27 Inch-lbs, Plenum-Rated Cable, IP54, NEMA 2
$339.41 $543.06
Shipping calculated at checkout.

VA9203-GGA-2Z is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

The VA9203-xxx-xx Series Electric Spring-Return Ball Valve Actuators are direct-mount valve actuators that operate on 24 VAC/VDC power. These bidirectional actuators are used to provide accurate positioning on Johnson Controls VG1000 Series 1/2, 3/4 and 1 Inch (DN15, DN20 and DN25) ball valves in HVAC applications. A mechanical spring-return system provides rated torque with or without power applied to the actuator.

Product Specifications

Name Value
Category Valve
Description The VA9203-xxx-xx Series Electric Spring-Return Ball Valve Actuators are direct-mount valve actuators that operate on 24 VAC/VDC power. These bidirectional actuators are used to provide accurate positioning on Johnson Controls VG1000 Series 1/2, 3/4 and 1 Inch (DN15, DN20 and DN25) ball valves in HVAC applications. A mechanical spring-return system provides rated torque with or without power applied to the actuator.
Data Sheet Download
Installation Guide Download
Display name 2 Installation Instructions
Fail safe Spring Return
Features and benefits {'Features_and_Benefits_1': 'Direct Mounting with a Single Screw', 'Features_and_Benefits_10': 'Optional Thermal Barrier', 'Features_and_Benefits_2': 'Electronic Stall Detection', 'Features_and_Benefits_3': 'Double-Insulated Construction', 'Features_and_Benefits_4': 'Microprocessor-Controlled Brushless DC Motor', 'Features_and_Benefits_5': 'External Mode Selection Switch', 'Features_and_Benefits_6': 'Integral Cables with Colored and Numbered Conductors', 'Features_and_Benefits_7': 'Integral Connectors for 1/2 Inch (13mm) Threaded Conduit Connector(s)', 'Features_and_Benefits_8': 'Optional Integrated Auxiliary Switch', 'Features_and_Benefits_9': 'Plenum Rated Models'}
Most popular Yes
P21 delete flag false
Power consumption holding 2.7 VA
Power consumption running 4.7 VA
Product category Control Valves & Actuators
Product subcategory Spring Return Valve Actuators
Restricted class id NULL
Restricted item false
Rotation 95 Deg.
Series Johnson Controls
Short desc VA9203 Series Electric Actuator, Proportional, Spring Return, 24 VAC/VDC, 27 Inch-lbs, Plenum-Rated Cable, IP54, NEMA 2
Sku JCI-VA9203GGA2Z
Supplier part number VA9203-GGA-2Z
Torque 27 in-lbs (3 Nm)
Type Electric Valve Actuator
Ultra store sync us Yes
Vendor enabled TRUE
Yorkland id VA9203-GGA-2Z

Features and Benefits

{'Features_and_Benefits_1': 'Direct Mounting with a Single Screw', 'Features_and_Benefits_10': 'Optional Thermal Barrier', 'Features_and_Benefits_2': 'Electronic Stall Detection', 'Features_and_Benefits_3': 'Double-Insulated Construction', 'Features_and_Benefits_4': 'Microprocessor-Controlled Brushless DC Motor', 'Features_and_Benefits_5': 'External Mode Selection Switch', 'Features_and_Benefits_6': 'Integral Cables with Colored and Numbered Conductors', 'Features_and_Benefits_7': 'Integral Connectors for 1/2 Inch (13mm) Threaded Conduit Connector(s)', 'Features_and_Benefits_8': 'Optional Integrated Auxiliary Switch', 'Features_and_Benefits_9': 'Plenum Rated Models'}
