Johnson Controls  | SKU: VA9203-BGA-2

VA9203-BGA-2 | Johnson Controls | Control Valves & Actuators

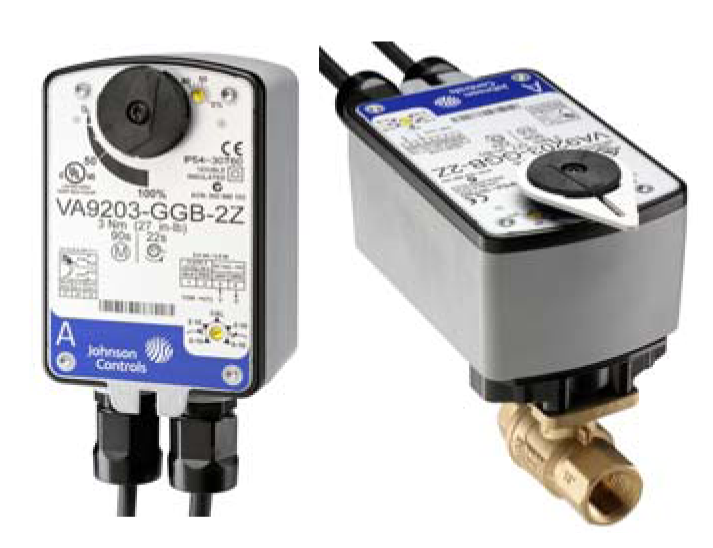

VA9203 Series Electric Actuator, On/Off, Spring Return, 24 VAC/VDC, 27 Inch-lbs, Halogen-Free Cable, IP54, NEMA 2
$231.01 $369.62
Shipping calculated at checkout.

VA9203-BGA-2 is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

The VA9203-xxx-xx Series Electric Spring-Return Ball Valve Actuators are direct-mount valve actuators that operate on 24 VAC/VDC power. These bidirectional actuators are used to provide accurate positioning on Johnson Controls VG1000 Series 1/2, 3/4 and 1 Inch (DN15, DN20 and DN25) ball valves in HVAC applications. A mechanical spring-return system provides rated torque with or without power applied to the actuator.

Product Specifications

Name Value
Category Valve
Connection type Halogen-Free Cable
Control type On/Off
Description The VA9203-xxx-xx Series Electric Spring-Return Ball Valve Actuators are direct-mount valve actuators that operate on 24 VAC/VDC power. These bidirectional actuators are used to provide accurate positioning on Johnson Controls VG1000 Series 1/2, 3/4 and 1 Inch (DN15, DN20 and DN25) ball valves in HVAC applications. A mechanical spring-return system provides rated torque with or without power applied to the actuator.
Data Sheet Download
Installation Guide Download
Display name 1 Data Sheet
Display name 2 Installation Instructions
Enclosure type IP54, NEMA 2
Fail safe Spring Return
Features and benefits {'Features_and_Benefits_1': 'Direct Mounting with a Single Screw', 'Features_and_Benefits_10': 'Underwriters Laboratories (UL),CE Mark and C-Tick Compliance', 'Features_and_Benefits_2': 'Electronic Stall Detection', 'Features_and_Benefits_3': 'Double-Insulated Construction', 'Features_and_Benefits_4': 'Integral Cables with Colored and Numbered Conductors', 'Features_and_Benefits_5': 'Integral Connectors for 1/2 Inch (13mm) Threaded Conduit Connector(s)', 'Features_and_Benefits_6': 'Optional Integrated Auxiliary Switch', 'Features_and_Benefits_7': 'Plenum Rated Models', 'Features_and_Benefits_8': 'Optional Thermal Barrier', 'Features_and_Benefits_9': 'Available Weather Shield for Field Mounting'}
P21 delete flag false
Power consumption holding 1.6 VA
Power consumption running 5 VA
Power supply 24 VAC/VDC
Product category Control Valves & Actuators
Product subcategory Spring Return Valve Actuators
Restricted class id NULL
Restricted item false
Rotation 95 Deg.
Series Johnson Controls
Short desc VA9203 Series Electric Actuator, On/Off, Spring Return, 24 VAC/VDC, 27 Inch-lbs, Halogen-Free Cable, IP54, NEMA 2
Sku JCI-VA9203BGA2
Supplier part number VA9203-BGA-2
Torque 27 in-lbs (3 Nm)
Type Electric Valve Actuator
Ultra store sync us Yes
Vendor active Y
Yorkland id VA9203-BGA-2

Features and Benefits

{'Features_and_Benefits_1': 'Direct Mounting with a Single Screw', 'Features_and_Benefits_10': 'Underwriters Laboratories (UL),CE Mark and C-Tick Compliance', 'Features_and_Benefits_2': 'Electronic Stall Detection', 'Features_and_Benefits_3': 'Double-Insulated Construction', 'Features_and_Benefits_4': 'Integral Cables with Colored and Numbered Conductors', 'Features_and_Benefits_5': 'Integral Connectors for 1/2 Inch (13mm) Threaded Conduit Connector(s)', 'Features_and_Benefits_6': 'Optional Integrated Auxiliary Switch', 'Features_and_Benefits_7': 'Plenum Rated Models', 'Features_and_Benefits_8': 'Optional Thermal Barrier', 'Features_and_Benefits_9': 'Available Weather Shield for Field Mounting'}
