Johnson Controls  | SKU: VA7810-HGA-2

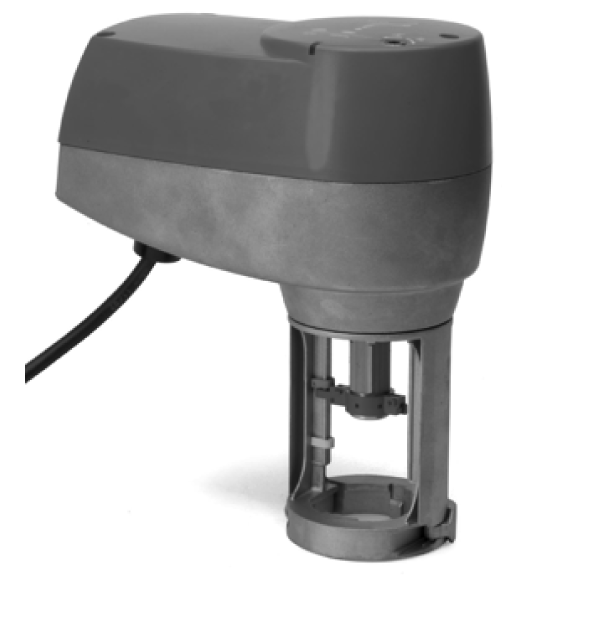

VA7810-HGA-2 | Johnson Controls | VG7000 Elec Actuator, Multi Signal, 24v

Johnson Controls, VA7810 Series Electric Valve Actuator, On/Off, Floating, Proportional, Non-Spring-Return, 24 VAC, 180 Inch-lbs, Halogen-Free Cable, IP54, NEMA 2 VA7810-HGA-2
$740.20 $1,184.53
Shipping calculated at checkout.

Delivery

In stock (10 units)

Usually ships next day

Calculated at checkout
Save Product

Description

The VA7800 Series Electric Valve Actuators control VG7000 Series Bronze Globe Valves in HVAC systems. The VA7800 Series produce a minimum linear output force of 180 lbs (800 N) and are field mounted or factory coupled to 1/2 Inch through 2 Inch VG7000 Series Bronze Globe Valves. Models are available with or without optional auxiliary switches.

Product Specifications

Name Value
Category Valve
Connection type Halogen-Free Cable
Control type On/Off, Floating, Proportional
Description The VA7800 Series Electric Valve Actuators control VG7000 Series Bronze Globe Valves in HVAC systems. The VA7800 Series produce a minimum linear output force of 180 lbs (800 N) and are field mounted or factory coupled to 1/2 Inch through 2 Inch VG7000 Series Bronze Globe Valves. Models are available with or without optional auxiliary switches.
Data Sheet Download PDF
Installation Guide Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Enclosure type IP54, NEMA 2
Fail safe Non Fail-Safe
Features and benefits {'Features_and_Benefits_1': 'Direct Mount', 'Features_and_Benefits_10': 'Status Light-Emitting Diode (LED) - Gives Visual Indication of Actuator Status and Assists with Diagnostic', 'Features_and_Benefits_2': 'Automatic Stroke Adjustment - Provides Easy, Quick and Precise Commissioning', 'Features_and_Benefits_3': 'Manual Override as Standard - Allows Manual Positioning of Valve for Easy Commissioning and Servicing', 'Features_and_Benefits_4': 'IP54 Enclosure Protection - Allows Installation in a Wide Range of Environments', 'Features_and_Benefits_5': 'Unique Swing-Gate Yoke - Offers Fast and Secure Attachment to the Valve', 'Features_and_Benefits_6': 'Brushless Motor - Ensures Low Energy Consumption and Long Life', 'Features_and_Benefits_7': 'Proportional Model - Enables One Model to be Used for Various Control Types', 'Features_and_Benefits_8': 'Force-Controlled Motor Shutoff - Reduces Energy Consumption, Wear of the Actuator and Protects the Valve from Excessive Forces', 'Features_and_Benefits_9': 'Stroke Position Indicator - Gives Visual Indication of Valve Operation, Provides Automatic Adjustment of Stroke Indicators During First Cycle of Operation'}
Most popular Yes
P21 delete flag false
Power supply 24 VAC
Product category Control Valves & Actuators
Product subcategory Non-Spring Return Valve Actuators
Restricted class id NULL
Restricted item false
Series Johnson Controls
Short desc Johnson Controls, VA7810 Series Electric Valve Actuator, On/Off, Floating, Proportional, Non-Spring-Return, 24 VAC, 180 Inch-lbs, Halogen-Free Cable, IP54, NEMA 2 VA7810-HGA-2
Sku JCI-VA7810HGA2
Supplier part number VA7810-HGA-2
Torque 180 in-lbs (20 Nm)
Type Electric Valve Actuator
Ultra store sync us Yes
Vendor active Y
Yorkland id VA7810-HGA-2

Features and Benefits

{'Features_and_Benefits_1': 'Direct Mount', 'Features_and_Benefits_10': 'Status Light-Emitting Diode (LED) - Gives Visual Indication of Actuator Status and Assists with Diagnostic', 'Features_and_Benefits_2': 'Automatic Stroke Adjustment - Provides Easy, Quick and Precise Commissioning', 'Features_and_Benefits_3': 'Manual Override as Standard - Allows Manual Positioning of Valve for Easy Commissioning and Servicing', 'Features_and_Benefits_4': 'IP54 Enclosure Protection - Allows Installation in a Wide Range of Environments', 'Features_and_Benefits_5': 'Unique Swing-Gate Yoke - Offers Fast and Secure Attachment to the Valve', 'Features_and_Benefits_6': 'Brushless Motor - Ensures Low Energy Consumption and Long Life', 'Features_and_Benefits_7': 'Proportional Model - Enables One Model to be Used for Various Control Types', 'Features_and_Benefits_8': 'Force-Controlled Motor Shutoff - Reduces Energy Consumption, Wear of the Actuator and Protects the Valve from Excessive Forces', 'Features_and_Benefits_9': 'Stroke Position Indicator - Gives Visual Indication of Valve Operation, Provides Automatic Adjustment of Stroke Indicators During First Cycle of Operation'}
