Johnson Controls  | SKU: TEC3630-14-000

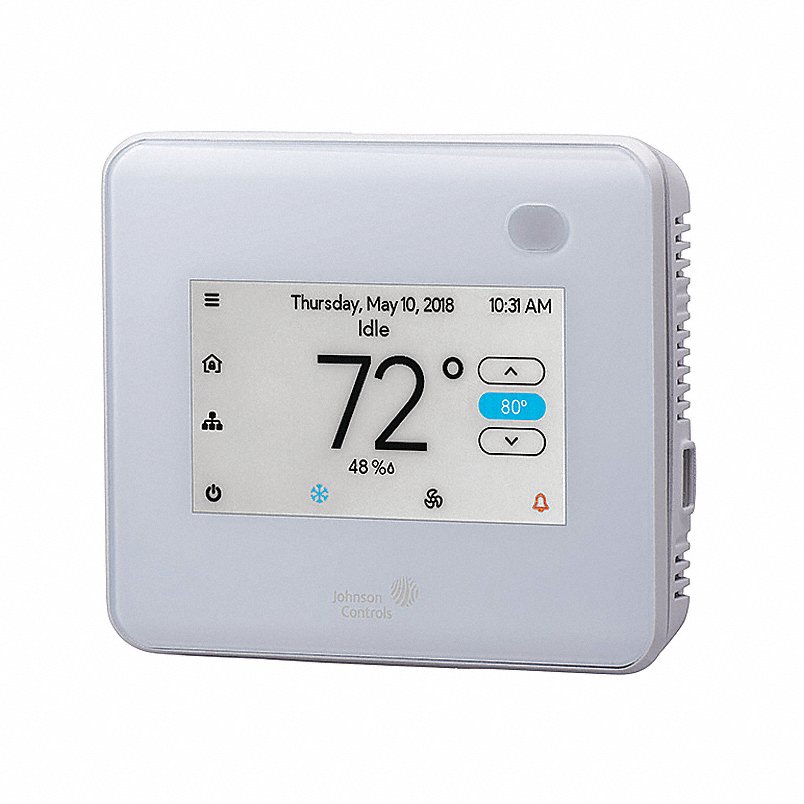

TEC3630-14-000 | Johnson Controls | Single/Two Stage BACnet/N2 Thermostat

Johnson Controls, TEC3000 Color Series, Networked Thermostat, Dehumidification, Up to 2-Stage Control of RTUs, or Up to 3-Stage control of Heat Pumps with Economizers, White, TEC3630-14-000
$660.41 $1,232.85
Shipping calculated at checkout.

Delivery

In stock (78 units)

Usually ships next day

Calculated at checkout
Save Product

Description

You can monitor and program the wireless and field-selectable BACnet MS/TP or N2 networked thermostats remotely through the building automation system, to provide efficient space temperature control. The wireless thermostats feature a connection to the ZFR Pro Series Wireless Field Bus Systems. All models include a USB port configuration that reduces installation time by allowing simple backup and restore features from a USB drive, which enables rapid cloning of configuration between like units. The programming memory of all TEC3000 Series Thermostats is nonvolatile.

Product Specifications

Name Value
Category Zone and Room Controllers
Color White
Communication interface BACnet MS/TP or N2
Configuration Dehumidification
Description You can monitor and program the wireless and field-selectable BACnet MS/TP or N2 networked thermostats remotely through the building automation system, to provide efficient space temperature control. The wireless thermostats feature a connection to the ZFR Pro Series Wireless Field Bus Systems. All models include a USB port configuration that reduces installation time by allowing simple backup and restore features from a USB drive, which enables rapid cloning of configuration between like units. The programming memory of all TEC3000 Series Thermostats is nonvolatile.
Data Sheet Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Features and benefits {'Features_and_Benefits_1': 'Two configurable binary inputs', 'Features_and_Benefits_10': 'Full line of remote TE-6300 Series Temperature Sensors', 'Features_and_Benefits_2': 'Two or three configurable analog inputs', 'Features_and_Benefits_3': 'USB port configuration', 'Features_and_Benefits_4': 'Programmable in seven languages', 'Features_and_Benefits_5': 'Backlit full-color liquid crystal display (LCD)', 'Features_and_Benefits_6': 'Configurable touchscreen UI', 'Features_and_Benefits_7': 'Integral humidity sensor', 'Features_and_Benefits_8': 'Multiple fan configurations for fan coil equipment types', 'Features_and_Benefits_9': 'Mobile Access Portal (MAP) Gateway compatibility (MAP Release 4.0 or later)'}
Most popular Yes
Output type Up to 2-Stage Control of RTUs, or Up to 3-Stage control of Heat Pumps with Economizers
P21 delete flag false
Product category Thermostats & Controllers
Product subcategory Zone & Room Controllers
Restricted class id NULL
Restricted item false
Series Johnson Controls TEC3000
Short desc Johnson Controls, TEC3000 Color Series, Networked Thermostat, Dehumidification, Up to 2-Stage Control of RTUs, or Up to 3-Stage control of Heat Pumps with Economizers, White, TEC3630-14-000
Sku JCI-TEC363014000
Supplier part number TEC3630-14-000
Type Networked Thermostat
Ultra store sync us Yes
Vendor active Y
Voltage 19-30 VAC
Yorkland id TEC3630-14-000

Features and Benefits

{'Features_and_Benefits_1': 'Two configurable binary inputs', 'Features_and_Benefits_10': 'Full line of remote TE-6300 Series Temperature Sensors', 'Features_and_Benefits_2': 'Two or three configurable analog inputs', 'Features_and_Benefits_3': 'USB port configuration', 'Features_and_Benefits_4': 'Programmable in seven languages', 'Features_and_Benefits_5': 'Backlit full-color liquid crystal display (LCD)', 'Features_and_Benefits_6': 'Configurable touchscreen UI', 'Features_and_Benefits_7': 'Integral humidity sensor', 'Features_and_Benefits_8': 'Multiple fan configurations for fan coil equipment types', 'Features_and_Benefits_9': 'Mobile Access Portal (MAP) Gateway compatibility (MAP Release 4.0 or later)'}
