Honeywell  | SKU: MS8109F1210/U

MS8109F1210/U | Honeywell | Dampers & Actuators

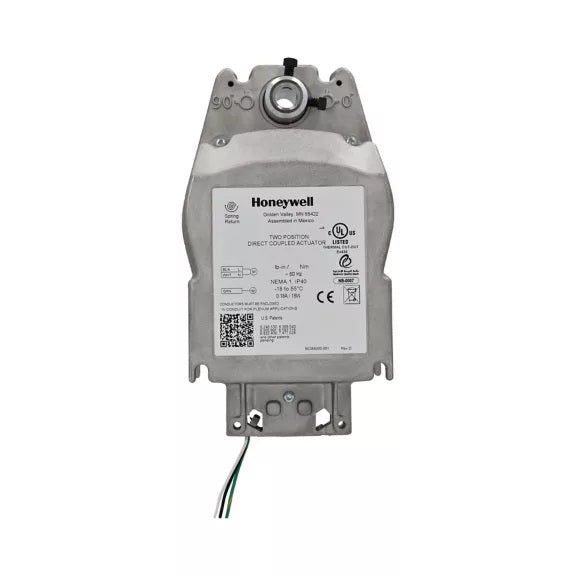

Honeywell, Fire and Smoke Actuator, Spring Return, 80 lbs-Inch, 24 VAC, 2-Position (SPST), 2x Auxiliary Switch MS8109F1210/U
$609.51 $1,246.23
Shipping calculated at checkout.

Delivery

In stock (8 units)

Usually ships next day

FREE SHIPPING

Description

The MS8109 Fast-Acting, Two-Position Actuators are spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control). The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation.

Product Specifications

Name Value
Category Damper
Configuration 2 SPST Aux Switches
Control type On/Off (2-Position)
Description The MS8109 Fast-Acting, Two-Position Actuators are spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control). The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation.
Data Sheet Download
Display name 1 Data Sheet
Display name 2 Installation Instructions
Enclosure type NEMA 1
Fail safe Spring Return
Features and benefits {'Features_and_Benefits_1': 'Reversible Mounting Facilitates Use in either Clockwise (cw) or Counter Clockwise (ccw) Spring Rotation', 'Features_and_Benefits_10': "Certifications: Designed to Operate Reliably in Smoke Control Systems Requiring Underwriter's Laboratories Inc UL555S Ratings up to 350 deg F; Non-UL Marked Models Available", 'Features_and_Benefits_2': 'Integral Spring Return Ensures Level of Return Torque', 'Features_and_Benefits_3': '15-Second Spring Return Timing', 'Features_and_Benefits_4': 'No Special Cycling Required During Long-Term Holding', 'Features_and_Benefits_5': 'No Audible Noise During Holding', 'Features_and_Benefits_6': 'Actuator Holds Rated Torque at Reduced Power Level', 'Features_and_Benefits_7': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_8': 'Housing Design Allows Flush Mounting to Damper', 'Features_and_Benefits_9': "Certifications: Designed to Operate Reliably in Smoke Control Systems Requiring Underwriter's Laboratories Inc UL555S Ratings up to 350 deg F; Non-UL Marked Models Available"}
P21 delete flag false
Power supply 24 VAC
Product category Dampers & Actuators
Product subcategory Fire & Smoke Actuators
Restricted class id NULL
Restricted item false
Rotation 95 Deg
Running time 15 Second
Short desc Honeywell, Fire and Smoke Actuator, Spring Return, 80 lbs-Inch, 24 VAC, 2-Position (SPST), 2x Auxiliary Switch MS8109F1210/U
Sku HWI-MS8109F1210U
Supplier part number MS8109F1210/U
Torque 80 in-lbs
Type Rotary Damper Actuator - Fail-Safe
Ultra store sync us Yes
Upc yorkland
Vendor active Y
Vendor enabled true
Yorkland id MS8109F1210/U

Features and Benefits

{'Features_and_Benefits_1': 'Reversible Mounting Facilitates Use in either Clockwise (cw) or Counter Clockwise (ccw) Spring Rotation', 'Features_and_Benefits_10': "Certifications: Designed to Operate Reliably in Smoke Control Systems Requiring Underwriter's Laboratories Inc UL555S Ratings up to 350 deg F; Non-UL Marked Models Available", 'Features_and_Benefits_2': 'Integral Spring Return Ensures Level of Return Torque', 'Features_and_Benefits_3': '15-Second Spring Return Timing', 'Features_and_Benefits_4': 'No Special Cycling Required During Long-Term Holding', 'Features_and_Benefits_5': 'No Audible Noise During Holding', 'Features_and_Benefits_6': 'Actuator Holds Rated Torque at Reduced Power Level', 'Features_and_Benefits_7': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_8': 'Housing Design Allows Flush Mounting to Damper', 'Features_and_Benefits_9': "Certifications: Designed to Operate Reliably in Smoke Control Systems Requiring Underwriter's Laboratories Inc UL555S Ratings up to 350 deg F; Non-UL Marked Models Available"}
