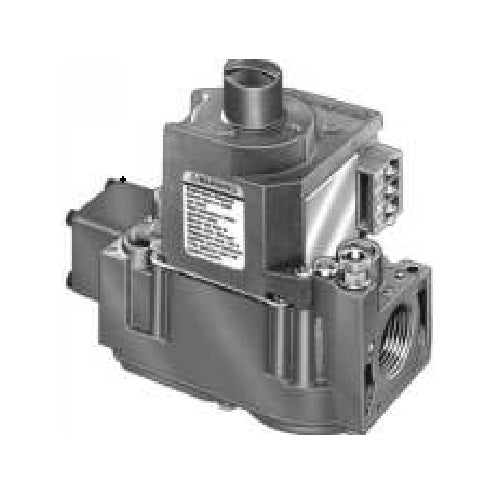

Gas Valves & Actuators | SKU: VR8304M4507/U

VR8304M4507/U | Resideo | Combustion & Flame Safety

Name: VR8304M4507/U
Brand: Resideo
SKU: RES-VR8304M4507U
Price: 345.80 USD
Availability: InStock

Single Stage, 24 VAC, Standard Opening, Intermittent Pilot Gas Valve, 3/4 x 3/4 Inch, Setpoint 3.5 Inch WC

$345.80 $497.08

Shipping calculated at checkout.

In stock (17 units)

Usually ships next day

FREE SHIPPING

Description

Combination gas control for use in 24 VAC gas-fired, intermittent pilot appliances with capacities from 30 to 415 cf/Hour.

Product Specifications

Name	Value
Capacity	At 1 Inch WC p.d. - 300,000 BTU/Hour: 30,000 BTU/Hour Minimum: 415,000 BTU/Hour Maximum Natural Gas
Category	Gas Valves
Configuration	Single Stage, Standard Opening
Data Sheet	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Enclosure nema rating	24 VAC 50/60 Hz
Features and benefits	Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure under Wide Fluctuations in Gas Supply Pressure \| Meet Codes Requiring Dual Safety Shutoff \| Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat; Closes when Call for Heat Ends \| Diaphragm-Operated Second Automatic Valve Opens Under Control of Regulator; Closes If Gas or Power Supply is Interrupted \| Controls Include Safety Shutoff, Manual Valve, Two Automatic Operators, Pressure Regulator and Pilot Adjustment \| Provide Two Automatic Valves \| Compact Size \| Use with S86F,H; S860D; S8600F,H; S8610 and S90A,B Control Modules \| All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control \| ON-OFF Lighting Sequence
Includes	Natural to LP Gas Conversion Kit; (2) 3/4 Inch x 1/2 Inch Reducer Bushings
In_stock	true
Margin	33
Most popular	Yes
P21 delete flag	false
Pressure regulator setting	3.5 Inch WC (0.87 kPa)
Product category	Combustion & Flame Safety
Product subcategory	Gas Valves & Actuators
Restricted class id	NULL
Restricted item	false
Series	Resideo
Short desc	Single Stage, 24 VAC, Standard Opening, Intermittent Pilot Gas Valve, 3/4 x 3/4 Inch, Setpoint 3.5 Inch WC
Size	3/4 x 3/4 Inch
Strategic_value	20
Supplier part number	VR8304M4507/U
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	Y

Features and Benefits

Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure under Wide Fluctuations in Gas Supply Pressure | Meet Codes Requiring Dual Safety Shutoff | Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat; Closes when Call for Heat Ends | Diaphragm-Operated Second Automatic Valve Opens Under Control of Regulator; Closes If Gas or Power Supply is Interrupted | Controls Include Safety Shutoff, Manual Valve, Two Automatic Operators, Pressure Regulator and Pilot Adjustment | Provide Two Automatic Valves | Compact Size | Use with S86F,H; S860D; S8600F,H; S8610 and S90A,B Control Modules | All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control | ON-OFF Lighting Sequence
