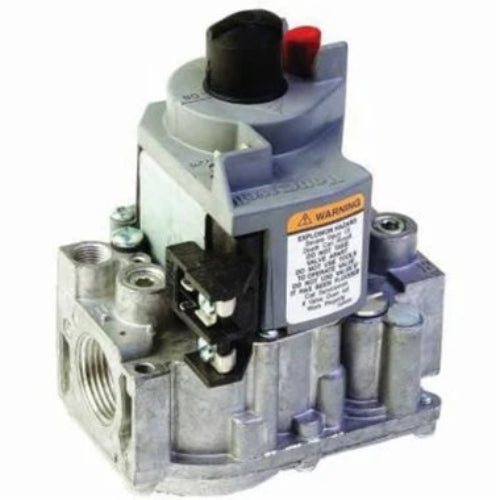

Gas Valves & Actuators | SKU: VR8300C4506/U

VR8300C4506/U | Resideo | Combustion & Flame Safety

Name: VR8300C4506/U
Brand: Resideo
SKU: RES-VR8300C4506U
Price: 491.39 USD
Availability: InStock

Single Stage, 24 VAC, Step Opening, Standing Pilot Gas Valve, 3/4 x 3/4 Inch, Step Rate 0.9 Inch WC, Full Rate 3.5 Inch WC

$491.39 $706.38

Shipping calculated at checkout.

In stock (22 units)

Usually ships next day

FREE SHIPPING

Description

Combination gas control for use in 24 VAC gas-fired, standing pilot appliances with capacities from 30 to 300 cf/Hour.

Product Specifications

Name	Value
Capacity	At 1 Inch WC p.d. - 200,000 BTU/Hour: 30,000 BTU/Hour Minimum: 300,000 BTU/Hour Maximum Natural Gas
Category	Gas Valves
Configuration	Step Opening
Data Sheet	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Enclosure nema rating	24 VAC 50/60 Hz
Features and benefits	Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure under Wide Fluctuations in Gas Supply Pressure \| Compatible with ECO Connector \| All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control \| Meets Codes Requiring Dual Safety Shut-Off \| Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat, Closes when Call for Heat Ends \| Application: Single Stage \| LITE-RITE (OFF-PILOT-ON) Lighting Sequence \| Diaphragm-Operated Second Automatic Valve Opens Under Control of Regulator; Closes If Gas or Power Supply is Interrupted \| Control Includes Safety Shutoff, Manual Valve, Two Automatic Operators, Pressure Regulator and Pilot Adjustment
Includes	Two 3/4 x 1/2 Inch Reducer Bushings
In_stock	true
Margin	46
Most popular	Yes
P21 delete flag	false
Pressure regulator setting	Step Setting: 0.9 Inch WC Non-Adjustable; Full Rate: 3.5 Inch WC (Full Rate: 0.87 kPa; Step Setting: 0.22 kPa)
Product category	Combustion & Flame Safety
Product subcategory	Gas Valves & Actuators
Restricted class id	NULL
Restricted item	false
Series	Resideo
Short desc	Single Stage, 24 VAC, Step Opening, Standing Pilot Gas Valve, 3/4 x 3/4 Inch, Step Rate 0.9 Inch WC, Full Rate 3.5 Inch WC
Size	3/4 x 3/4 Inch
Strategic_value	23
Supplier part number	VR8300C4506/U
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	Y
Yorkland id	VR8300C4506/U

Features and Benefits

Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure under Wide Fluctuations in Gas Supply Pressure | Compatible with ECO Connector | All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control | Meets Codes Requiring Dual Safety Shut-Off | Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat, Closes when Call for Heat Ends | Application: Single Stage | LITE-RITE (OFF-PILOT-ON) Lighting Sequence | Diaphragm-Operated Second Automatic Valve Opens Under Control of Regulator; Closes If Gas or Power Supply is Interrupted | Control Includes Safety Shutoff, Manual Valve, Two Automatic Operators, Pressure Regulator and Pilot Adjustment
