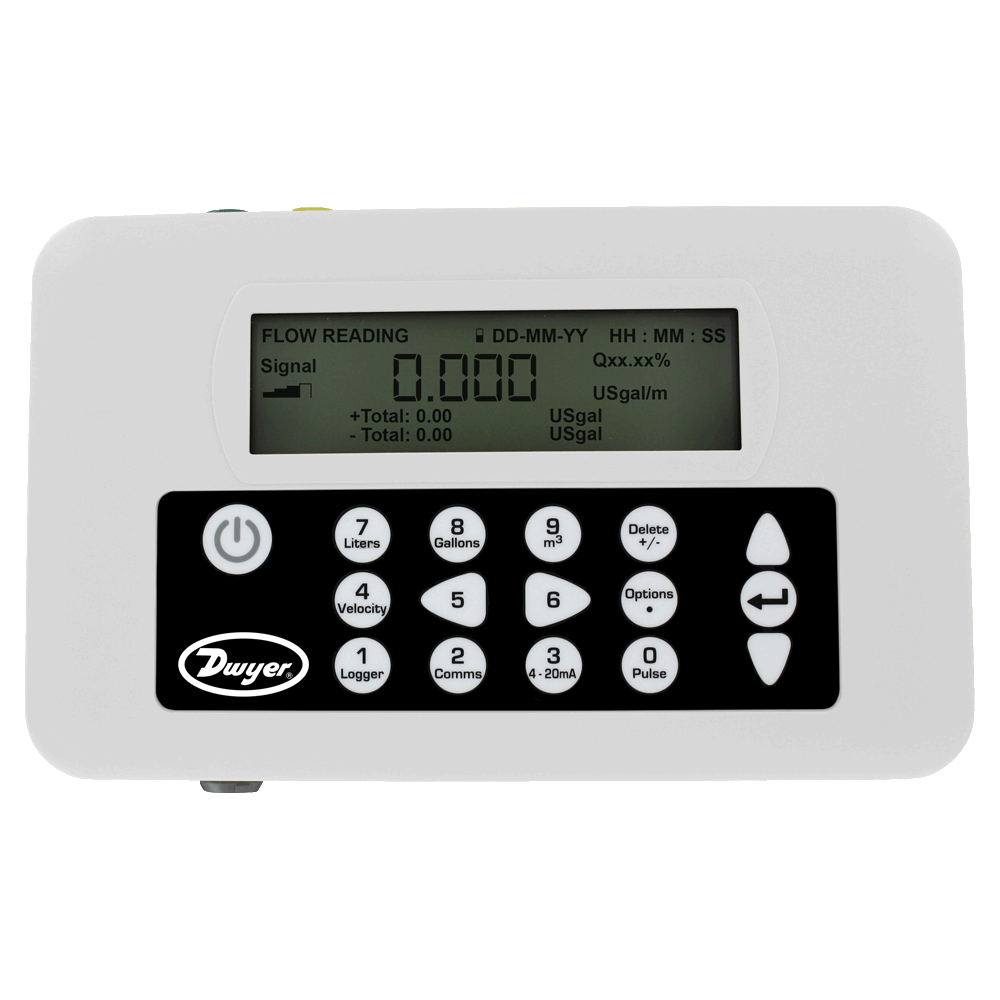

Dwyer, Portable Ultrasonic Flowmeter Kit Type A/B, 0.5 to 78 Inch (13 to 2000mm) Pipe Size, Transducers with Data Logger PUF-1001

$28,190.97

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The Series PUF Portable Ultrasonic Flowmeter Kit utilizes the transit-time difference for measuring flow rates in pipes non-invasively. It is a compact and lightweight instrument incorporating the latest electronics and signal processing technologies, realizing high performance and easy operation. This device is capable of 20 hours continuous operation with its built-in battery. The PUF comes with an IP67 rated carrying case with molded foam inserts to hold and protect all equipment against dust and water. The screen offers easy to read text with a convenient backlight for visual comfort. The efficient layout of the function keys add to this unit's easy to use programming. The unit comes with RS232 and USB connections to allow for easy connection to any personal computer or printer.

Product Specifications

Name	Value
Category	Flow Meters
Configuration	Data Logging Version
Data Sheet	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Features and benefits	Accuracy: +/- 0.5 to 2% of Flow Reading for Flow Rate > 0.66 Feet/Second (0.2 Meter/Second) and Pipe ID > 3 in (75 Millimeter). +/- 3% of Flow Reading for Flow Rate > 0.66 Feet/Second (0.2 Meter/Second) and Pipe ID in Range 0.5 to 3 in (13 to 75 Millimeter). +/- 6% of Flow Reading for Flow Rate < 0.66 Feet/Second (0.2 Meter/Second). \| Display: 240 x 64 Pixel Graphic Display, High Contrast Black on White with Backlight, Languages: English, French, German, Swedish, Italian, Spanish, Portuguese, Russian, Norwegian, and Dutch, 5.2 Inch W x 1.5 Inch H (132.1 x 38.1 Millimeter) \| Power Requirements: 9 to 24 VDC, (1) 5-Cell NiMH Battery, Internal, Factory Replaceable (Continuous Operation Time: 20 Hours with Back Light and Output Off), (Recharging Time: 6.5 Hours, Power Adapter Used) \| Range: 0.33 to 65.62 Feet/Second (0.1 to 20 Meter/Second) \| Kit Includes: Converter, Set of Transducers (Both Sets for Model PUF-1001), Transducer Holders, Set Transducer Cables (6.56 Feet (2 m)), USB, RS232, 4 to 20 mA Communication Cables, 12 VDC Power Supply, Ultrasonic, Coupling Grease, Set of Chains, Ruled Guide Rail, Test Block, Carrying Case \| Inputs: Lemo Connector Cable From Sensors \| Service: Homogeneous Liquids That Do Not Contain Air Bubbles Capable of Ultrasonic Wave Propagation \| Power Adapter: 110/240 VAC Adapter, UK,US, European Adapters Included
P21 delete flag	false
Product category	Flow
Product subcategory	Gas Flow Meters
Range	0.33 to 65.62 Feet/Second (0.1 to 20 Meter/Second)
Restricted class id	NULL
Restricted item	false
Scale	Digital
Series	Dwyer PUF Series
Short desc	Dwyer, Portable Ultrasonic Flowmeter Kit Type A/B, 0.5 to 78 Inch (13 to 2000mm) Pipe Size, Transducers with Data Logger PUF-1001
Size	0.5 to 78 Inch (13 to 2000mm) Pipe Size
Supplier part number	PUF-1001
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	true

Features and Benefits

Accuracy: +/- 0.5 to 2% of Flow Reading for Flow Rate > 0.66 Feet/Second (0.2 Meter/Second) and Pipe ID > 3 in (75 Millimeter). +/- 3% of Flow Reading for Flow Rate > 0.66 Feet/Second (0.2 Meter/Second) and Pipe ID in Range 0.5 to 3 in (13 to 75 Millimeter). +/- 6% of Flow Reading for Flow Rate < 0.66 Feet/Second (0.2 Meter/Second). | Display: 240 x 64 Pixel Graphic Display, High Contrast Black on White with Backlight, Languages: English, French, German, Swedish, Italian, Spanish, Portuguese, Russian, Norwegian, and Dutch, 5.2 Inch W x 1.5 Inch H (132.1 x 38.1 Millimeter) | Power Requirements: 9 to 24 VDC, (1) 5-Cell NiMH Battery, Internal, Factory Replaceable (Continuous Operation Time: 20 Hours with Back Light and Output Off), (Recharging Time: 6.5 Hours, Power Adapter Used) | Range: 0.33 to 65.62 Feet/Second (0.1 to 20 Meter/Second) | Kit Includes: Converter, Set of Transducers (Both Sets for Model PUF-1001), Transducer Holders, Set Transducer Cables (6.56 Feet (2 m)), USB, RS232, 4 to 20 mA Communication Cables, 12 VDC Power Supply, Ultrasonic, Coupling Grease, Set of Chains, Ruled Guide Rail, Test Block, Carrying Case | Inputs: Lemo Connector Cable From Sensors | Service: Homogeneous Liquids That Do Not Contain Air Bubbles Capable of Ultrasonic Wave Propagation | Power Adapter: 110/240 VAC Adapter, UK,US, European Adapters Included
