Flow  | SKU: PE-D-2

PE-D-2 | Dwyer | Flow

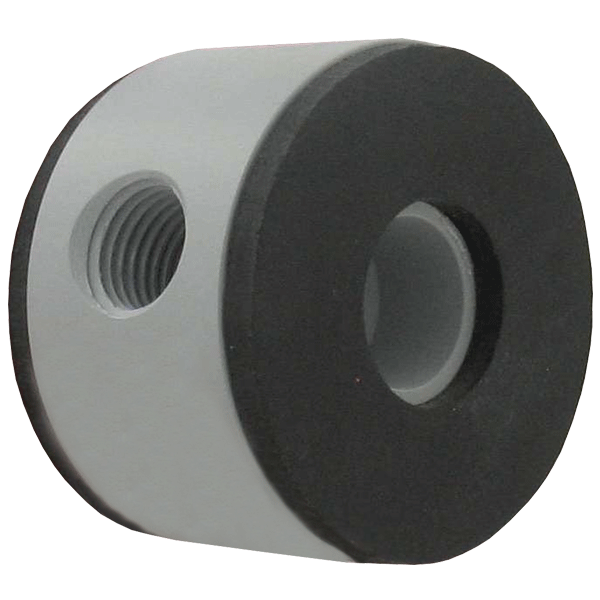

Dwyer, PVC Orifice Plate Flowmeter, 1-1/4 Inch Line Size, 0.700 Inch Bore, 0.51 Beta, Water Capacity: 100 Inch d.p. W/C, 17.48 GPM Flow, Air Capacity: 62.09 SCFM @ 14.7 psia, 99.75 SCFM @ 20 psig, 185.5 SCFM @ 100 psig, 1 lb PE-D-2
$618.74
Shipping calculated at checkout.

PE-D-2 is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

The Series PE Orifice Plate Flowmeter offers one-piece PVC construction incorporating a unique holder or carrier ring containing metering taps and integral gaskets. Unlike a standard orifice plate, the Series PE is a true primary element including the various components for differential pressure measurement. It was designed for use wherever there is an application for a conventional flow orifice plate. It can also be used in place of other primary differential producers for efficiency and cost effectiveness. The Series PE is available in line sizes from 1/2 Inch to 24 Inch and used for air and most gases. It meets or exceeds ASME, AGA and ISO standards

Product Specifications

Name Value
Capacity 100 Inch d.p. W/C, 17.48 GPM Flow | 62.09 SCFM @ 14.7 psia, 99.75 SCFM @ 20 psig, 185.5 SCFM @ 100 psig
Category Flow Meters
Configuration 1-1/4 Inch Line Size, 0.700 Inch Bore, 0.51 Beta
Data Sheet Download
Display name 1 Data Sheet
Display name 2 Installation Instructions
Features and benefits Assures Long Term Reliability and Accuracy | Proven Through a Wide Range of Applications for Accuracy and Energy Efficiency | Simplified Installation | Standard "Corner Tap" Configuration | Corrosion Free Material | Wetted Material: Monolithic (Single Piece) Constructed Entirely of Gray PVC for PE | Built in Metering Taps (1/4 Inch Female NPT STD) | Mounted with Standard Flanges
Material PVC, Buna-N Gaskets
P21 delete flag false
Product category Flow
Product subcategory Gas Flow Meters
Range Water: 100 Inch d.p. W/C, 17.48 GPM Flow, Air: 62.09 SCFM at 14.7 psia
Restricted class id NULL
Restricted item false
Series Dwyer OP PE TE Series
Short desc Dwyer, PVC Orifice Plate Flowmeter, 1-1/4 Inch Line Size, 0.700 Inch Bore, 0.51 Beta, Water Capacity: 100 Inch d.p. W/C, 17.48 GPM Flow, Air Capacity: 62.09 SCFM @ 14.7 psia, 99.75 SCFM @ 20 psig, 185.5 SCFM @ 100 psig, 1 lb PE-D-2
Size 1/4 Inch Female NPT
Supplier part number PE-D-2
Ultra store sync us Yes
Vendor active Y
Vendor enabled true

Features and Benefits

Assures Long Term Reliability and Accuracy | Proven Through a Wide Range of Applications for Accuracy and Energy Efficiency | Simplified Installation | Standard "Corner Tap" Configuration | Corrosion Free Material | Wetted Material: Monolithic (Single Piece) Constructed Entirely of Gray PVC for PE | Built in Metering Taps (1/4 Inch Female NPT STD) | Mounted with Standard Flanges
