Dampers & Actuators  | SKU: MN7505A2001/U

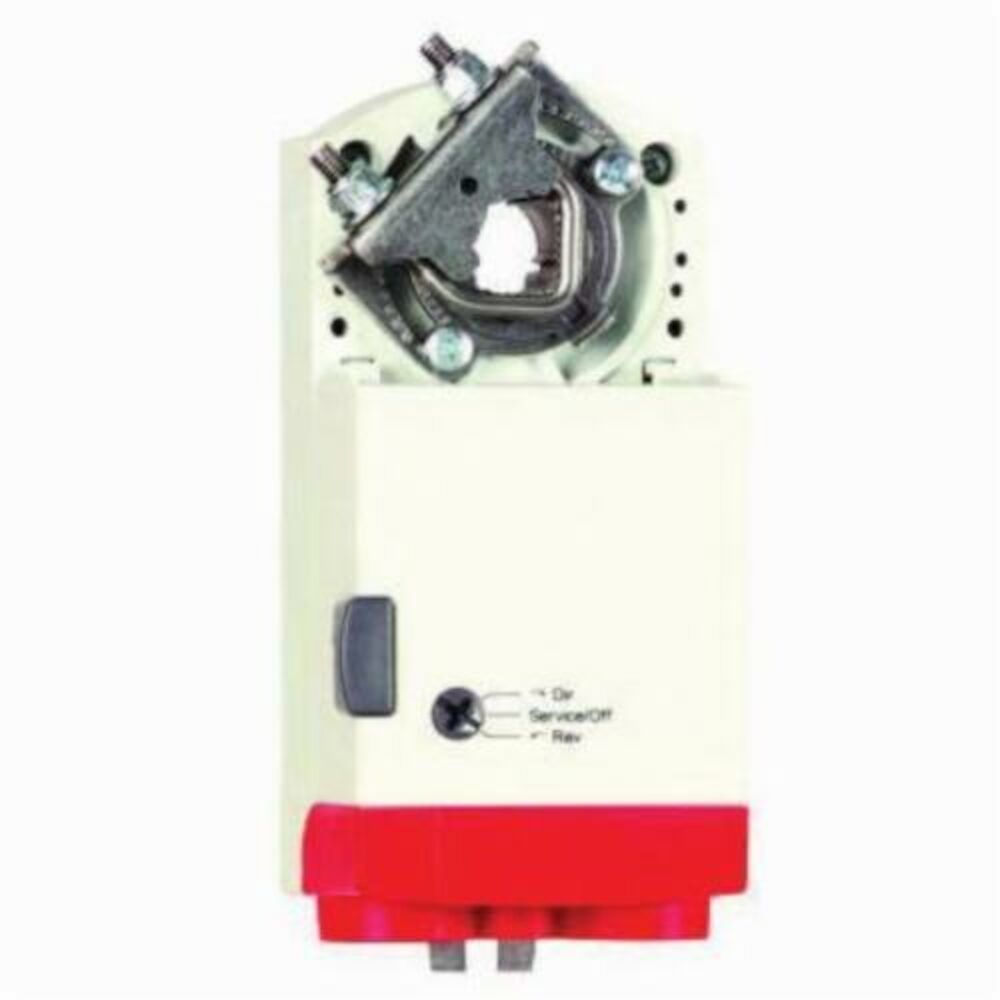

MN7505A2001/U | Honeywell | Dampers & Actuators

Damper Actuator, Direct Coupled, Non-Spring Return, 44 lb-in, 5 Nm, 24 VAC, Modulating (0/2-10 VDC), Floating
$240.03 $490.78
Shipping calculated at checkout.

Delivery

In stock (35 units)

Usually ships next day

FREE SHIPPING

Description

MN6105, MN7505 44 lb-in. (5 Nm), non-spring return, direct coupled, low voltage actuators that accepts adjustable modulating (0/2-10 Vdc) or on/off (SPDT) control are used within heating, ventilating, and air-conditioning (HVAC) systems. They can drive a variety of quarter-turn, final control elements for: air dampers, air handling units, ventilation flaps, louvers, and ball valves. The W model includes a 3-foot whip.

Product Specifications

Name Value
Category Damper
Configuration No Aux Switches
Description MN6105, MN7505 44 lb-in. (5 Nm), non-spring return, direct coupled, low voltage actuators that accepts adjustable modulating (0/2-10 Vdc) or on/off (SPDT) control are used within heating, ventilating, and air-conditioning (HVAC) systems. They can drive a variety of quarter-turn, final control elements for: air dampers, air handling units, ventilation flaps, louvers, and ball valves. The W model includes a 3-foot whip.
Data Sheet Download
Display name 2 Installation Instructions
Fail safe Non-Spring Return
Features and benefits {'Features_and_Benefits_1': 'Mounting: Direct Coupled', 'Features_and_Benefits_2': 'Rotational Stroke: 95 +/- 3 degrees', 'Features_and_Benefits_3': 'Rotational Stroke Adjustment: Dual Integral Adj. Stops (3 degree increments)', 'Features_and_Benefits_4': 'Environmental Rating: NEMA2', 'Features_and_Benefits_5': 'Declutch for manual adjustment', 'Features_and_Benefits_6': 'Adjustable mechanical end limits', 'Features_and_Benefits_7': 'Removable access cover for direct wiring', 'Features_and_Benefits_8': 'Function selection switch for selecting modulating or floating/2-position control'}
Manual override Declutch
Most popular Yes
P21 delete flag false
Product category Dampers & Actuators
Product subcategory Spring Return Damper Actuators
Restricted class id NULL
Restricted item false
Rotation 95 Deg
Running time 95 Second
Short desc Damper Actuator, Direct Coupled, Non-Spring Return, 44 lb-in, 5 Nm, 24 VAC, Modulating (0/2-10 VDC), Floating
Sku HWI-MN7505A2001U
Supplier part number MN7505A2001/U
Torque 44 in-lbs
Type Rotary Damper Actuator - Non-Fail Safe
Ultra store sync us Yes
Vendor enabled TRUE
Yorkland id MN7505A2001/U

Features and Benefits

{'Features_and_Benefits_1': 'Mounting: Direct Coupled', 'Features_and_Benefits_2': 'Rotational Stroke: 95 +/- 3 degrees', 'Features_and_Benefits_3': 'Rotational Stroke Adjustment: Dual Integral Adj. Stops (3 degree increments)', 'Features_and_Benefits_4': 'Environmental Rating: NEMA2', 'Features_and_Benefits_5': 'Declutch for manual adjustment', 'Features_and_Benefits_6': 'Adjustable mechanical end limits', 'Features_and_Benefits_7': 'Removable access cover for direct wiring', 'Features_and_Benefits_8': 'Function selection switch for selecting modulating or floating/2-position control'}
