Dampers & Actuators  | SKU: M9185D1004/U

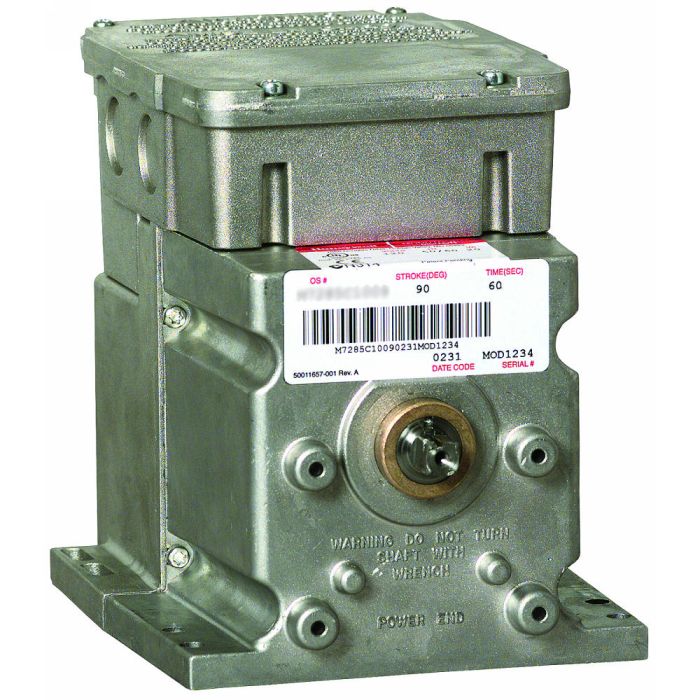

M9185D1004/U | Honeywell | HONEYWELL MOD-IV MOTOR

Honeywell Series 90 Modutrol IV Motor, Spring Return, 60 lbs-Inch, 24 VAC, Proportional (135 Ohm), Adjustable 90-160 deg, 30-60 Seconds M9185D1004/U
$1,994.01 $3,152.05
Shipping calculated at checkout.

Delivery

In stock (10 units)

Usually ships next day

Calculated at checkout
Save Product

Description

Series 90 Modutrol IV Motors are spring return modulating proportional control motors. These motors are used with controllers that provide a Series 90 output to operate dampers or valves.

Product Specifications

Name Value
Application Damper
Category Foot Mount
Description Series 90 Modutrol IV Motors are spring return modulating proportional control motors. These motors are used with controllers that provide a Series 90 output to operate dampers or valves.
Data Sheet Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Features and benefits {'Features_and_Benefits_1': 'Replaces M934A/D, M941, M944A/C/D, M945A/D/F, M954, M965, and M975 Motors', 'Features_and_Benefits_10': 'Certifications: UL Listed: File Number ED4436, Guide Number XAPX; CSA Certified: General Listing File Number LR1620, Guide 400-E', 'Features_and_Benefits_2': 'Integral Junction Box Provides NEMA 3 Weather Protection', 'Features_and_Benefits_3': 'Integral Spring Return Returns Motor to Normal Position when Power is Interrupted', 'Features_and_Benefits_4': 'Quick Connect Terminals are Standard - Screw Terminal Adapter is Available', 'Features_and_Benefits_5': 'Adapter Bracket for Matching Shaft Height of Older Motors is Available', 'Features_and_Benefits_6': 'Motors have Field Adjustable Stroke (90 deg to 160 deg)', 'Features_and_Benefits_7': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_8': 'Integral Auxiliary Switches are Available Factory Mounted, or Can be Field Added', 'Features_and_Benefits_9': 'Nominal Timing Standard of 30 Seconds (90 deg Stroke), and 60 Seconds (160 deg Stroke); Other Timings Available'}
P21 delete flag false
Power supply 24 VAC
Product category Dampers & Actuators
Product subcategory Spring Return Damper Actuators
Restricted class id NULL
Restricted item false
Rotation CW
Running time 30-60 Second
Series Honeywell
Short desc Honeywell Series 90 Modutrol IV Motor, Spring Return, 60 lbs-Inch, 24 VAC, Proportional (135 Ohm), Adjustable 90-160 deg, 30-60 Seconds M9185D1004/U
Sku HWI-M9185D1004U
Supplier part number M9185D1004/U
Torque 60 lbs-Inch
Type Spring Return
Ultra store sync us Yes
Upc yorkland
Vendor active Y
Yorkland id M9185D1004/U

Features and Benefits

{'Features_and_Benefits_1': 'Replaces M934A/D, M941, M944A/C/D, M945A/D/F, M954, M965, and M975 Motors', 'Features_and_Benefits_10': 'Certifications: UL Listed: File Number ED4436, Guide Number XAPX; CSA Certified: General Listing File Number LR1620, Guide 400-E', 'Features_and_Benefits_2': 'Integral Junction Box Provides NEMA 3 Weather Protection', 'Features_and_Benefits_3': 'Integral Spring Return Returns Motor to Normal Position when Power is Interrupted', 'Features_and_Benefits_4': 'Quick Connect Terminals are Standard - Screw Terminal Adapter is Available', 'Features_and_Benefits_5': 'Adapter Bracket for Matching Shaft Height of Older Motors is Available', 'Features_and_Benefits_6': 'Motors have Field Adjustable Stroke (90 deg to 160 deg)', 'Features_and_Benefits_7': 'Die-Cast Aluminum Housing', 'Features_and_Benefits_8': 'Integral Auxiliary Switches are Available Factory Mounted, or Can be Field Added', 'Features_and_Benefits_9': 'Nominal Timing Standard of 30 Seconds (90 deg Stroke), and 60 Seconds (160 deg Stroke); Other Timings Available'}
