Dampers & Actuators  | SKU: TFB24-S

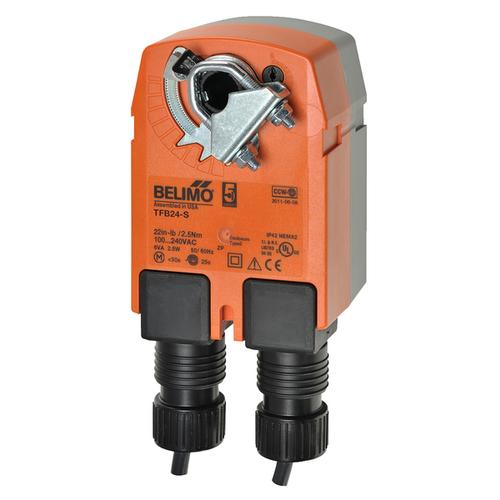

TFB24-S | Belimo | 22 in-lb [2.5 Nm] FS 24V On/Off 1 x SPDT

Belimo, Damper Actuator, 22 in-lb (2.5 Nm), Spring Return, AC/DC 24 V, On/Off, 1 x SPDT, TFB24-S
$244.35 $543.00
Shipping calculated at checkout.

Delivery

In stock (28 units)

Usually ships next day

Calculated at checkout
Save Product

Description

The upgraded TF Series meets challenges of smaller damper applications, up to 5.5 sq ft, so common in today €™s HVAC systems and equipment, including rooftop units, fan shutters, unit ventilators, and fan coil units.

Product Specifications

Name Value
Category Damper
Configuration 1 SPDT Aux Switch
Control input On/Off (2-Position)
Control type On/Off (2-Position)
Description The upgraded TF Series meets challenges of smaller damper applications, up to 5.5 sq ft, so common in today €™s HVAC systems and equipment, including rooftop units, fan shutters, unit ventilators, and fan coil units.
Data Sheet Download PDF
Installation Guide Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Electrical connection Cable
Enclosure type NEMA 2
Fail safe Spring Return
Features and benefits {'Features_and_Benefits_1': 'Spring return', 'Features_and_Benefits_2': '(2) 3 ft, 18 GA appliance cables with 1/2" conduit connectors', 'Features_and_Benefits_3': '22 in-lb [2.5 Nm]'}
Most popular Yes
P21 delete flag false
Power consumption (holding) 1.3 W
Power consumption (running) 2.5 W
Power supply 24 VAC/VDC
Product category Dampers & Actuators
Product subcategory Spring Return Damper Actuators
Restricted class id NULL
Restricted item false
Rotation Reversible with cw/ccw mounting
Running time Less Than 75 Second
Running time fail safe <25 s
Shaft diameter 1/4...1/2" round, centers on 1/2"
Short desc Belimo, Damper Actuator, 22 in-lb (2.5 Nm), Spring Return, AC/DC 24 V, On/Off, 1 x SPDT, TFB24-S
Sku BEL-TFB24S
Supplier part number TFB24-S
Torque 22 in-lbs
Type Rotary Damper Actuator - Fail-Safe
Ultra store sync us Yes
Vendor active Y
Yorkland id TFB24-S

Features and Benefits

{'Features_and_Benefits_1': 'Spring return', 'Features_and_Benefits_2': '(2) 3 ft, 18 GA appliance cables with 1/2" conduit connectors', 'Features_and_Benefits_3': '22 in-lb [2.5 Nm]'}
