Dampers & Actuators  | SKU: LMB24-SR

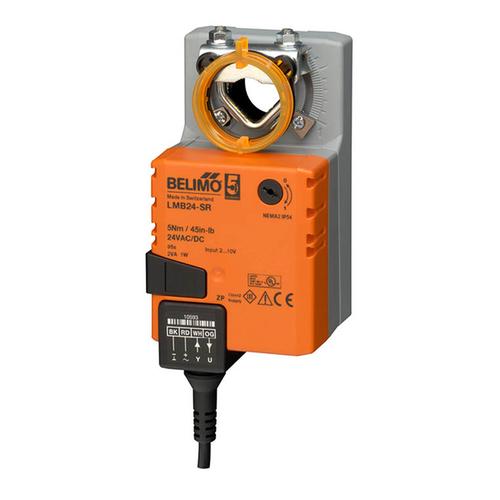

LMB24-SR | Belimo | 45 in-lb [5 Nm] NFS 24V 2-10V Mod

Belimo, Damper Actuator, 45 in-lb (5 Nm), Non Fail-Safe, AC/DC 24 V, 2...10 V, modulating, LMB24-SR
$201.61 $448.00
Shipping calculated at checkout.

Delivery

In stock (135 units)

Usually ships next day

Calculated at checkout
Save Product

Description

The LMB24-SR €¦ actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator €™s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode. The LMB series provides 95 degree of rotation and a visual indicator indicates position of the actuator. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover.

Product Specifications

Name Value
Category Damper
Control input Analog / Proportional
Control type 0-20 VDC
Description The LMB24-SR €¦ actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator €™s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode. The LMB series provides 95 degree of rotation and a visual indicator indicates position of the actuator. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover.
Data Sheet Download PDF
Installation Guide Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Electrical connection Cable
Enclosure type NEMA 2
Fail safe Non Fail-Safe
Features and benefits {'Features_and_Benefits_1': 'Position Feedback - 2 to 10 VDC, 0.5 mA max', 'Features_and_Benefits_2': '18 GA plenum rated cable with 1/2" conduit connector protected NEMA 2 (IP54) 3ft [1m] 10 ft [3m] and 16 ft [5m]', 'Features_and_Benefits_3': '45 in-lb of torque', 'Features_and_Benefits_4': 'running time of 95 seconds', 'Features_and_Benefits_5': '95 degree angle of rotation'}
Manual override External push button
Most popular Yes
P21 delete flag false
Power consumption (holding) 0.4 W
Power consumption (running) 1.5 W
Power supply 24 VAC/VDC
Product category Dampers & Actuators
Product subcategory Non-Spring Return Damper Actuators
Restricted class id NULL
Restricted item false
Rotation 95 Deg
Running time 95 Second
Shaft diameter 1/4...5/8" round, centers on 5/8", 3/4" clamp available
Short desc Belimo, Damper Actuator, 45 in-lb (5 Nm), Non Fail-Safe, AC/DC 24 V, 2...10 V, modulating, LMB24-SR
Sku BEL-LMB24SR
Supplier part number LMB24-SR
Torque 45 in-lbs
Type Rotary Damper Actuator - Non-Fail Safe
Ultra store sync us Yes
Vendor active Y
Vendor enabled true
Yorkland id LMB24-SR

Features and Benefits

{'Features_and_Benefits_1': 'Position Feedback - 2 to 10 VDC, 0.5 mA max', 'Features_and_Benefits_2': '18 GA plenum rated cable with 1/2" conduit connector protected NEMA 2 (IP54) 3ft [1m] 10 ft [3m] and 16 ft [5m]', 'Features_and_Benefits_3': '45 in-lb of torque', 'Features_and_Benefits_4': 'running time of 95 seconds', 'Features_and_Benefits_5': '95 degree angle of rotation'}
