Dampers & Actuators  | SKU: AFB24-S

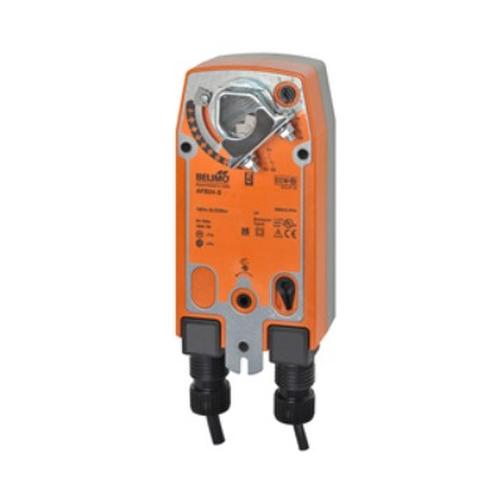

AFB24-S | Belimo | 180 in-lb FS 24V On/Off 2xAUX

Belimo, Damper Actuator, 180 in-lb (20 Nm), Spring Return, AC/DC 24 V, On/Off, 2 x SPDT, AFB24-S
$454.05 $1,009.00
Shipping calculated at checkout.

Delivery

In stock (92 units)

Usually ships next day

Calculated at checkout
Save Product

Description

Belimo fail-safe damper actuators provide a comprehensive torque offering from 22 to 1400 in-lb torque with direct-coupled, rotary or linear travel that can handle many HVAC applications. Fail-safe actuators use brushless DC motor technology controlled by an Application Specific Integrated Circuit (ASIC) to provide stall protection, lower power consumption, and higher efficiency, with smaller transformer sizing. A variety of accessories are available to increase application flexibility with more options in mounting and commissioning.

Product Specifications

Name Value
Category Damper
Configuration 2 SPDT Switches
Control input On/Off
Control type On/Off
Data Sheet Download PDF
Installation Guide Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Electrical connection Cable
Enclosure type NEMA 2
Fail safe Spring Return
Features and benefits 24V AC/DC Voltage | Reversible rotation with cw/ccw mounting | (2) 3 ft, 18 GA appliance cables with 1/2" conduit connectors | 75 sec run time | Spring return actuator
Manual override 5mm Hex Crank (3/16" Allen), Supplied
Most popular Yes
P21 delete flag false
Power consumption (holding) 2.5 W
Power consumption (running) 5 W
Power supply 24 VAC/VDC
Product category Dampers & Actuators
Product subcategory Spring Return Damper Actuators
Restricted class id NULL
Restricted item false
Rotation Reversible with cw/ccw mounting | 95 Deg
Running time Less Than 75 Second
Running time fail safe <20 s
Shaft diameter 1/2...1.05" round, centers on 1/2" and 3/4" with insert, 1.05" without insert
Short desc Belimo, Damper Actuator, 180 in-lb (20 Nm), Spring Return, AC/DC 24 V, On/Off, 2 x SPDT, AFB24-S
Supplier part number AFB24-S
Torque 180 in-lbs
Ultra store sync us Yes
Vendor active Y
Vendor enabled true
Yorkland id AFB24-S

Features and Benefits

24V AC/DC Voltage | Reversible rotation with cw/ccw mounting | (2) 3 ft, 18 GA appliance cables with 1/2" conduit connectors | 75 sec run time | Spring return actuator
