Dampers & Actuators  | SKU: AFB24-MFT

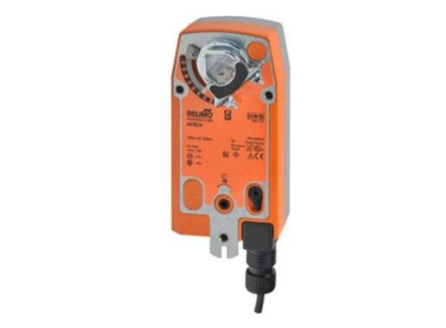

AFB24-MFT | Belimo | 180 in-lb FS 24V 2-10V MFT/Prog

Belimo, Damper Actuator, 180 in-lb (20 Nm), Spring Return, AC/DC 24 V, 2...10 V, MFT/programmable, AFB24-MFT
$522.46 $1,161.00
Shipping calculated at checkout.

Delivery

In stock (82 units)

Usually ships next day

Calculated at checkout
Save Product

Description

Belimo fail-safe damper actuators provide a comprehensive torque offering from 22 to 1400 in-lb torque with direct-coupled, rotary or linear travel that can handle many HVAC applications. Fail-safe actuators use brushless DC motor technology controlled by an Application Specific Integrated Circuit (ASIC) to provide stall protection, lower power consumption, and higher efficiency, with smaller transformer sizing. A variety of accessories are available to increase application flexibility with more options in mounting and commissioning.

Product Specifications

Name Value
Category Damper
Control input Modulating (0–10V / 4–20mA / Configurable)
Control type Modulating (0–10V / 4–20mA / Configurable)
Description Belimo fail-safe damper actuators provide a comprehensive torque offering from 22 to 1400 in-lb torque with direct-coupled, rotary or linear travel that can handle many HVAC applications. Fail-safe actuators use brushless DC motor technology controlled by an Application Specific Integrated Circuit (ASIC) to provide stall protection, lower power consumption, and higher efficiency, with smaller transformer sizing. A variety of accessories are available to increase application flexibility with more options in mounting and commissioning.
Data Sheet Download PDF
Installation Guide Download PDF
Display name 1 Data Sheet
Display name 2 Installation Instructions
Electrical connection Cable
Enclosure type NEMA 2
Fail safe Spring Return
Features and benefits {'Features_and_Benefits_1': 'Position Feedback: 2 to 10 VDC, 0.5 mA max, VDC variable', 'Features_and_Benefits_2': '3 ft, 18 GA appliance cable, 1/2" conduit connector', 'Features_and_Benefits_3': 'Reversible rotation with cw/ccw mounting', 'Features_and_Benefits_4': 'MFT/Programmable control type', 'Features_and_Benefits_5': 'AC/DC 24 Voltage'}
Manual override 5mm Hex Crank (3/16" Allen), Supplied
Most popular Yes
P21 delete flag false
Power consumption (holding) 3 W
Power consumption (running) 7.5 W
Power supply 24 VAC/VDC
Product category Dampers & Actuators
Product subcategory Spring Return Damper Actuators
Restricted class id NULL
Restricted item false
Rotation Reversible with cw/ccw mounting
Running time 150 Second/90 deg
Running time fail safe <20 s
Shaft diameter 1/2...1.05" round, centers on 1/2" and 3/4" with insert, 1.05" without insert
Short desc Belimo, Damper Actuator, 180 in-lb (20 Nm), Spring Return, AC/DC 24 V, 2...10 V, MFT/programmable, AFB24-MFT
Sku BEL-AFB24MFT
Supplier part number AFB24-MFT
Torque 180 in-lbs
Type Rotary Damper Actuator - Fail-Safe
Ultra store sync us Yes
Vendor active Y
Yorkland id AFB24-MFT

Features and Benefits

{'Features_and_Benefits_1': 'Position Feedback: 2 to 10 VDC, 0.5 mA max, VDC variable', 'Features_and_Benefits_2': '3 ft, 18 GA appliance cable, 1/2" conduit connector', 'Features_and_Benefits_3': 'Reversible rotation with cw/ccw mounting', 'Features_and_Benefits_4': 'MFT/Programmable control type', 'Features_and_Benefits_5': 'AC/DC 24 Voltage'}
