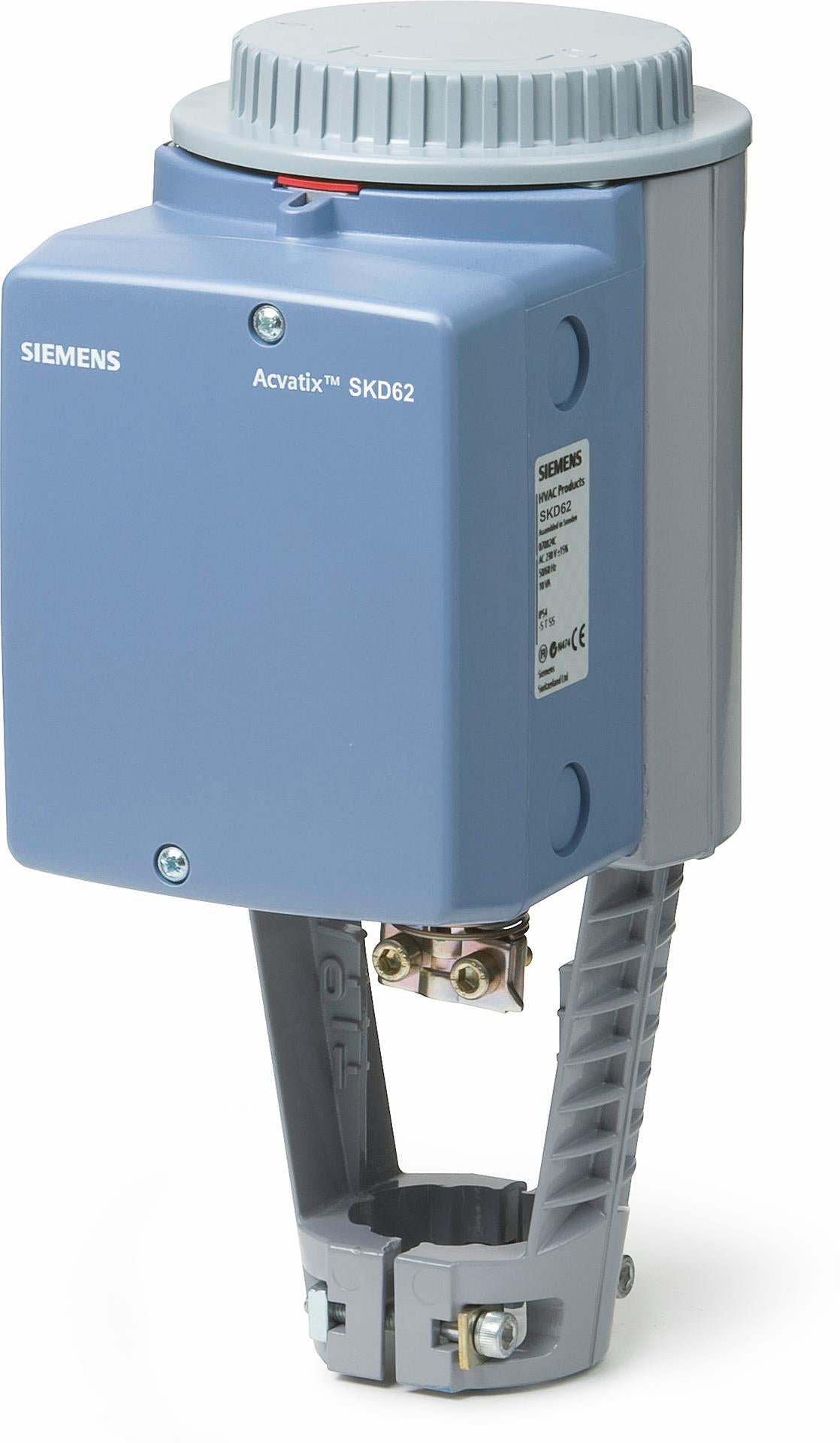

SKD62U | Siemens | Control Valves & Actuators

The Flowrite SKD Valve Actuator is used with Flowrite and other standard valves with a 3/4 Inch stroke. This electronic valve actuator requires a 24 VAC supply to provide a 0 to 10 VDC or 4 to 20 mA proportional control signal to the valve. Normally closed and 3-way upper port nominal force is 225 lbs-Inch (1000N); normally open and 3-way bypass port is 258 lbs-Inch (1150N). Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, and spring return functionality.
