Belimo  | SKU: AMB24-3-S

AMB24-3-S | Belimo | Dampers & Actuators

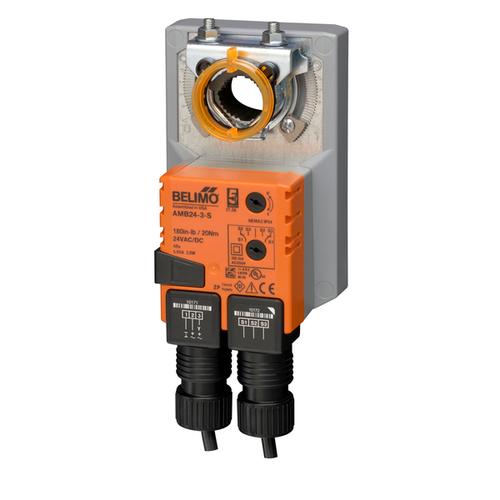

Belimo, Damper Actuator, 180 in-lb (20 Nm), Non Fail-Safe, AC/DC 24 V, On/Off, Floating point, 1 x SPDT, AMB24-3-S
$364.50 $810.00
Shipping calculated at checkout.

Delivery

In stock (7 units)

Usually ships next day

FREE SHIPPING

Description

The AMB actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp, self-centered default. The actuator provides 95 degree of rotation and a visual indicator indicates position of the actuator. The actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator's rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition.

Product Specifications

Name Value
Category Damper
Configuration 1 SPDT Aux Switch
Control input On/Off/Floating Point
Control type Floating / 3-Point
Description The AMB actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp, self-centered default. The actuator provides 95 degree of rotation and a visual indicator indicates position of the actuator. The actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator's rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition.
Data Sheet Download
Installation Guide Download
Display name 1 Data Sheet
Display name 2 Installation Instructions
Electrical connection Cable
Enclosure type NEMA 2
Fail safe Non Fail-Safe
Features and benefits {'Features_and_Benefits_2': '3 ft, 18 GA appliance rated cable with 1/2" conduit connector protected NEMA 2 (IP54)', 'Features_and_Benefits_3': '5.5 VA (class 2 power source)', 'Features_and_Benefits_5': 'AMB24-3-S'}
Manual override External push button
P21 delete flag false
Power consumption (holding) 0.5 W
Power consumption (running) 2.5 W
Power supply 24 VAC/VDC
Product category Dampers & Actuators
Product subcategory Non-Spring Return Damper Actuators
Restricted class id NULL
Restricted item false
Rotation Selectable with switch
Running time 95 Second
Shaft diameter 1/2...1.05" round, centers on 1/2" and 3/4" with insert, 1.05" without insert
Short desc Belimo, Damper Actuator, 180 in-lb (20 Nm), Non Fail-Safe, AC/DC 24 V, On/Off, Floating point, 1 x SPDT, AMB24-3-S
Sku BEL-AMB243S
Supplier part number AMB24-3-S
Torque 180 in-lbs
Type Rotary Damper Actuator - Non-Fail Safe
Ultra store sync us Yes
Vendor active Y
Vendor enabled Y
Yorkland id AMB24-3-S

Features and Benefits

{'Features_and_Benefits_2': '3 ft, 18 GA appliance rated cable with 1/2" conduit connector protected NEMA 2 (IP54)', 'Features_and_Benefits_3': '5.5 VA (class 2 power source)', 'Features_and_Benefits_5': 'AMB24-3-S'}
