BAS Controllers | SKU: RAC18-IP

RAC18-IP | iSMA Controlli | Free programable Room Application

Name: RAC18-IP | iSMA Controlli | Free programable Room Application
Brand: iSMA Controlli
SKU: ISC-RAC18IP
Price: 435.00 USD
Availability: InStock

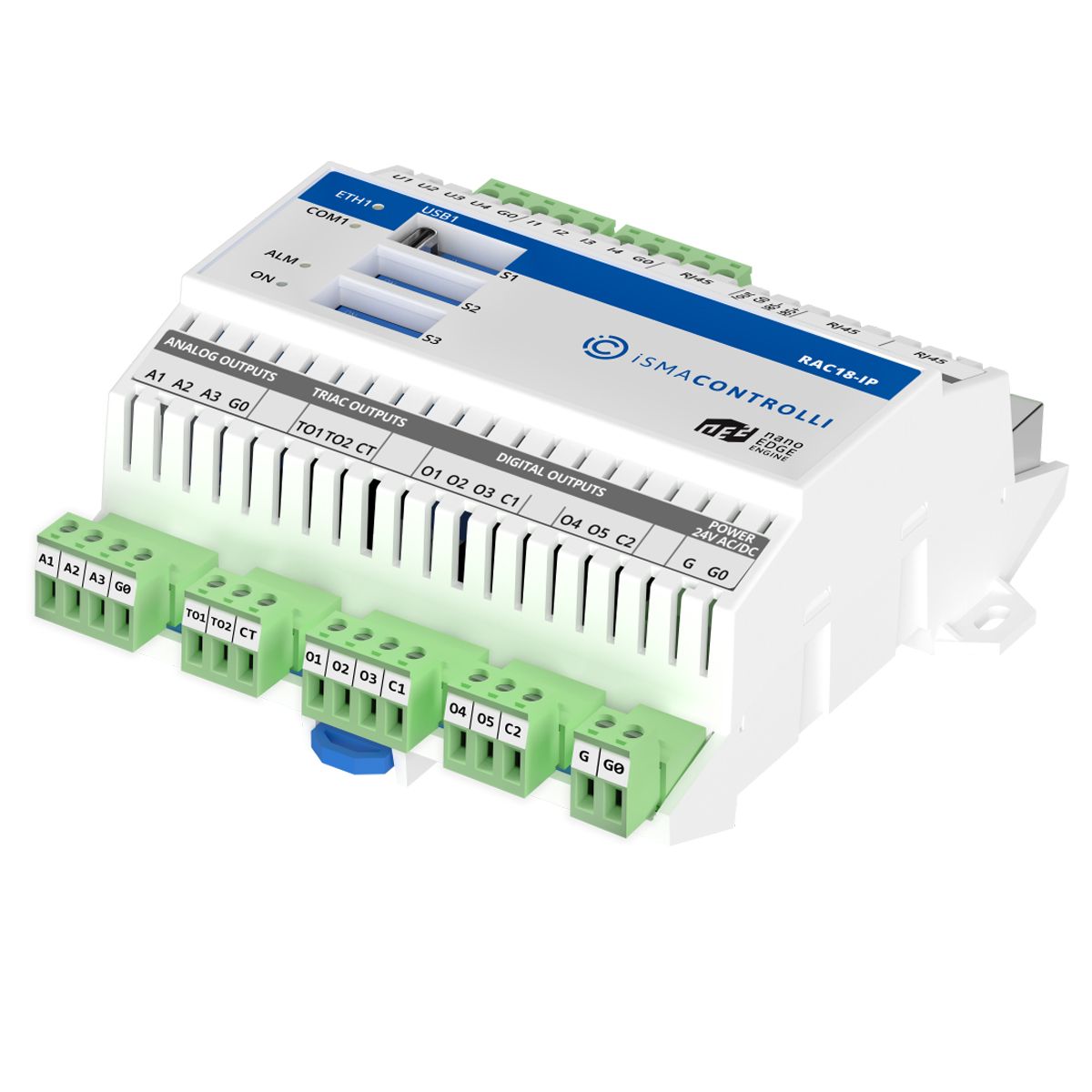

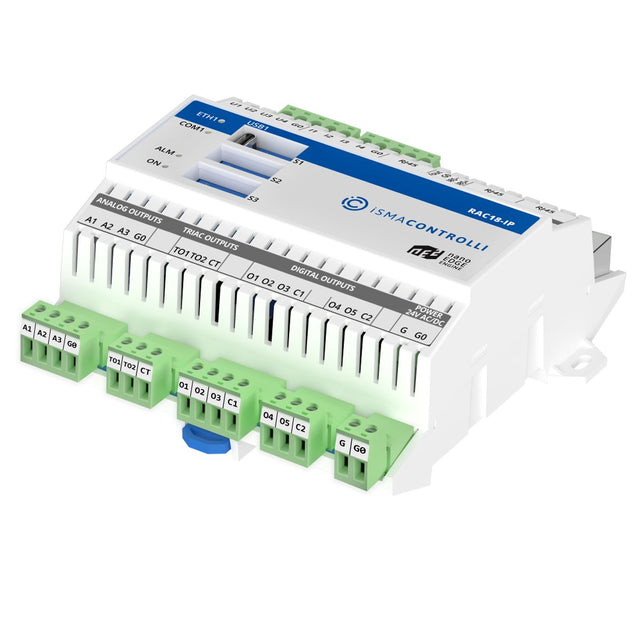

iSMA Controlli Freely Programmable Room Application Controller RAC18 with 4UI, 4DI, 5DO, 3AO, 2TO, 1 x RS485, 1 x USB and 2 Fail-Safe Protected Ethernet Ports. Power supply 24 VAC/DC RAC18-IP

$435.00 $1,087.00

Shipping calculated at checkout.

In stock (8 units)

Usually ships next day

Calculated at checkout

Description

The RAC18-IP controller is a multifunctional device providing comfort in a single room or a zone in the building. Onboard 18 I/Oâ€™s with Ethernet and serial ports make the controller a versatile system for comfort management, light and blind control, integration and monitoring. Powerful, IoT ready nano EDGE ENGINE allows unprecedented capabilities for a microcontroller-based device. Take advantage of a time-saving automatic BACnet exposure, real-time programming, and cloud connectivity.

Product Specifications

Name	Value
Category	BAS Controllers
Data Sheet	Download
Display name 1	Data Sheet
Display name 2	Installation Instructions
Features and benefits	Built-in real-time clock (RTC) \| Highest performing ARM Cortex-M7 \| 2 Triac Outputs - The controller is equipped with two triac outputs that can be used for heating and cooling thermal valve actuators. Outputs can be connected to actuators with a 24 V AC power supply. Triac outputs can work as typical binary outputs for binary temperature control or with PWM modulation up to 0.5 A load. \| 2 fail-safe protected Ethernet interfaces with a built-in switch \| RS485 interface \| USB type C interface \| 4 Digital Inputs - Dry contact inputs - made for monitoring. 100 Hz fast pulse counter with override function saves the real-time values to the non-volatile memory of the controller. \| 3 Analog Outputs - 0-10 V DC control with 10 mA accuracy, PWM modes, and a maximum load of up to 20 mA to power external relays makes the output suitable for a variety of scenarios. \| 5 Digital Outputs - Digital outputs equipped with normally open 3A relays allow for direct control without additional relays. \| 4 Universal Inputs - Support for over 20 types of temperature sensors and voltage, resistance, current, and dry contact measurements on each universal input.
P21 delete flag	false
Product category	BAS Controllers
Product subcategory	Programmable Controllers
Restricted class id	NULL
Restricted item	false
Short desc	iSMA Controlli Freely Programmable Room Application Controller RAC18 with 4UI, 4DI, 5DO, 3AO, 2TO, 1 x RS485, 1 x USB and 2 Fail-Safe Protected Ethernet Ports. Power supply 24 VAC/DC RAC18-IP
Supplier part number	RAC18-IP
Ultra store sync us	Yes
Vendor active	Y
Yorkland id	RAC18-IP

Features and Benefits

Built-in real-time clock (RTC) | Highest performing ARM Cortex-M7 | 2 Triac Outputs - The controller is equipped with two triac outputs that can be used for heating and cooling thermal valve actuators. Outputs can be connected to actuators with a 24 V AC power supply. Triac outputs can work as typical binary outputs for binary temperature control or with PWM modulation up to 0.5 A load. | 2 fail-safe protected Ethernet interfaces with a built-in switch | RS485 interface | USB type C interface | 4 Digital Inputs - Dry contact inputs - made for monitoring. 100 Hz fast pulse counter with override function saves the real-time values to the non-volatile memory of the controller. | 3 Analog Outputs - 0-10 V DC control with 10 mA accuracy, PWM modes, and a maximum load of up to 20 mA to power external relays makes the output suitable for a variety of scenarios. | 5 Digital Outputs - Digital outputs equipped with normally open 3A relays allow for direct control without additional relays. | 4 Universal Inputs - Support for over 20 types of temperature sensors and voltage, resistance, current, and dry contact measurements on each universal input.
